Humboldt HM-3000.3F Digital MasterLoader User Manual
Page 12

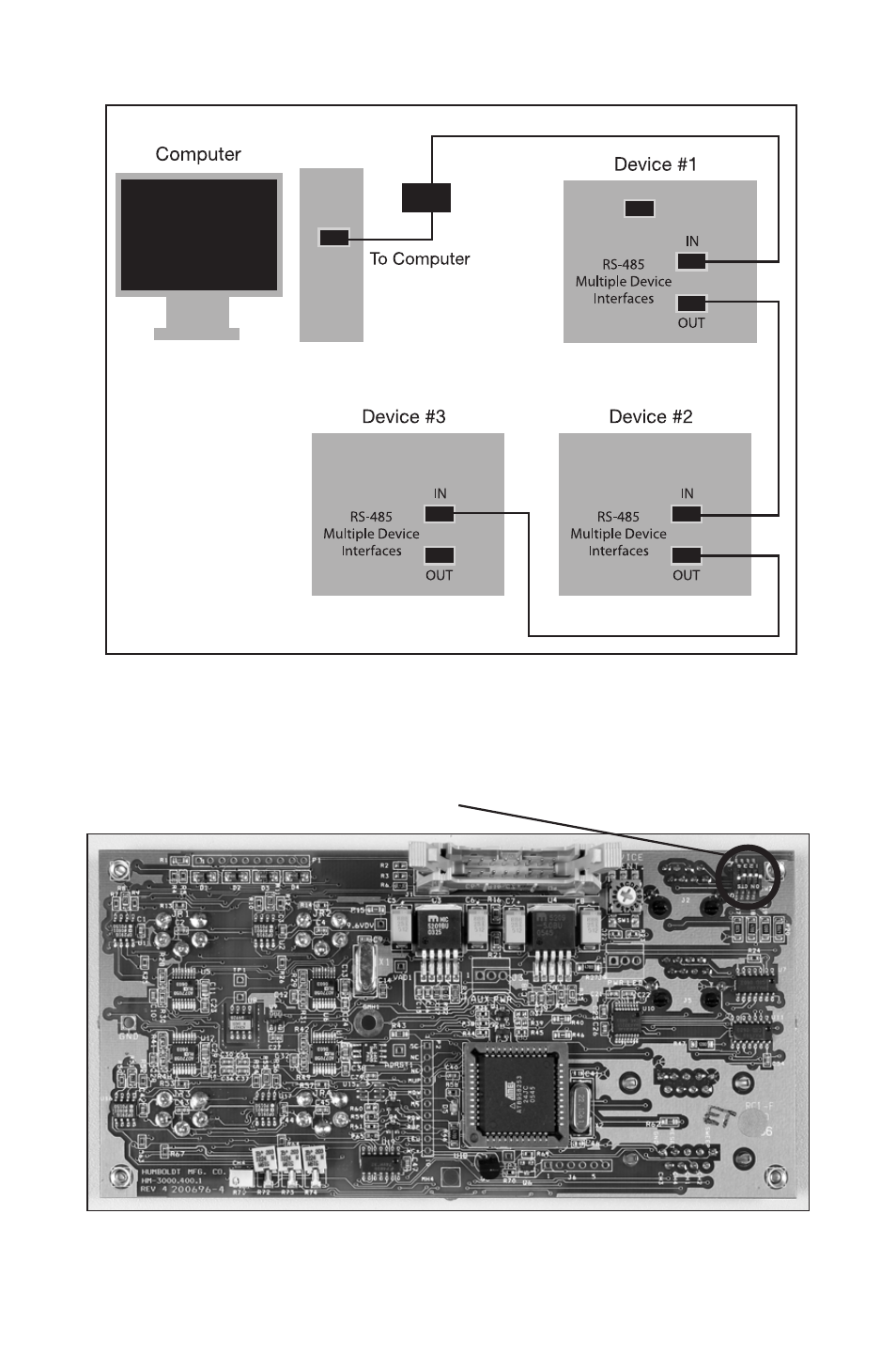

Figure 8. Diagram illustrating computer and multiple device connections.
CAT 5 Cable
RS-232 to
RS-485
converter
(HM-000375)
Figure 9. Back Panel electronic board showing location of Dip switches
for setting Computer connections. For single device setups, set
Dip Switch #4 to on (default setting). For multiple device setups,
set Dip Switch #4 to off.
