Computer connection – Humboldt HM-3000.3F Digital MasterLoader User Manual
Page 10
Computer Connection
Single Device Connection
The HM-3000 can be connected to a PC computer to take advantage of
Humboldt’s HMTS software capabilities, conduct real time data logging
and enhanced report generation. This is accomplished via the RS-232 port
on the back panel of the machine (refer to Figures 7 & 8.). Use a RS-232
cable (supplied) and attach it between the computer’s RS-232 port and
the HM-3000.
The minimum compatible computer configuration is a PC with Pentium III
800 MHz processor, 512 MB of RAM and a 40GB hard drive. Windows 2000
or XP with SP2 or later.

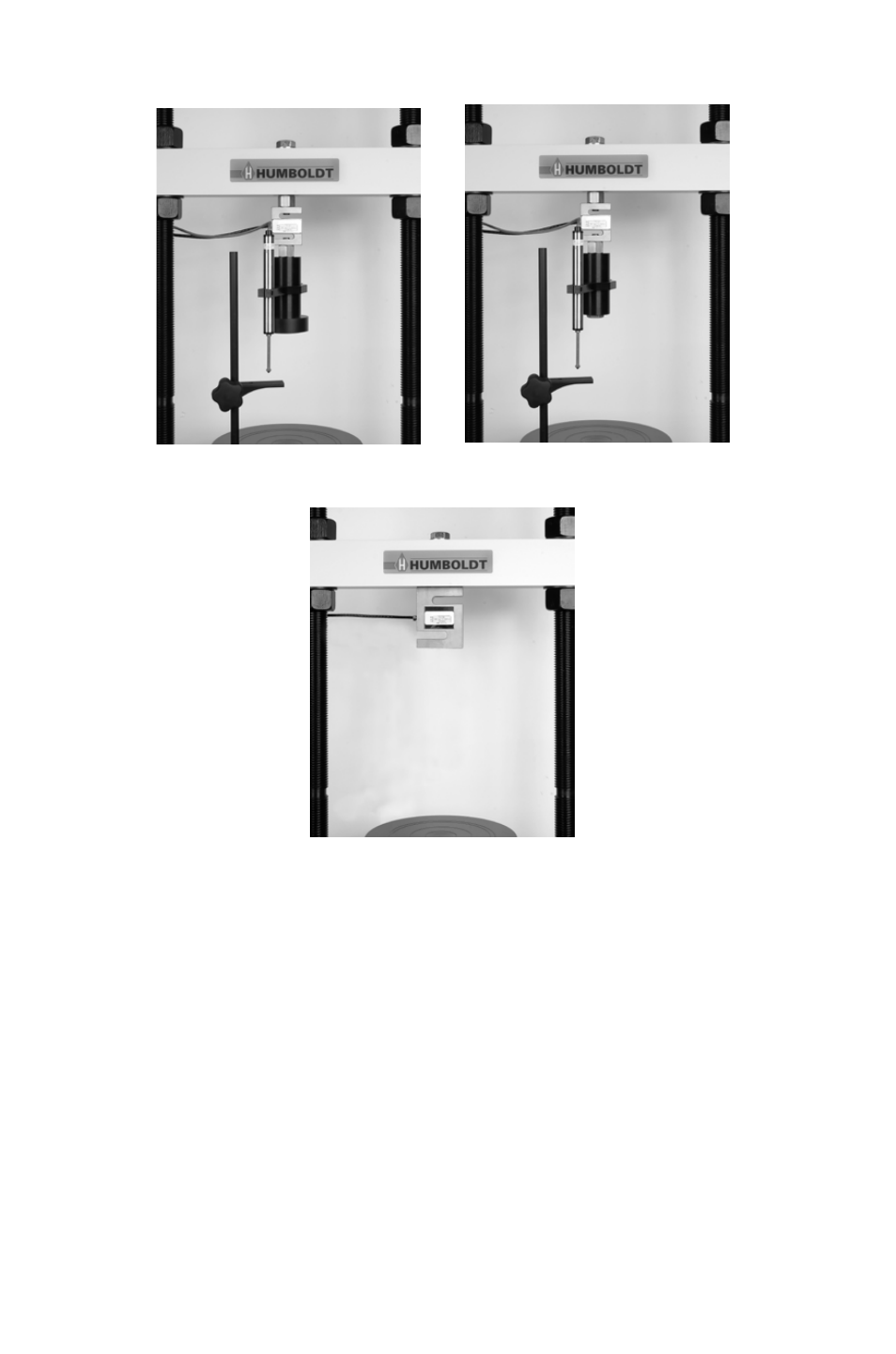

Figure 4. Unconfined Setup
Figure 5. UU Triaxial Setup
7
Figure 6. TSR/Soil Cement Setup
