3.2 REAR PANEL FUNCTIONS

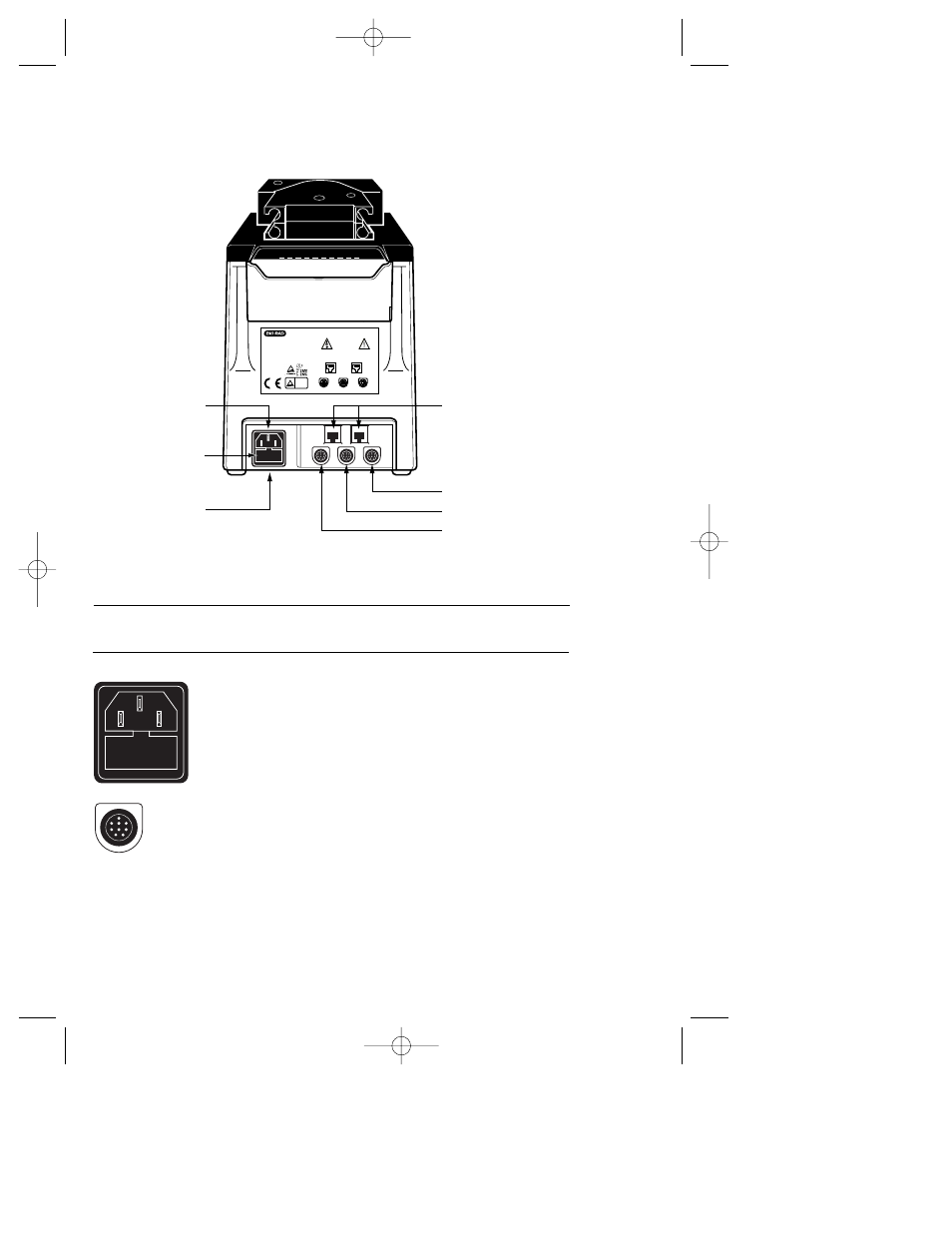

Figure 3-2. Rear panel connectors.
Display Function
Power Entry Module
Grounded 3-pin receptacle for the power
cord. Also contained within is a two-position
(100-120 V/220-240 V) fuse holder.
Gradient Mixer Connector
This 8-pin outlet controls the Gradient Mixer
used for making binary linear gradients.
