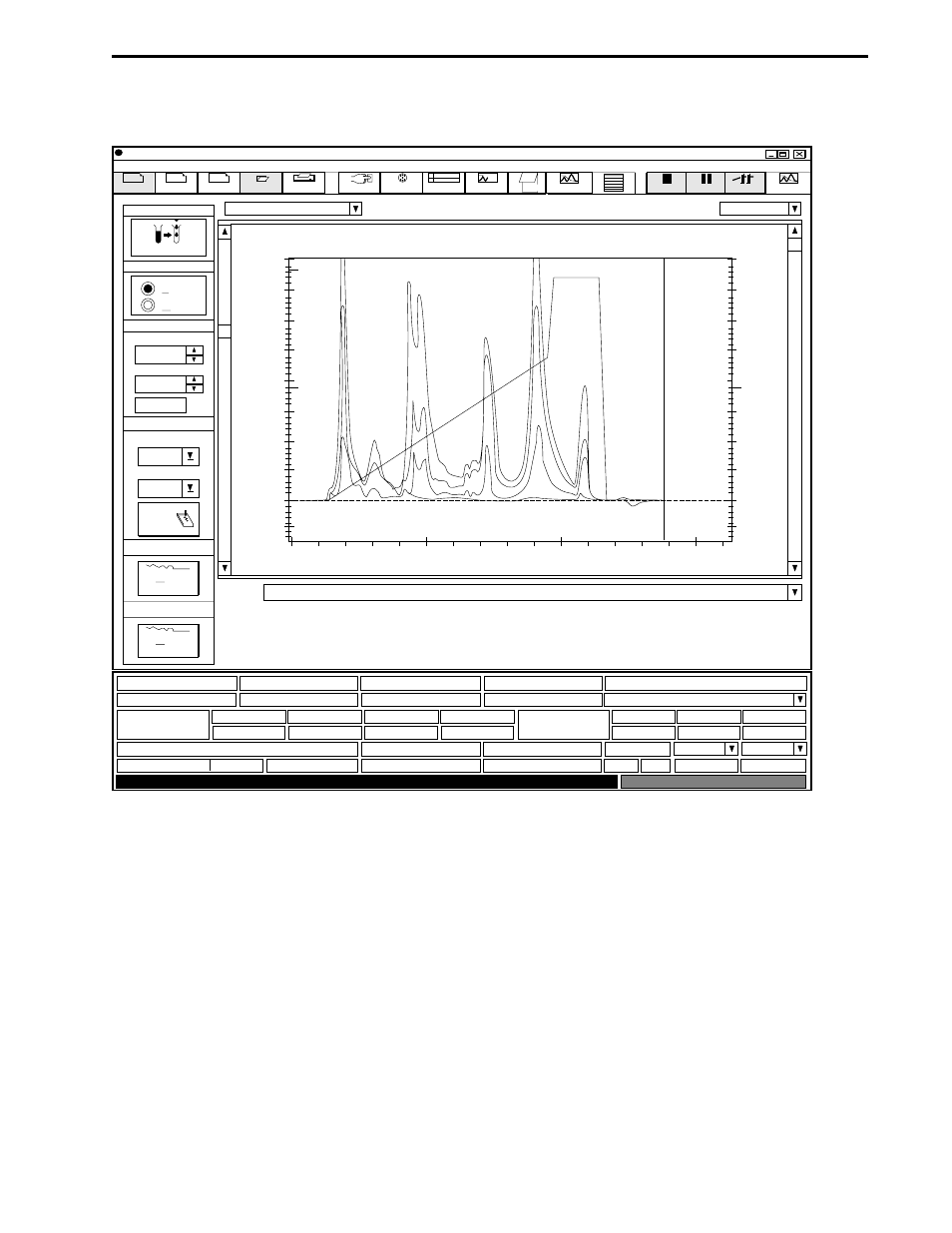

Figure 2-10. Run Screen, Showing Chromatogram for QuadTec Detector
The Run screen provides:
•
Wavelength status: The wavelengths in use by the QuadTec. The AU output for each wavelength
also is shown.
•
QuadTec zero baseline button: Resets the detector AU value to zero. Note: Use care when using
this feature during a collection scheme which uses a Threshold value.
•
Chromatogram traces: Each trace can be individually scaled. Use the boxes on each side of the
chromatogram to select a trace. Use the Up/Down scrolling bars on each side of the chromatogram
to scale the trace.
