C h a p t e r 1 – G e t t i n g S t a r t e d
Page 25
Baseline 3200
Total Supported Devices & Limits
Listed below are the total numbers of devices by type that can be connected to a BaseStation
3200. The BaseStation 3200 can communicate with a maximum of 110 devices (device loads) on
the two-wire path within the layout and length limits outlined later in this section.
Two-Wire Device Type Total Device Loads
Field (Valve) biCoders 200 1 per biCoder
5200R series biCoders 20 2 per biCoder
biSensors 25 1
Master Valves/Pump Starts 4 1
Flow Meters 4 3
Pause Devices 4 1
Up to 110 total device loads are supported, and only 200 zones may be configured in the 3200 or
3200R controller.
Unused ports or serial numbers on biCoders do not occupy a zone address and do not count
towards the 200 zone limit.
Maximum Concurrent Valves

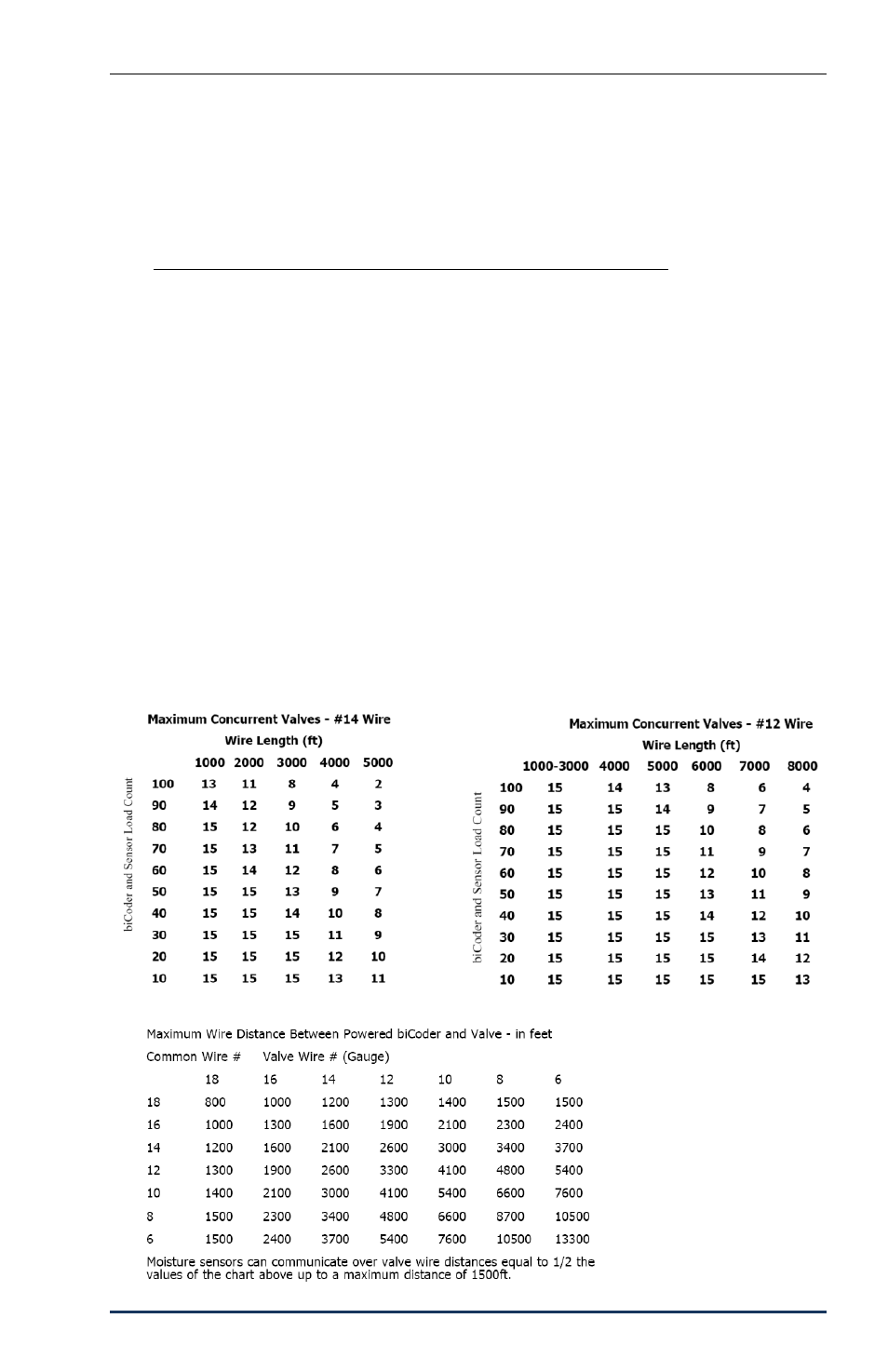

The maximum number of concurrently operating valves is shown in the two tables below, and
varies based on the total load count and wire length to the farthest device:
Maximum Wire Distances for 3200R and 5200R series biCoders
