Baseline Systems BaseStation 3200 in Pedestal - Manual

BL-3200WF-P Wi-Fi Module for Pedestal
Installation Guide
1-866-294-5847
Rev 10.9.2014
www.baselinesystems.com
Required Tools
 Phillips screwdriver
 Needle-nose pliers
 Crescent wrench
 Hobby knife with a fine point and sharp blade

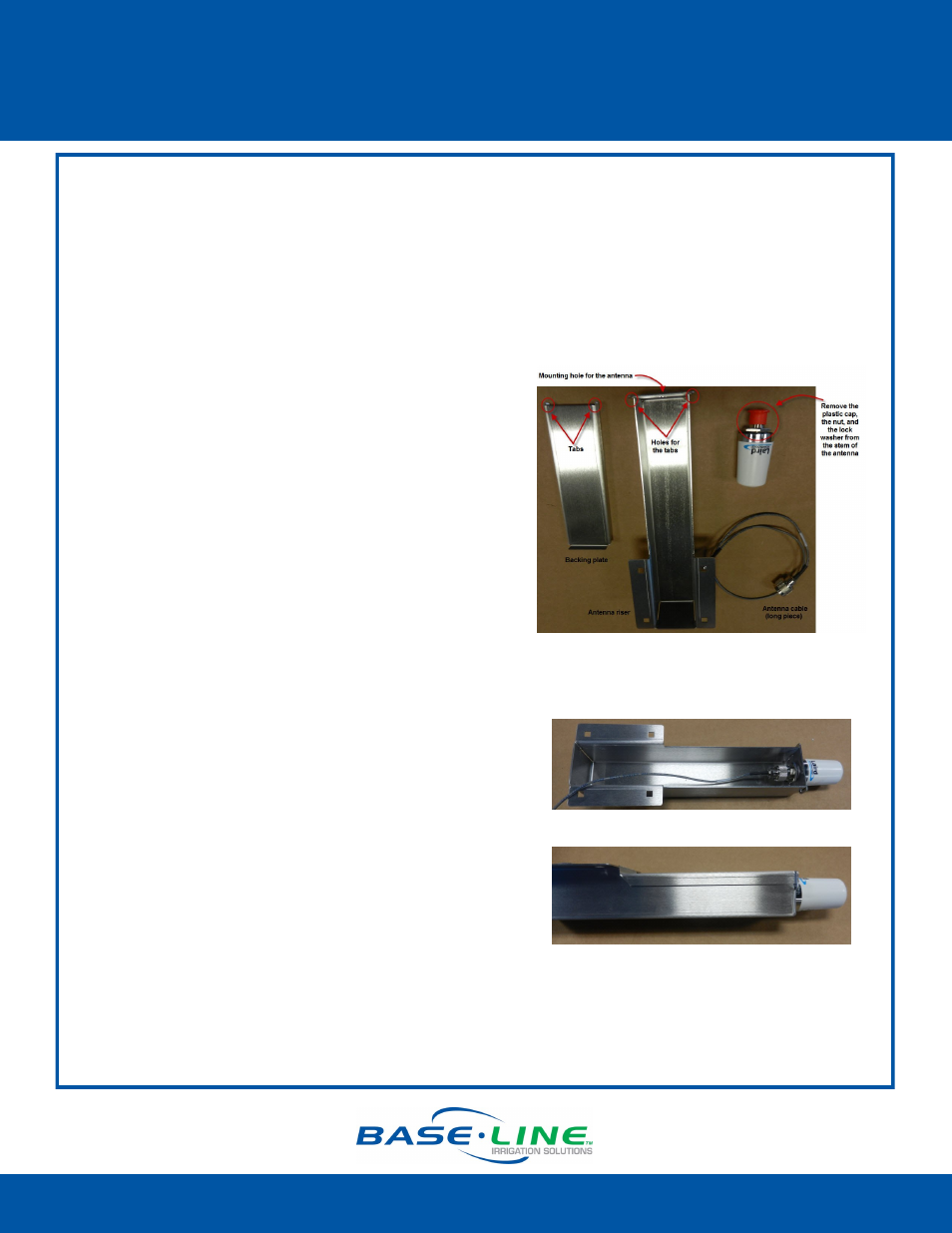

Assemble the Antenna Riser
1. Remove the antenna assembly and antenna
from its packaging.
2. Set the short piece of antenna cable aside to be
used in a later step.
3. Remove the plastic cap, the nut, and the lock
washer from the stem of the antenna.
4. Put the stem of the antenna through the
mounting hole on the top of the antenna riser so
the antenna is positioned on top of the riser.
5. Put the lock washer onto the stem of the
antenna, and then thread the nut onto the
stem. Use a wrench or pliers to tighten the nut
sufficiently to ensure that the antenna makes
good contact with the outside of the antenna
riser.
6. Thread the coax connector on the antenna
cable onto the stem of the antenna and hand-
tighten it. Route the antenna cable towards the
bottom of the antenna riser.
7. Insert the tabs on the backing plate into the
holes at the top edge of the riser and make sure
the plate is snug along the back of the riser.
Continued 
Page 1
