4-8 ADS Model 4000 Manual

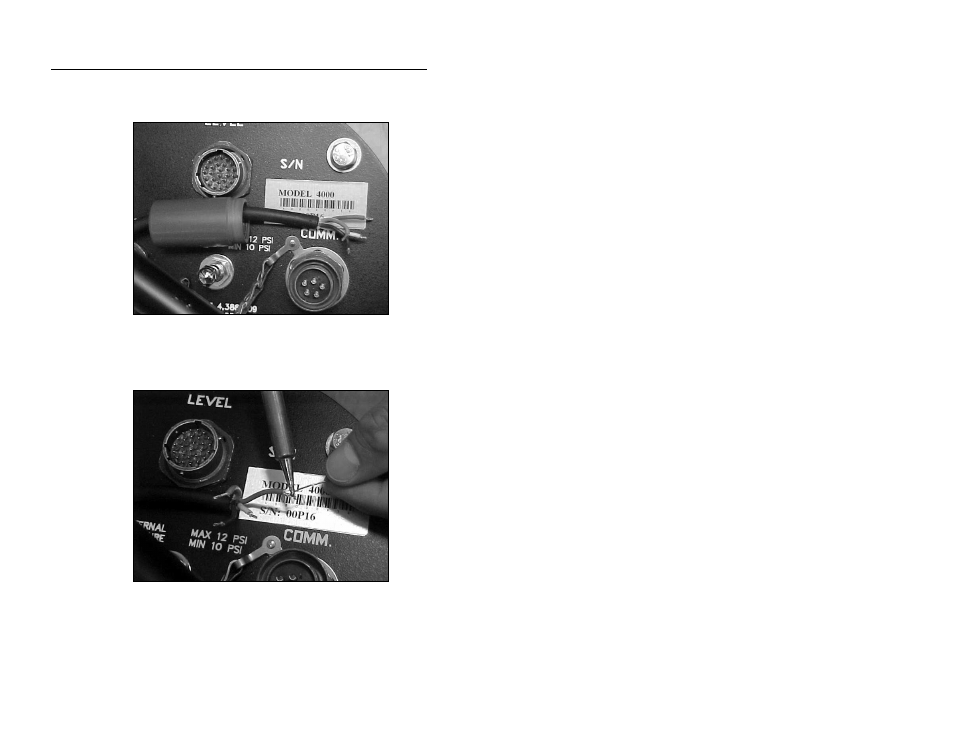

2. Insert the telephone cable through the plastic potting collar
past the loose wires.
Inserting the telephone cable through the plastic potting
3. Apply solder to the end of each wire by heating the wire with a
soldering iron and contacting the wire with the solder. This
will cause the solder to flow onto the heated wire.
Applying solder to the wire ends
4. Fill the wire sockets on the connector labeled A and D with
solder by heating each socket with the soldering iron and
