3-24 ADS Model 4000 Manual

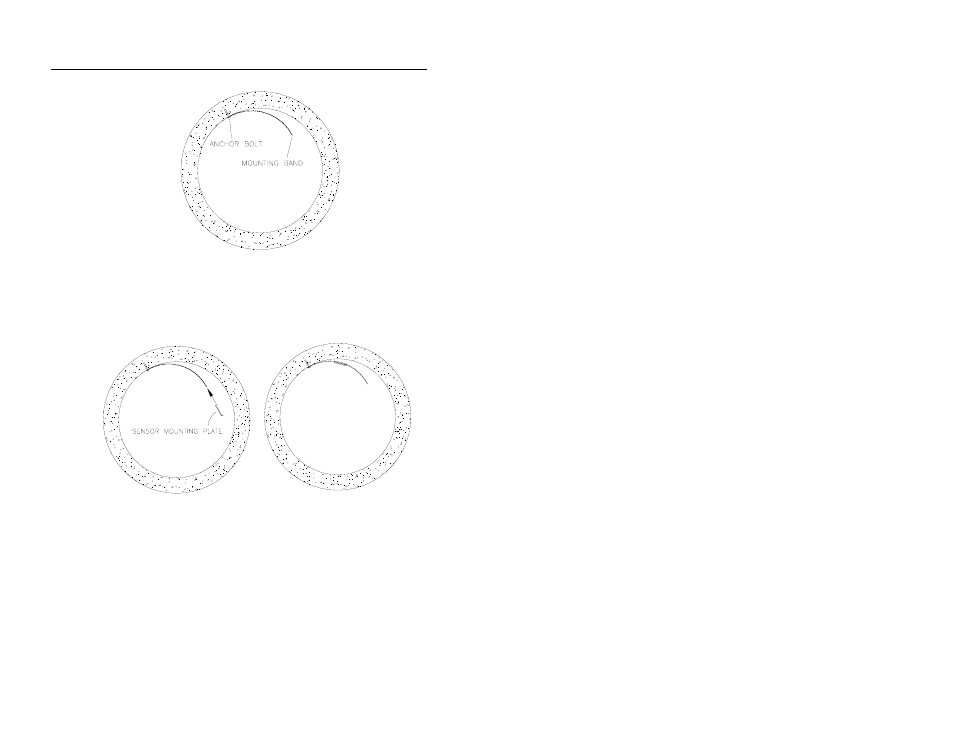

Securing one end of the ultrasonic depth sensor mounting band
6. Slide the adjustable ultrasonic plate onto the band with the
backstop edge closest to the invert and the two band slots
facing up.
Sliding the ultrasonic depth sensor mounting plate onto the band
7. Align the sliding ultrasonic plate with the scribe marks, and
conform the other end of the curved band with the pipe.
8. Spot drill to mark an anchor bolt location, and mount another
anchor bolt to the pipe.
9. Hand-tighten a 7/16-inch (11-mm) nut with washer to secure
the other end of the band.
