Communication and Activation 4-5
Mounting the Lightning Protection Module
The next step in establishing telephone service is mounting the
lightning protection module to the service pedestal. Mount the
module in the following way:
1. Remove the front cover from the pedestal.
2. Use the screws included with the lightning protection module
to mount the module on the pedestal at least 12 inches (30 cm)
above the ground surface and next to or 6 to 8 inches (15 to 20
cm) below the network interface box.

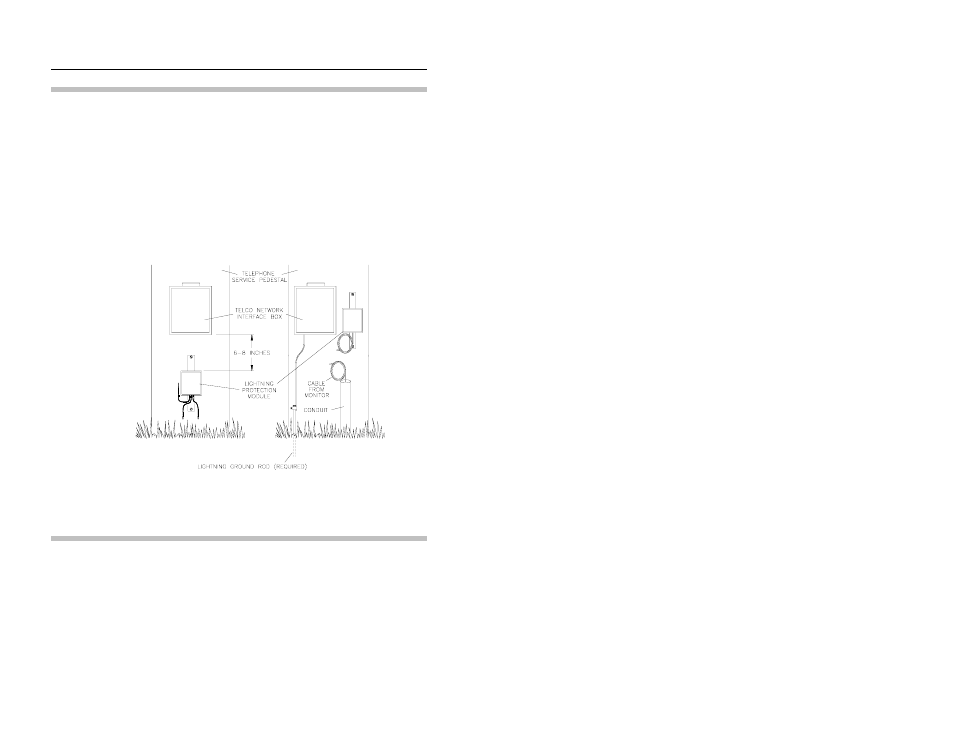

Positioning of the lightning protection module and network interface box in
the pedestal
Preparing the Telephone Cable
The next step in establishing telephone service is preparing the
telephone cable for connection to the monitor and lightning
protection module. Prepare the cable in the following way:
