3-16 ADS Model 4000 Manual
2. Secure the sensor cable to the ring. Refer to Securing the
Cables to the Ring (or Band) on page 3-42 for instructions on
properly securing the cable.
Note: If the installation includes a pressure depth sensor,
wait to secure the sensor cables until both sensors are
installed on the ring.
Mounting the Pressure Depth Sensor
Mount the pressure depth sensor to the ring in the following way:
1. Orient the ring so that the ultrasonic depth sensor is directly on
top. If an ultrasonic depth sensor is not in use, make sure the
spreader assembly is directly on top.
2. Use two M-3 × 10 mm stainless steel screws (do not substitute
any other screws) to mount the pressure depth sensor on the
bottom inside of the ring with the pointed end of the sensor
facing upstream. Mount the pressure depth sensor about 2
inches (5 cm) to the left of the velocity sensor (when present).

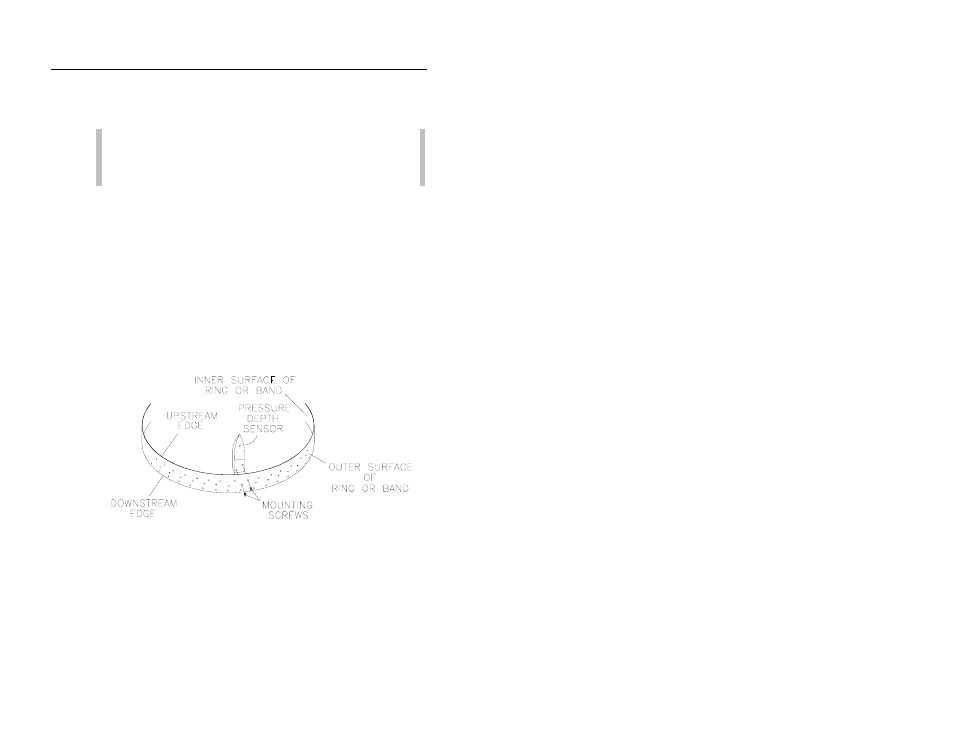

Mounting the pressure depth sensor to the ring
3. Attach the dryer tube in the vertical position to the monitor
handle using cable ties.
