A P P E N D I X B
Switch and Jumper Settings
This appendix contains instructions for changing the ID switch,
options switch, and jumper settings. ADS Model 4000
 and 4000
WR monitors are preset by the manufacturer with the correct
settings; therefore, ADS
 discourages opening new monitors.
However, technicians must adjust these settings on a new board
when a board swap occurs or on an existing board when storing the
monitor. The following sections provide instructions for changing
these settings.

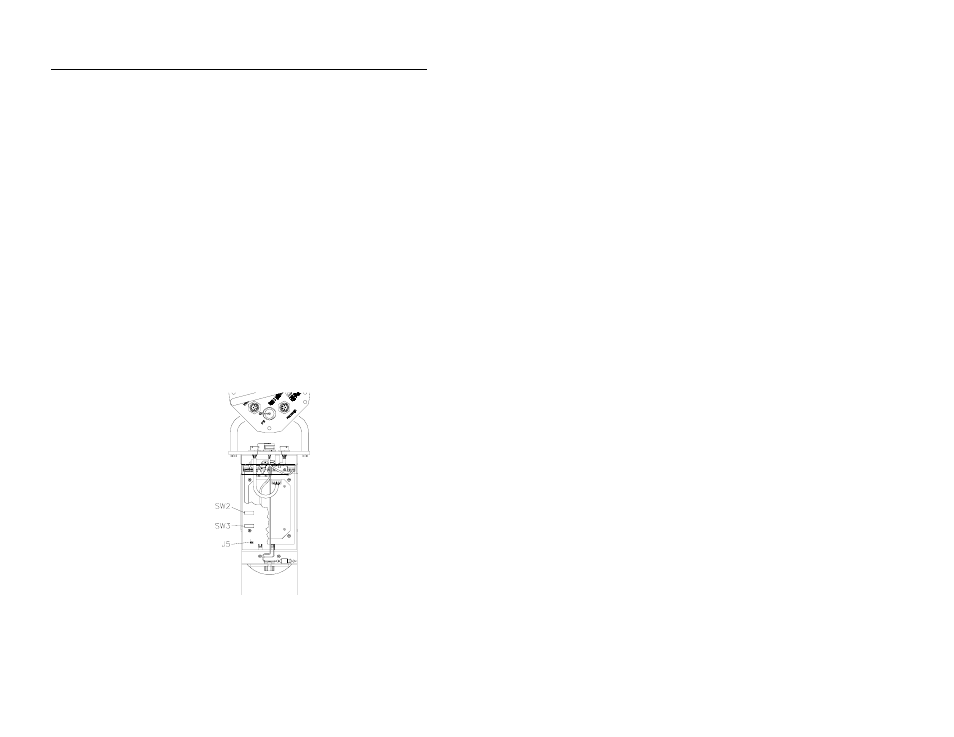

Locations of jumpers and switches on the processor board: ID switch (SW2);
Options switch (SW3), and battery backup jumper (J5)
