Toolbar Height
Refer to Figure 41 and Figure 42
Toolbar height above ground level is factory set
and normally does not require adjustment. If you tear
down the drill for repair, or if the tool bar is visibly not
level, spacer washers
on vertical pivot pins allow for a
small amount of tool bar-height adjustment.
To check tool bar height, park drill on a level surface,
and check for correct tire inflation. Measure from ground
to horizontal pivot pin
. If dimension on either side of
drill varies more than 1 ⁄
4
inch (6.4mm), adjust tool bar
height.
To adjust tool bar height, reposition spacer washers .
First lower openers and set enough opener down pres-
sure to help balance frame. Raise tool bar by removing
spacer washers from top of the vertical pivot and plac-
ing them on bottom side of pivot. Lower tool bar by
removing spacer washers from bottom of vertical pivot
and placing them on top of pivot.

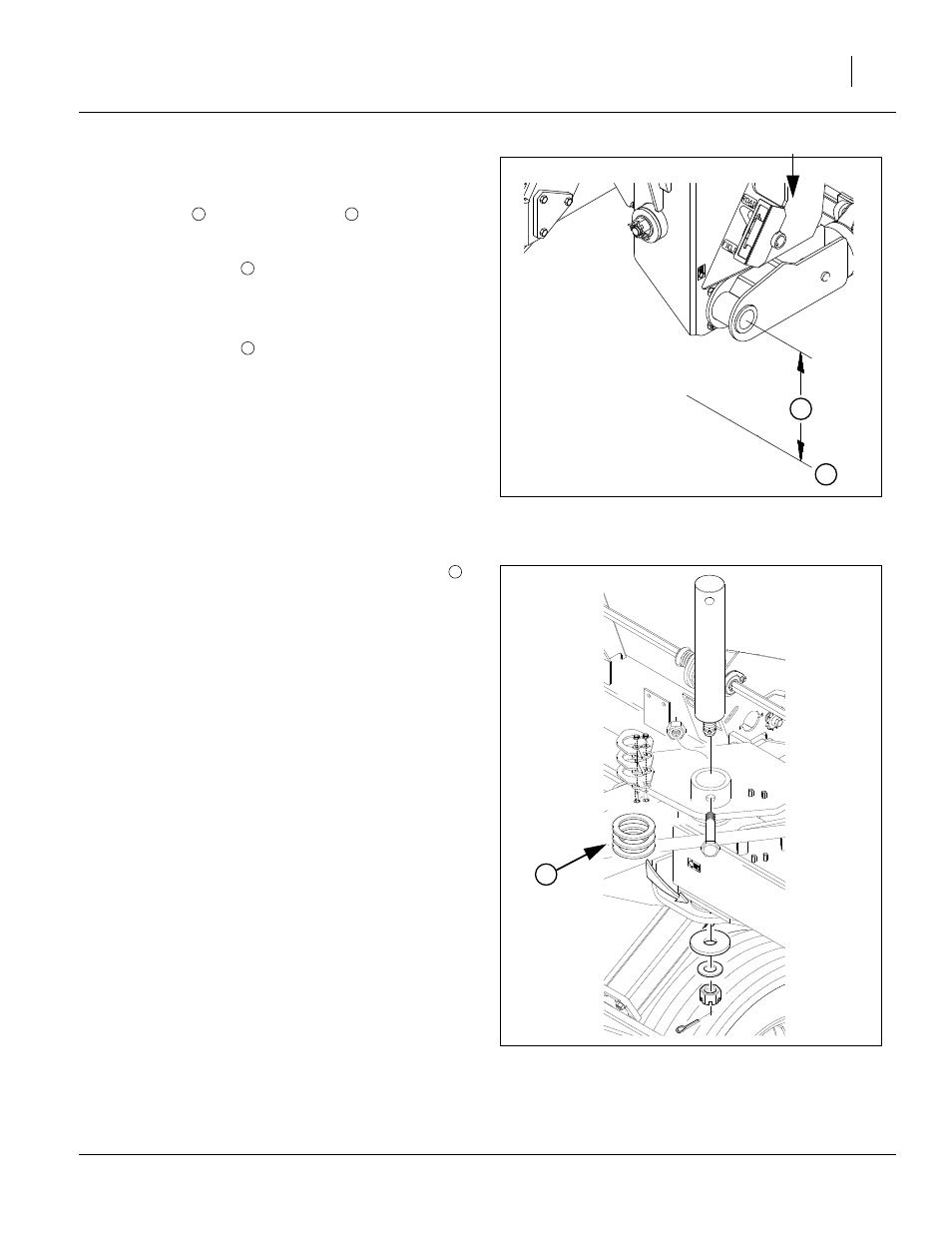

Figure 41
Toolbar Height
15616
1
2
1 2
3
1
Figure 42
Toolbar Height
15617
3
3
