Assembly 15
12/09/2009 195-068Q
Install Wing Walkboards and Steps
There are two walkboards, one on the back of each
wing seed box. The walkboards themselves are identi-
cal for each section. The way they install varies by sec-
tion. The center walkboard is factory-installed.
Bolts for walkboards are shipped in a bag in one of the
drill boxes.
If the drill has swing-down ladders, the wing walkboard
installation is identical at the outside ends as well.
If the drill has single steps, they are mounted as part of
the walkboard installation, and require longer bolts.
Walkboards with Single Steps
Refer to Figure 9
1.
Select one walkboard , and four sets of
1 ⁄
2
x1 1 ⁄
4
inch bolts , lock washers and hex nuts .
2. Using the top bolt holes on each end, temporarily
bolt each wing walkboard
to box support chan-
nels .
3. Skip to “Install Fixed Walkboard Steps” on page
17.
Walkboards with Swing-Down Ladders
Refer to Figure 9
1.
Select eight sets of 1 ⁄
2
x1 1 ⁄
4
inch bolts , lock wash-
ers and hex nuts .
2. Bolt each wing walkboard to box support chan-
nels .

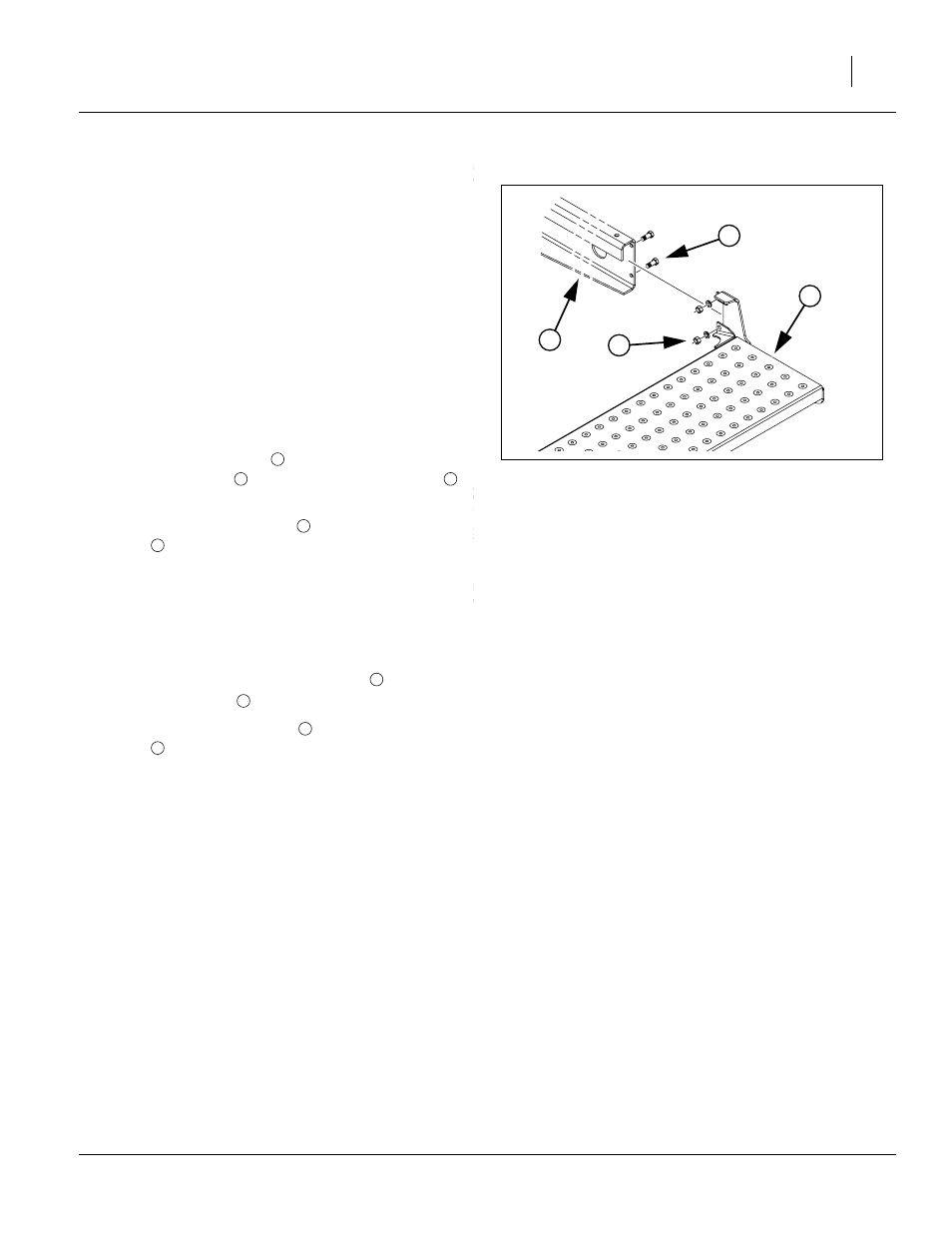

Figure 9
Wing Walkboards, Inner End
18810
1
3
4
2
1
3 4
1
2
3
4
1
2
