Two Outlet Kit
If the Two-Outlet Hydraulic Kit was ordered, install it
now (before the markers, as this kit contains items
needed when both 2-outlet and markers are installed).
Installation instructions are provided in a separate
manual with the Two-Outlet kit.
Markers
Markers are not factory-installed, due to vertical clear-
ance requirements during shipment. An installation
manual is provided, but does not include details for
installation where a Two-Outlet Kit is also present. If a
Two-Outlet kit is installed, observe these tips:
• The Marker/Fold valve mounts on the second valve
bracket.
• Use the longer bolts in the Two-Outlet kit to stack
the hose clamps. Place the clamp hold-down on the
top clamp.
• For consistency of operation, be sure to plumb the
Fold circuit to the forward ports of the Marker/Fold
valve, and plumb the Marker circuits to the rear.
Handle forward is then Transport operations (Fold),
and handle back is then Field operations (Marker).
Consult the drill Operator’s manual for setting initial
marker extension length, and the latest information on
chain length and stop bolt adjustment.

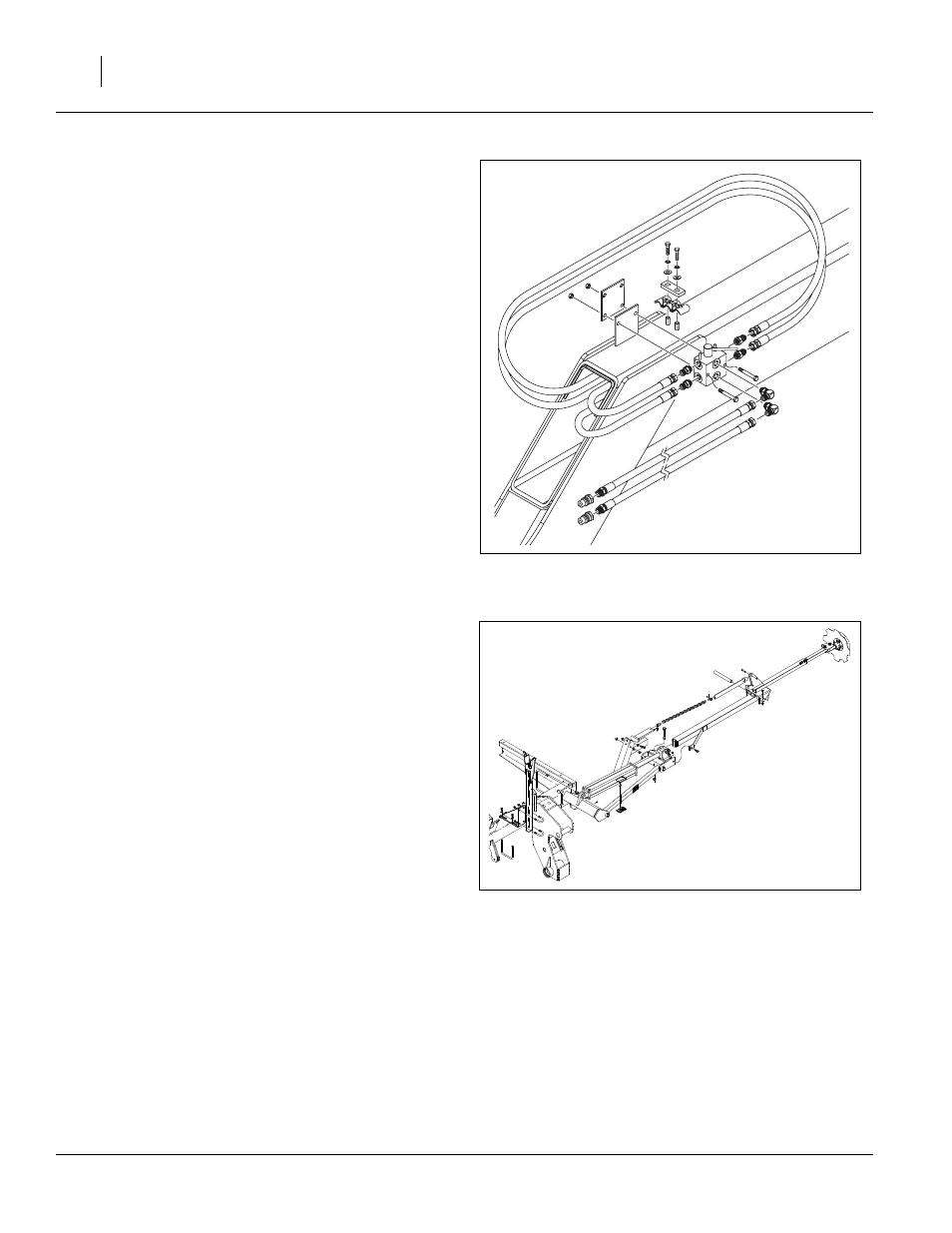

Figure 18
Two-Outlet Selector
27020
Figure 19
Marker
26493
