12 3S-3000HD
195-068Q 12/09/2009
Install Transfer Driveshaft
Refer to Figure 6
18. Remove the transfer drive subassembly
from the
drill seed box. The transfer drive assembles to the
right side of the drill, and transfers the drive power
to the center box assembly.
19. Assemble the U-joint end of the transfer drive
assembly to the U-joint yoke on the right wing
box. Use 3 ⁄
8
x3 3 ⁄
4
in pin and 3 ⁄
32
x1in cotter pins .
20. Clip the shipping wire, and telescope the end of the
drive assembly toward the break away-drive assem-
bly at the center of the drill.
21. Engage the jaws of the break-away clutches , and
fasten the bearing bracket to the plate extending
up from the right wing tool bar .
Use the two 1 /
2
x1 1 /
2
in round head bolts , 1 /
2
in flat
washer , 1 /
2
in lock washers and 1 /
2
in nuts .
Note: DO NOT tighten the 1 /
2
in bolts yet.
The box lead must be adjusted before the drive
assembly can be adjusted.

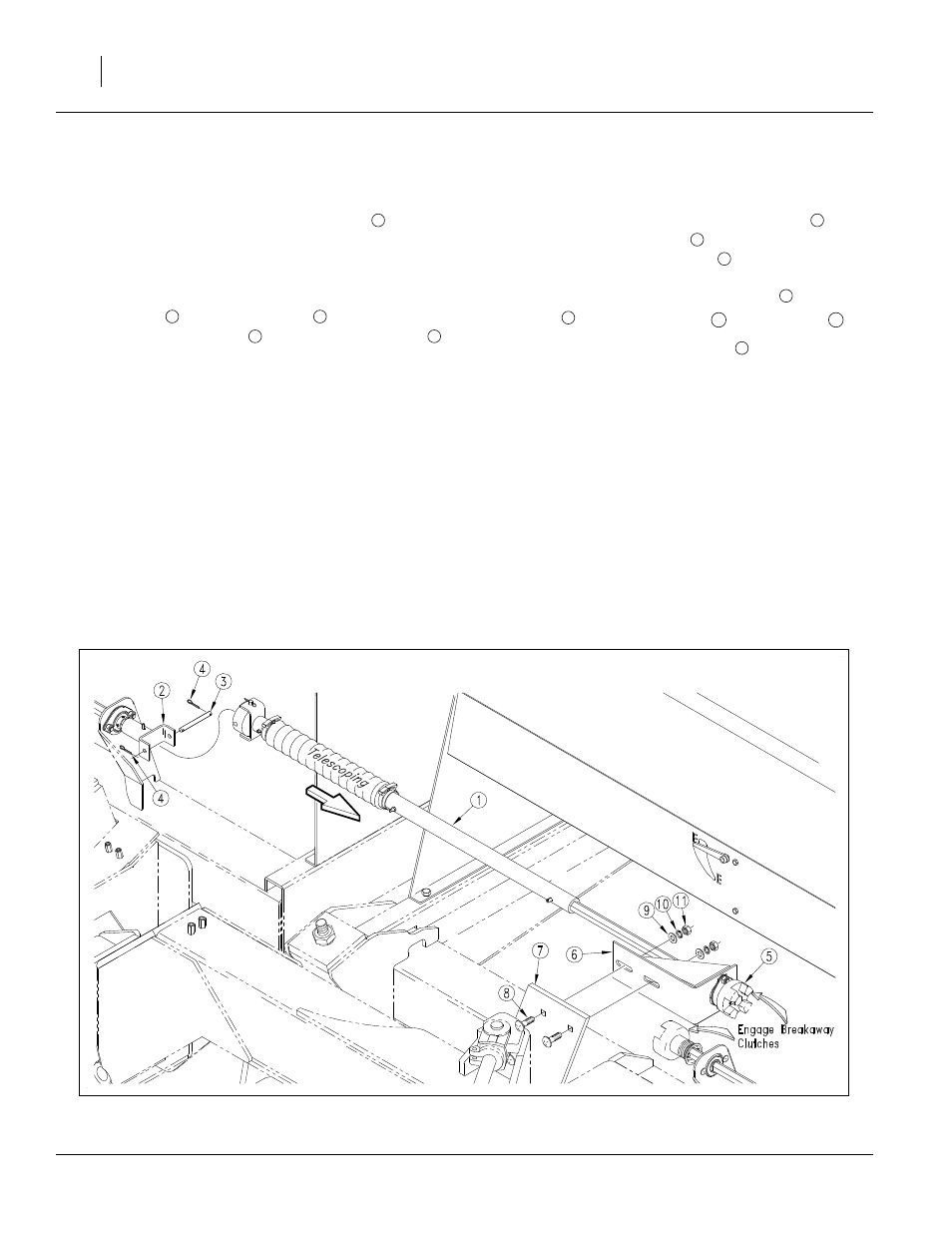

Figure 6
Transfer Drive Shaft
15611
1
1 2
3 4
5
6
7
8
9 10 11
8
