Setup 23
12/09/2009 195-068Q
Refer to Figure 23 and Figure 24
To adjust the drill hitch to match your tractor-drawbar
height, mount tongue jack on side of tongue. Use jack to
raise drill tongue so lowest hitch hole is 18 inches
(45.7cm) above ground level with drill lowered to FIELD
position.
Refer to Figure 24
Bolt drill hitch onto drill tongue to match your tractor-
drawbar height. You can turn the hitch over for a total of
six different hitch heights. Always have two (2) bolts in
two holes of both tongue and hitch.
Note: When hitching drill to a different tractor, check for a
difference in drawbar heights. If heights are differ-
ent, readjust hitch height accordingly.
Securely attach safety chain to an anchor on a tractor
capable of pulling the drill.
Refer to Figure 25
Use crank to raise jack foot. Remove pin and jack. Store
jack on top of tongue.

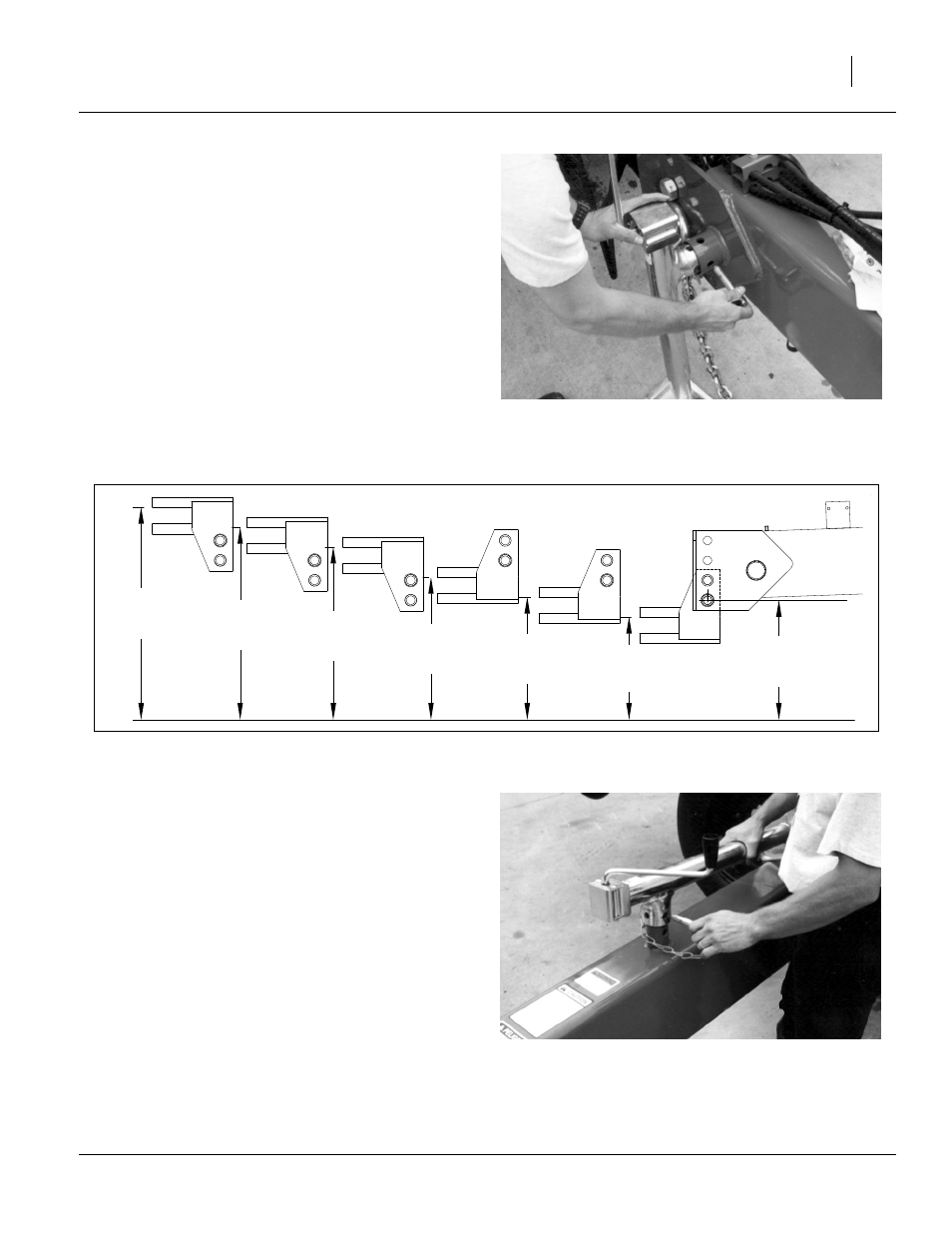

Figure 23
Jack in Lifting Location
15564
Figure 24
Heights for Various Hitch Positions - Correct Tongue Height
15623
32.0in
81.3cm
29.0in
73.7cm
26.0in
66.0cm
21.5in
54.6cm
18.5in
47.0cm
15.5in
39.4cm
18.0in
45.7cm
Figure 25
Jack in Storage Location
15563
