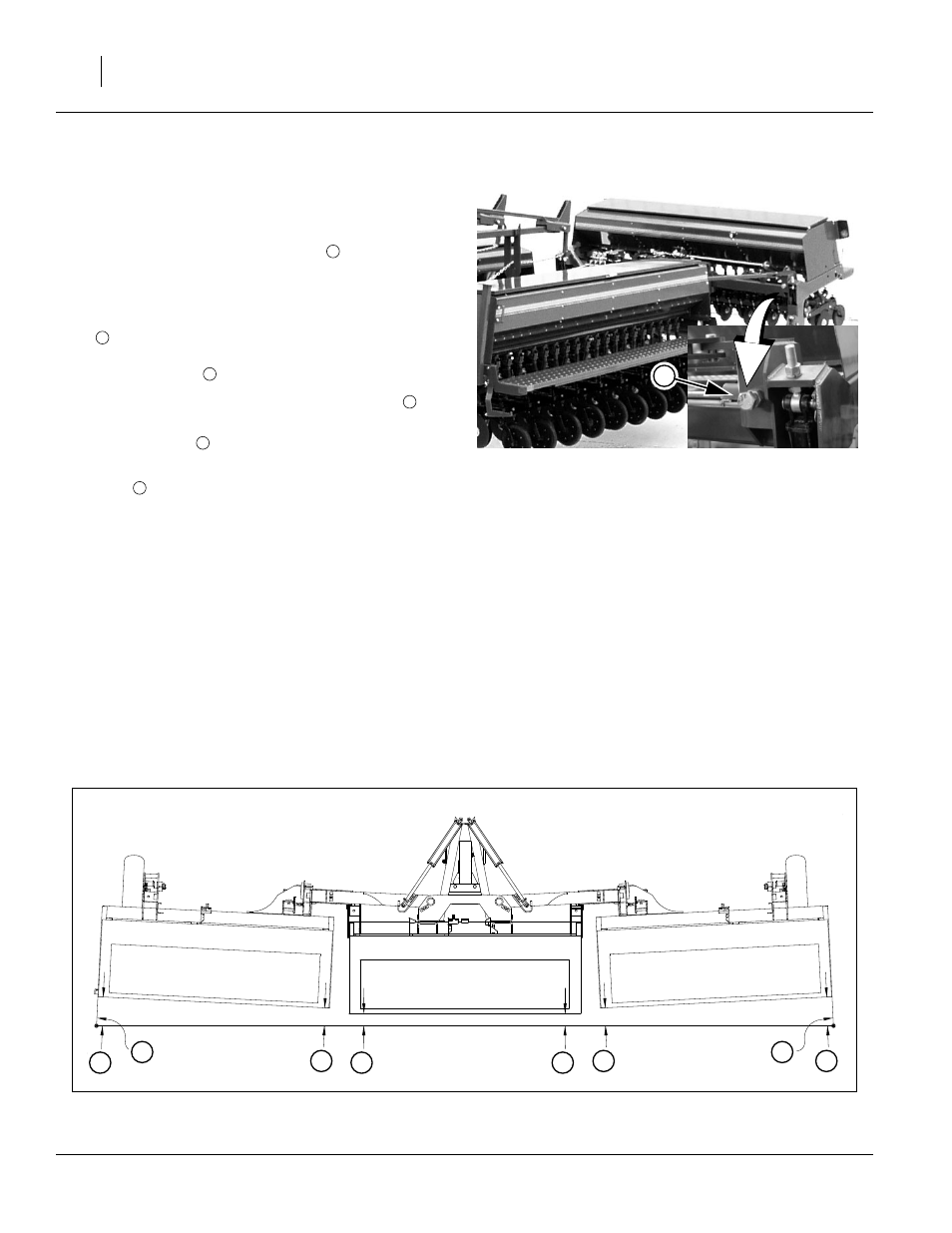

Wing Box Alignment
1. Place a block ahead of the wing gauge wheels.
Refer to Figure 35
2.
Pull forward against blocks to rock wing frames
back. Pull forward until stop bolts
are firmly
against toolbars.
Refer to Figure 36
3.
Check for proper alignment by running a string line
across back of drill toward outer ends of wings.
Make sure string is parallel to center box (both
measurements
equal).
4. For proper alignment, outside ends of boxes
should be about 1in to 1
1 ⁄
4
in (2.5 to 3.2cm) ahead
of inside ends .
5. To adjust box alignment, shorten or lengthen stop
bolts
to change the contact point with the tool-
bars. Loosen jam nut and thread stop bolt in or
out. Adjust stop bolts in or out until outside ends of
boxes are 1in to 1
1 ⁄
4
in (2.5 to 3.2cm) ahead of
inside ends.
6. Tighten jam nut.
Figure 35
Stop Bolt Location
18988
3
Figure 36
Wing Box Alignment Measurement
15654
6
4
7 5 5 7 6
4
3
4
5
6
7
3
