Section 1: Assembly Great Plains Mfg., Inc.
Series I UT3030-UT5052 Ultra-Till 576-026M 10/28/2004
24
Front Gauge Wheel Assembly
On model UT5036, bolt the gauge
wheel bracket (1) to the front plate of wing
brace as shown in Figure 11 using the 5/8 x 1
1/2 hex bolts (2), lock washers and hex nuts.
Slide the gauge wheel arm/hub assembly (3)
up into the gauge wheel bracket (1) and pin
with the 3/4 x 4 3/8 usable pin (4). Use four
1/2 x 1 1/4 hex bolts (5) to secure the arm and
make it rigid. Bolt on the 4-bolt rim and tire
(6) with four 1/2 x 1 lug bolts (7). For
directions on the proper setting for the gauge
wheel during operation, refer to Section 4
Operating and Maintenance.

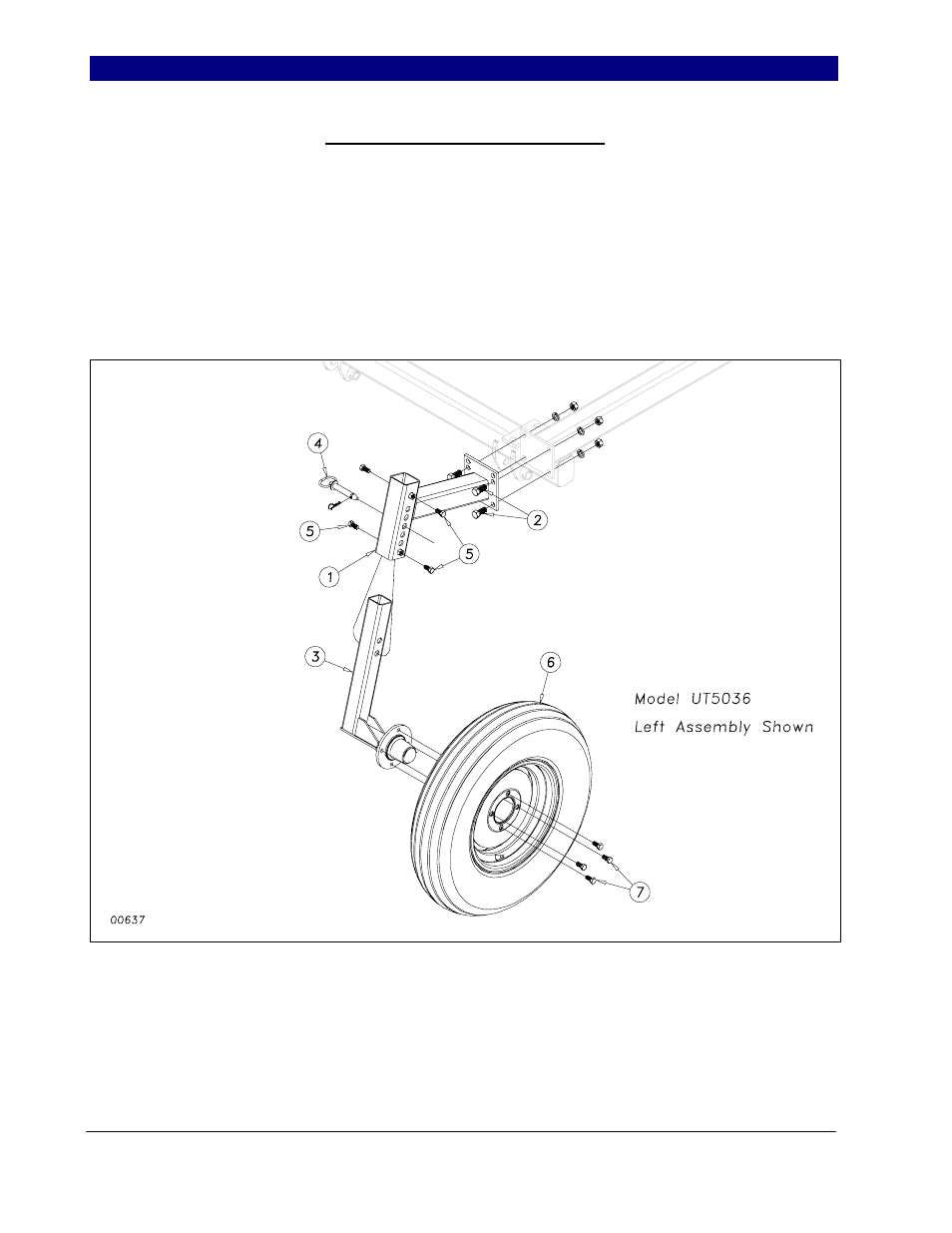

Figure 11
