Great Plains Mfg., Inc. Section 1: Assembly
10/28/2004 Series I UT3030-UT5052 Ultra-Till 576-026M
23
Center Wing Stop and Outside Wing Stop Assembly
U-bolt the center wing stop (1) to the
second bar from the rear on the center frame as
shown in Figure 10. Use 5/8 x 3 x 5 1/2 u-
bolts (2) with lock washers and hex nuts.
Center the wing stop from side to side. Insert
the 3/4 x 5 1/4 usable transport lock pins (3) in
the holders on the wing stop.
On models UT5048 & UT5052, u-bolt
the front and rear center wing stops (4 & 5) to
the center frame using 5/8 x 3 x 4 1/2 u-bolts
(6) and 5/8 x 3 x 6 1/2 u-bolts (7) with lock
washers and hex nuts.
On 5-section models, u-bolt the wing
lock mount (8) on the inside wing with 1/2 x 3
x 5 u-bolts (9). Bolt the wing latch (10) to the
wing lock mount (8) with a 3/4 x 4 1/2 bolt
(11). Slide a 3/4 flat washer (12) between the
latch and the mount on each side to take out
the slop. Use a 3/4” lock nut on the bolt but do
not torque down. The latch must move freely.
U-bolt the wing lock “T” bracket (13)
on the outside wing two 5/8 x 4 x 4 1/4 u-bolts
(14). On model UT5052, u-bolt the wing lock
“T” bracket (15) to the outside wing frame
with two 1/2 x 3 x 5 u-bolts (16). Refer to
Section 4 Machine Layout for the exact
location of the wing lock mount and lock “T”
bracket. Use lock washers and hex nuts on
these u-bolts.
On models UT5048 & UT5052, bolt
the wing rest (17) to the rocker/fold bracket, as
shown, with four 1/2 x 1 1/2 hex bolts (18)
using lock washers and hex nuts.

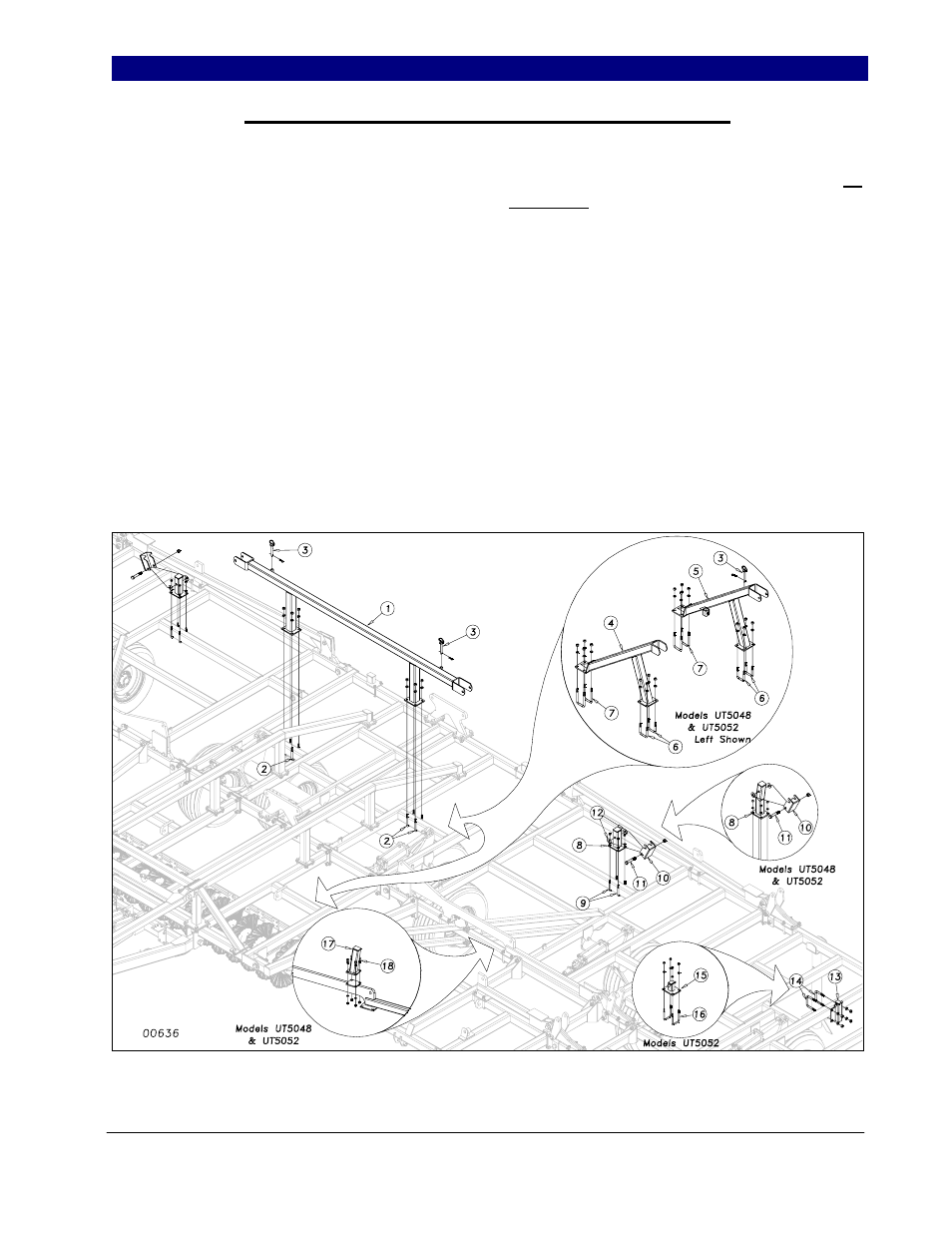

Figure 10
