Great Plains Manufacturing, Inc.
Canola Seeding
43
2013-11-11
401-923B
Configure IntelliAg
®
Monitor (Canola)
Related Documents
These are the current seed monitor manuals relied upon
for the user interface instructions in this section:
Note: This setup requires User Level 2 access on the
AI100 or AI120 seed monitor, which is password-
protected.
Material Setup
Refer to Figure 17
1.
Navigate to the Control Setup
and then the
Material Setup screen
.
2.
Select an available default “MATRL” to redefine as
canola, or select an existing named material to
rename.
In the example screen at right, “MATRL 9” was
selected, and “Canola” typed in at the next step.
For ground drive continue at “Material Setup: Ground
Drive” on page 45.
Material Setup: Hydraulic Drive
Refer to Figure 18
3.
Touch the material name to edit it to Canola. The
population ranges and rpm limits are given by the
chart on the next page.
DICKEY-john
®
IntelliAg
®
Type
must be PLANTER CONTROL
for hydraulic drive
Preset
Target Rate
Max/Min Rates
Inc/Dec
Seeds per Rev
must be 250 for 817-991C disk
Disc Low Limit
5
Disc High Limit
25
Prod Level Alarm

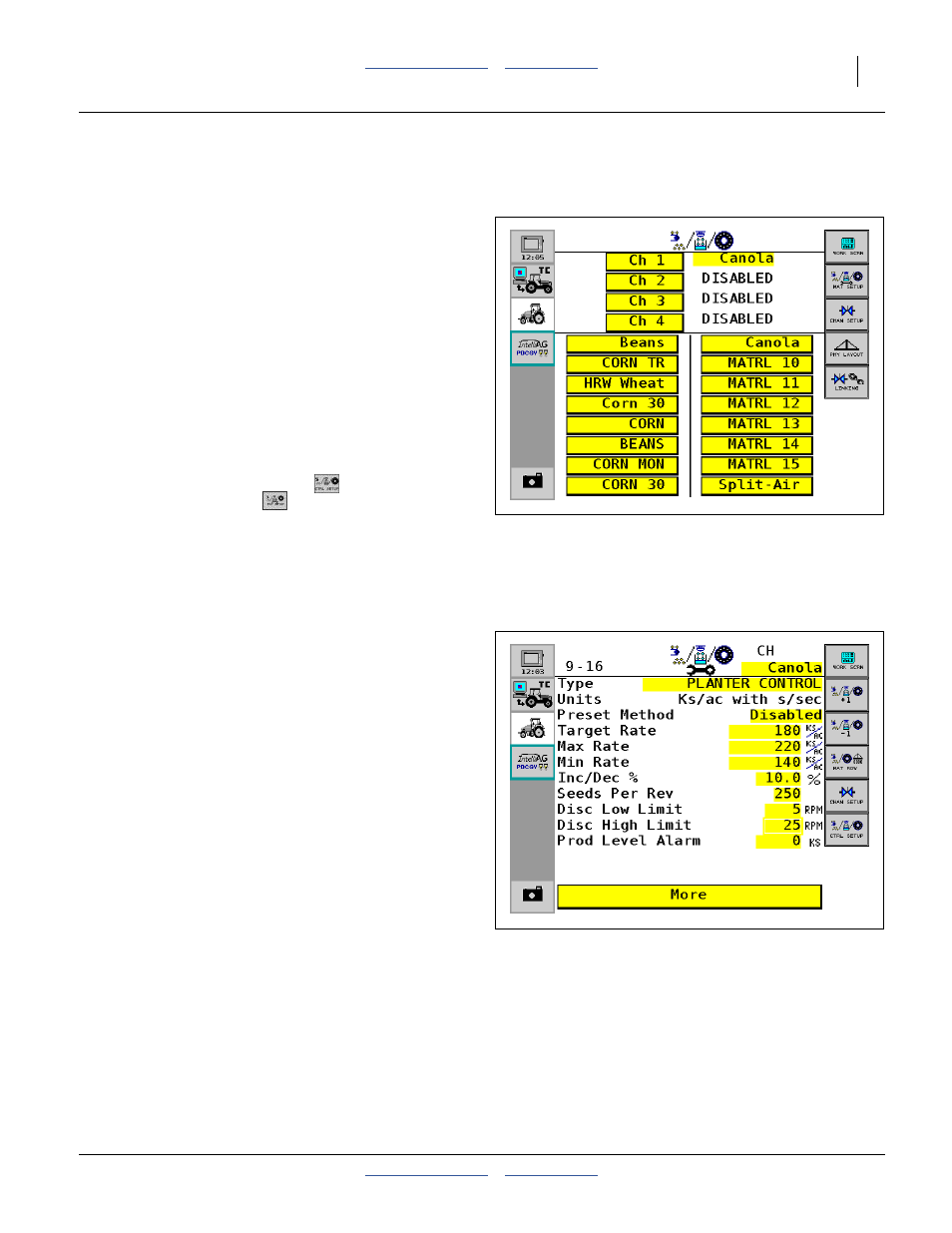

Figure 17
Control Setup
36089
Figure 18
Material Setup, Hydraulic Drive
36073
