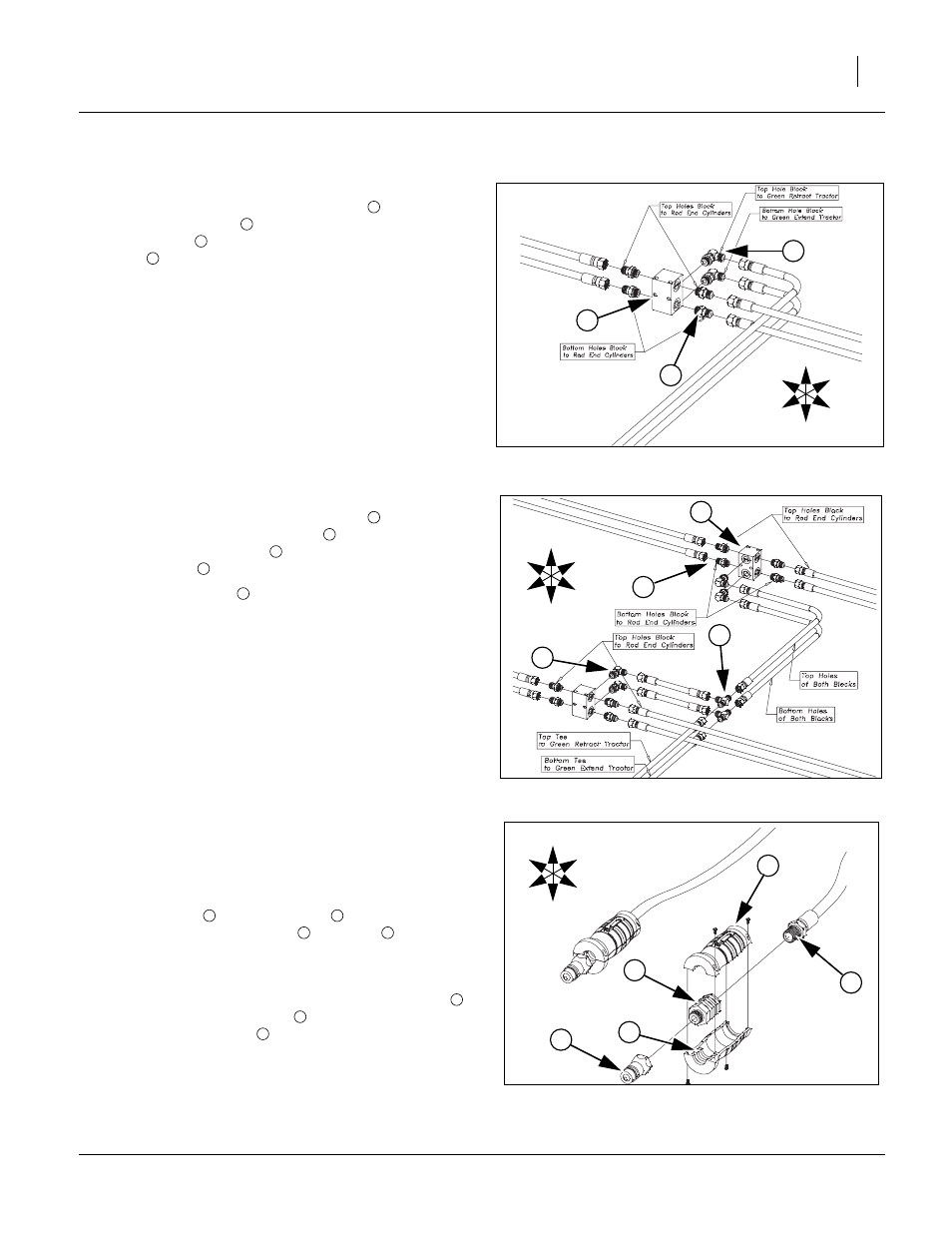

Install 3-Section Double Tee Block
Refer to Figure 23
119.Thread elbow (adjustable stud) fitting
into rear ports
of double tee block
. Thread straight (non- adjustable
stud) fittings
into left and right ports of double tee
block
.
Note: Tighten ORB fittings, See “Install Rebound Valve and
Install 5-Section Double Tee Block
Refer to Figure 24
120.Thread elbow (adjustable stud) fitting
into rear and
front ports of double tee blocks
. Thread straight (non-
adjustable stud) fittings
into left and right ports of dou-
ble tee block
.
121.Fasten MJIC tee’s
between hoses as shown.
Note: See “Install JIC Fittings” on page 20 for proper instal-
lition.
Note: Tighten ORB fittings, See “Install Rebound Valve and
Install Hose Handles
Refer to Figure 25
Note: Hose handles are color coded. See “Hydraulic Hose
Hookup” on page 21 for proper placement on hoses.
122.Install fittings
to end of hoses
running to front of
hitch. Attach poppet fittings
to fittings
.
123.Tighten ORB fittings, See “Install Rebound Valve and
124.Align the grooves in the front of the hose handles
to
the back two ribs of fittings
as shown and install the
self threading screws
through holes.
125.Route hoses as shown in layout section in “Operator’s
Manual”.
