Wing Box Alignment
1. Place a block ahead of the wing gauge wheels.
Refer to Figure 81
2.
Pull forward against blocks to rock wing frames back.
Pull forward until stop bolts
are firmly against tool
bars.
Refer to Figure 82
3.
Check for proper alignment by running a string line
across back of drill toward outer ends of wings.
4. For proper alignment, outside ends of boxes
should be about 1in (2.5cm) ahead of inside ends
.
5. To adjust box alignment, shorten or lengthen stop
bolts
to change the contact point with the tool
bars. Loosen jam nut and thread stop bolt in or out.
Adjust stop bolts in or out until outside ends of boxes
are 1in (2.5cm) ahead of inside ends.
6. Tighten jam nut.

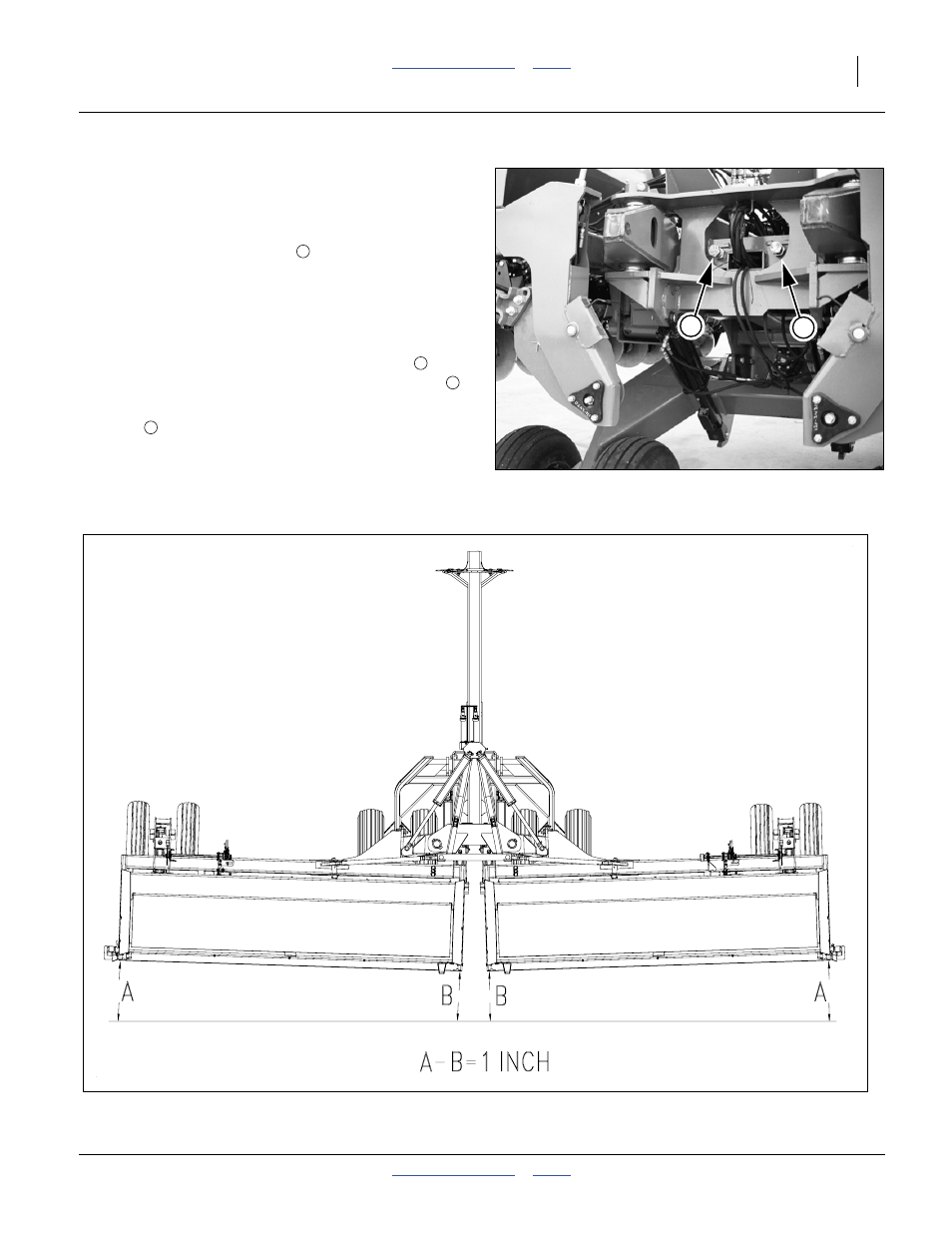

Figure 81
Stop Bolts (Wings Folded)
17357
1 1
Figure 82
Wing Box Alignment Measurement
17300
1
A
B
1
