Marker Speed
The procedure for adjusting marker speed is different for
single marker with needle valve and dual markers with
sequence valve.
Single Marker/Needle Valve Speed
Refer to Figure 70
A needle valve controls the folding speed. The needle
valve is near the rod end of the marker cylinder.
With tractor idling at a normal operating speed, adjust
marker folding to a safe speed. Turn adjustment knob
clockwise to reduce folding speed or counterclockwise to
increase folding speed. Excessive folding speed could
damage markers and void the warranty.
Dual-Marker/Sequence Valve Speed
There is one adjustment screw for unfolding speed
and one for folding speed
. You can identify adjustment
screws by markings stamped in valve body.
Turn adjustment screws clockwise ( : slower) to
decrease [un]folding speed and counterclockwise
(
: faster) to increase [un]folding speed.
With tractor idling at a normal operating speed, adjust
marker folding to a safe speed. Excessive [un]folding
speed could damage markers and void the warranty.
After adjusting the folding speed, tighten jam nuts on hex
adjustment screws to hold settings.

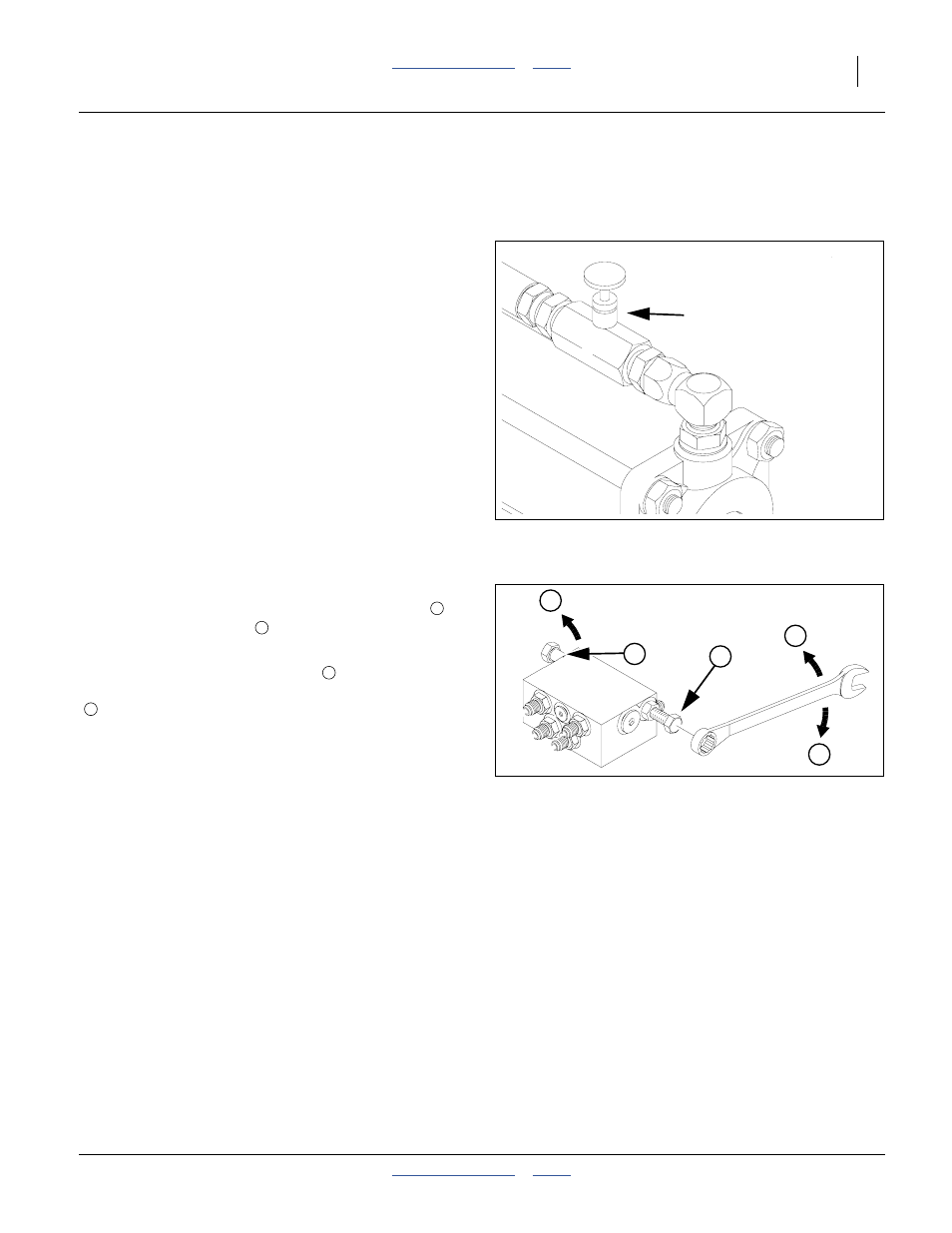

Figure 70
Needle Valve Adjustment
15625
1 2
F
S
S
Figure 71
Sequence Valve Adjustment
14048
1
2
S
F
