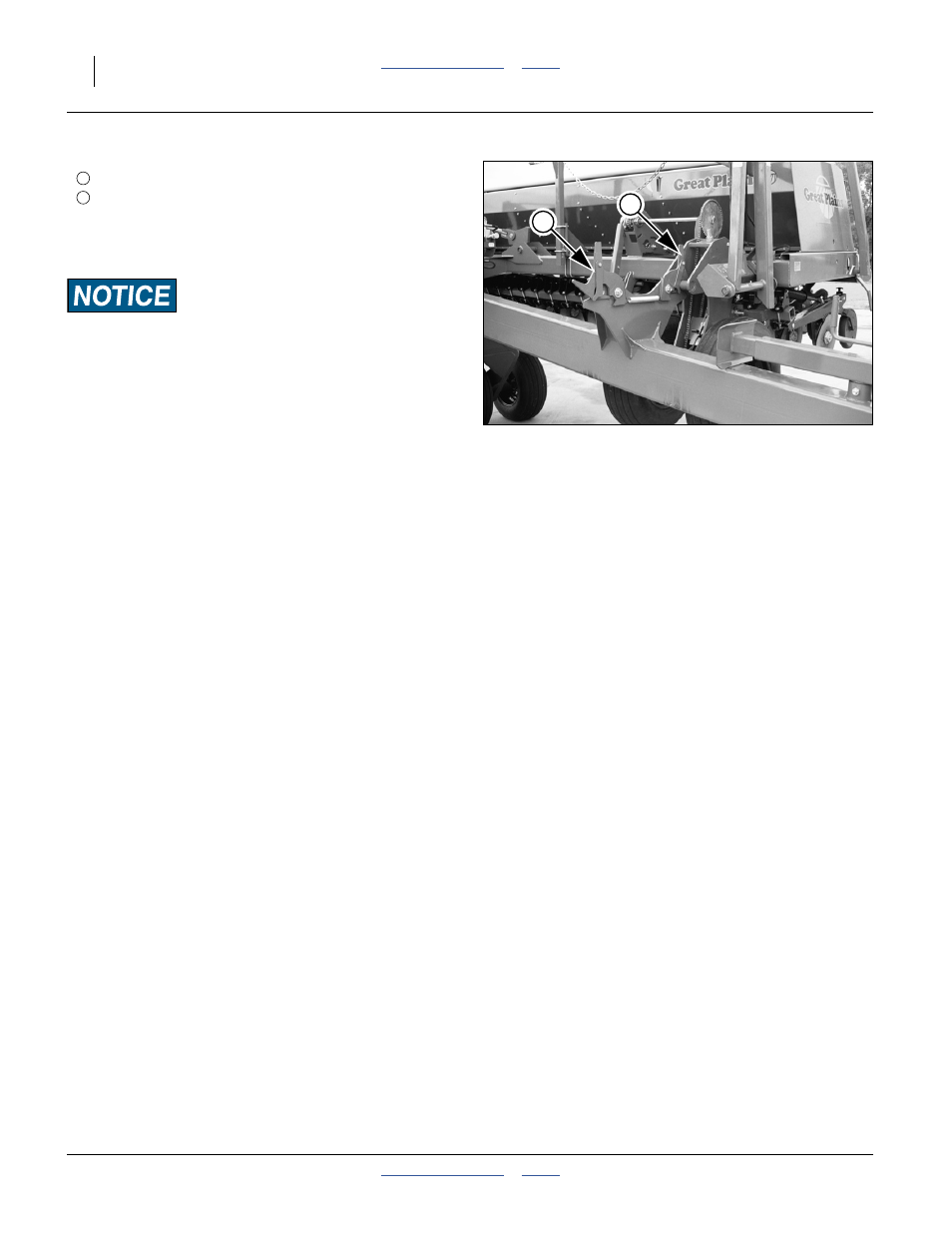

Refer to Figure 24, which depicts
the right latch awaiting a wing, and
the left latch having captured a wing.
5. Slowly supply oil to rod (retract) end of fold circuit.
Completely fold wing frames until both wing gauge
wheel pins are captured by the folding latches.
Make sure polymer bumpers in lock channels clasp the cylin-
der rods securely. The bumpers must hold the channels in posi-
tion until cylinders settle against the channels. Inspect
bumpers regularly. Replace as needed.
6. Set Fold circuit to neutral for extra safety.
The drill is now ready for the pre-transport checklist. See
“Transport” on page 27.
Figure 24
Latch Awaiting Wings
17316
1
2
1
2
