Seeding with Both Compartments
1. Clean out boxes. See “Main Box Seed Meter
Clean-Out” on page 78 and “Fertilizer Box
Clean-Out” on page 78.
Refer to Figure 37
2.
Open divider door between seed and fertilizer
compartments. To open door, loosen knobs
.
Loosen knobs until bent clips can be turned away
from door
.
3. When all bent clips have been turned, lift vinyl dew
shield (not shown) and flip the flap
backward over
fertilizer-tray openings .
Refer to Figure 38
4.
With seed/fertilizer flap covering fertilizer
openings, lower vinyl dew shield to hold flap over
fertilizer openings and away from divider.
5. To avoid unnecessary wear, remove both fertilizer
Range drive chains see Seed Rate Manual
195-325B.

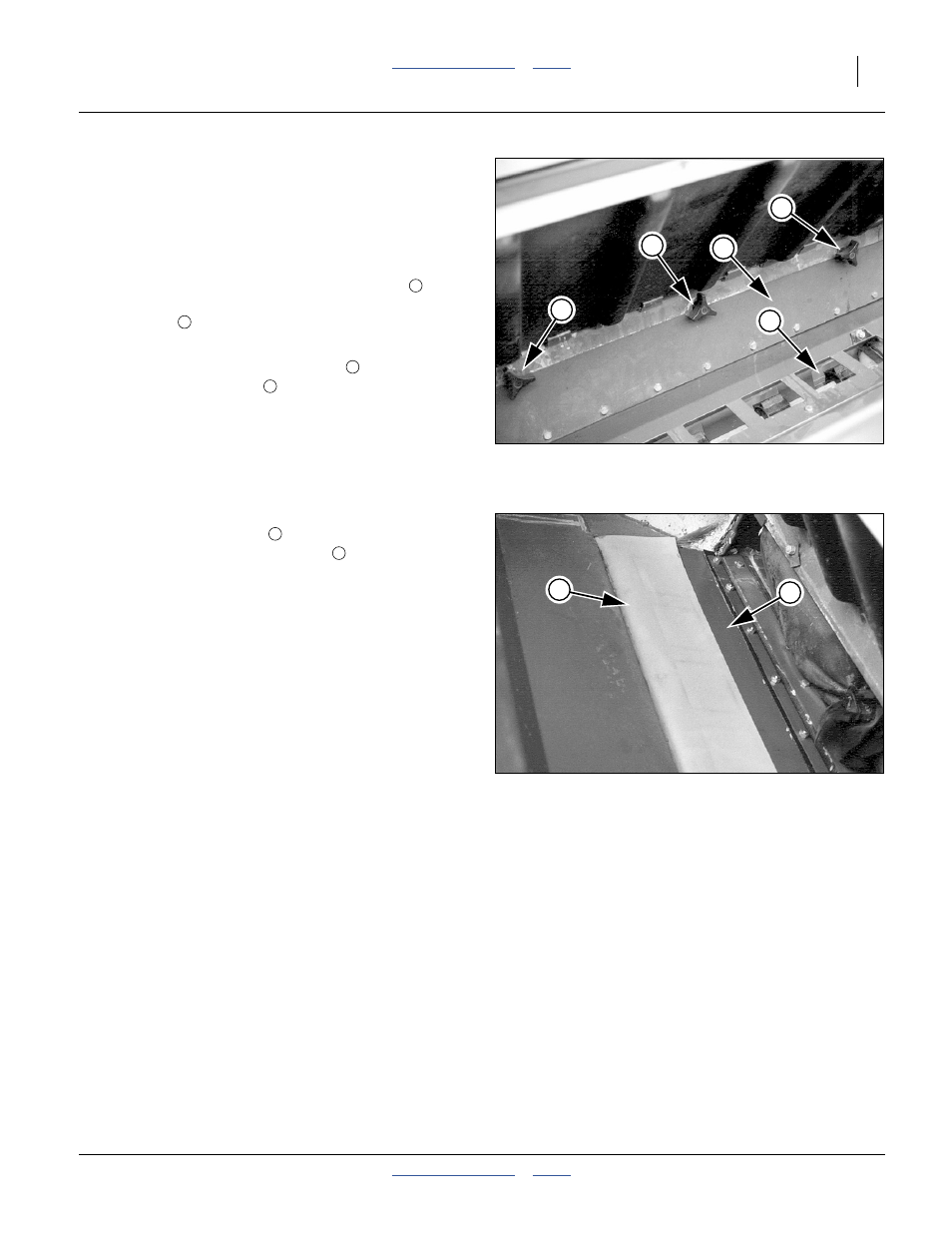

Figure 37
Open Seed/Fertilizer Flap
16383
1
1
1
2
3
1
1
2
3
Figure 38
Flap Secured
16380
4 2
2
4
