Chain Maintenance
Inspect and lubricate chains regularly. The slack of new
chains tends to increase during the first few hours of
operation due to seating.
See also “Chain Routing” on page 94.
Chain Slack
Check slack at fixed idlers within the first 8 hours of oper-
ation and tighten idlers as necessary. Check slack at
spring-operated idlers seasonally.

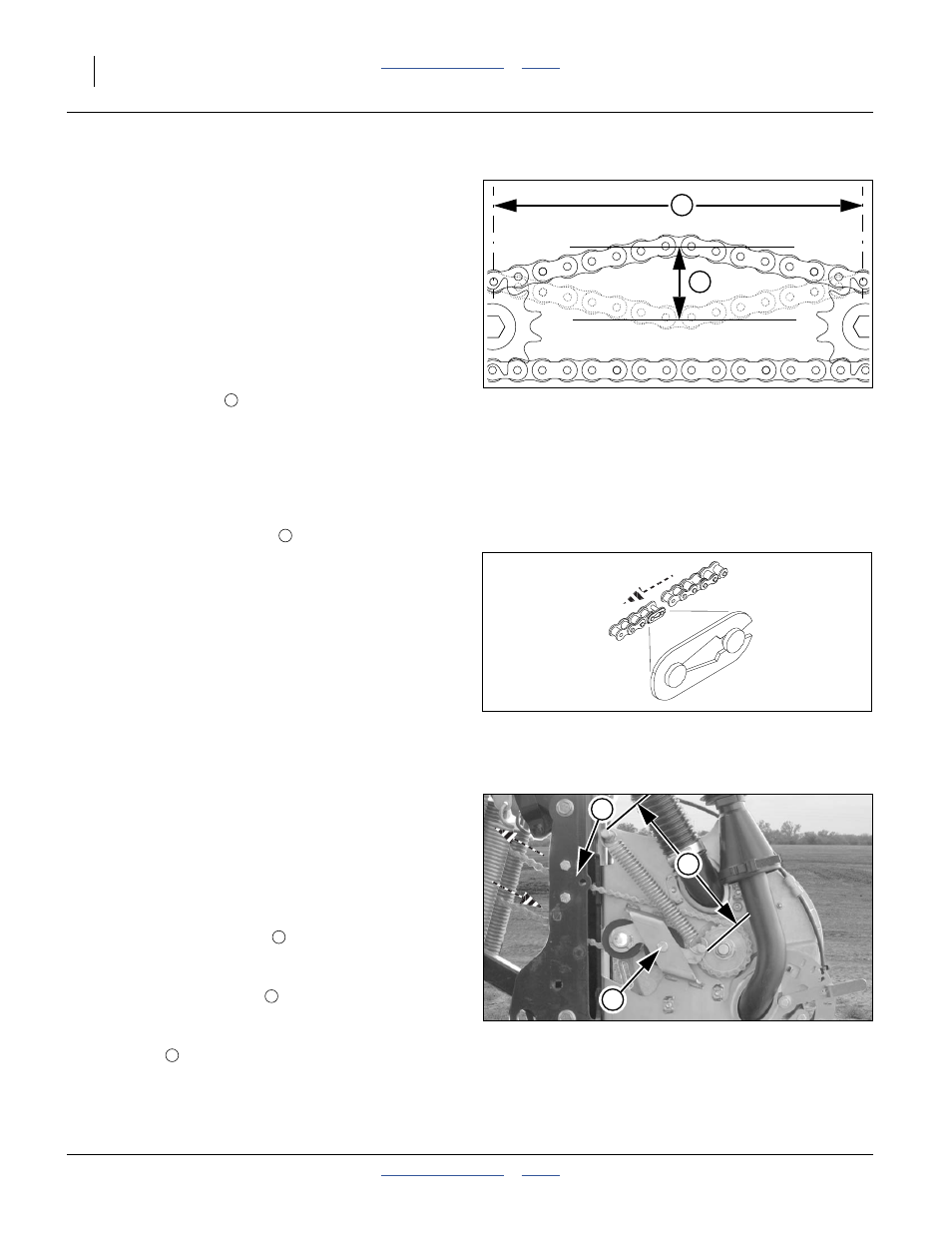

Refer to Figure 73, which, for clarity, greatly exaggerates
slack, and omits the idlers.
1. Measure the span for allowable slack:
Locate the longest span of each chain (usually the
span which does not run through the idlers).
2. Determine the ideal slack:
Long chains (over 36in/91cm):
1 ⁄
4
in per foot
Vertical short chains:
1 ⁄
4
in per foot (2.1cm/m)
Horizontal short chains:
1 ⁄
2
in per foot (4.2cm/m).
3. Measure the current slack :
Acting at a right angle to the chain span at the center
of the span, deflect the chain in both directions. The
slack is the distance of the movement.
4. Adjust the idlers for ideal slack.
Chain Clips
Whenever mounting a chain, make sure the clip at the
removable link is oriented to minimize snags.
Refer to Figure 74 (arrow shows chain direction)
Install clip with open end facing away from direction of
chain travel (shown by gray or striped arrows in chain
routing diagrams).
Meter Drive Chain
Refer to Figure 75 (which depicts drill raised)
When performing periodic lubrication, check chain condi-
tion. Replace chain if any frozen kinks are not corrected
by lubrication.
When performing seasonal checks, lower drill to put
chain at minimum idler spring tension.
Check that idler spring length , measured from outside
of pin to outside of pin, is not shorter than:
7.0in (17.8 cm)
Lift spring off idler assembly . Check that idler assem-
bly pivots freely. Re-attach spring.
Check chain clip orientation. Check chain routing at
shank idler(s)
(see page 94).
Figure 73
Measuring Chain Slack
27264
2
1
1
Figure 74
Chain Clip Orientation
26482
2
Figure 75
25AP Meter Drive Chain
29616
5
4
3
3
4
5
