Marker Chain Adjustment
There are two, interrelated adjustments for the marker
chain. Make these adjustments in the following order.

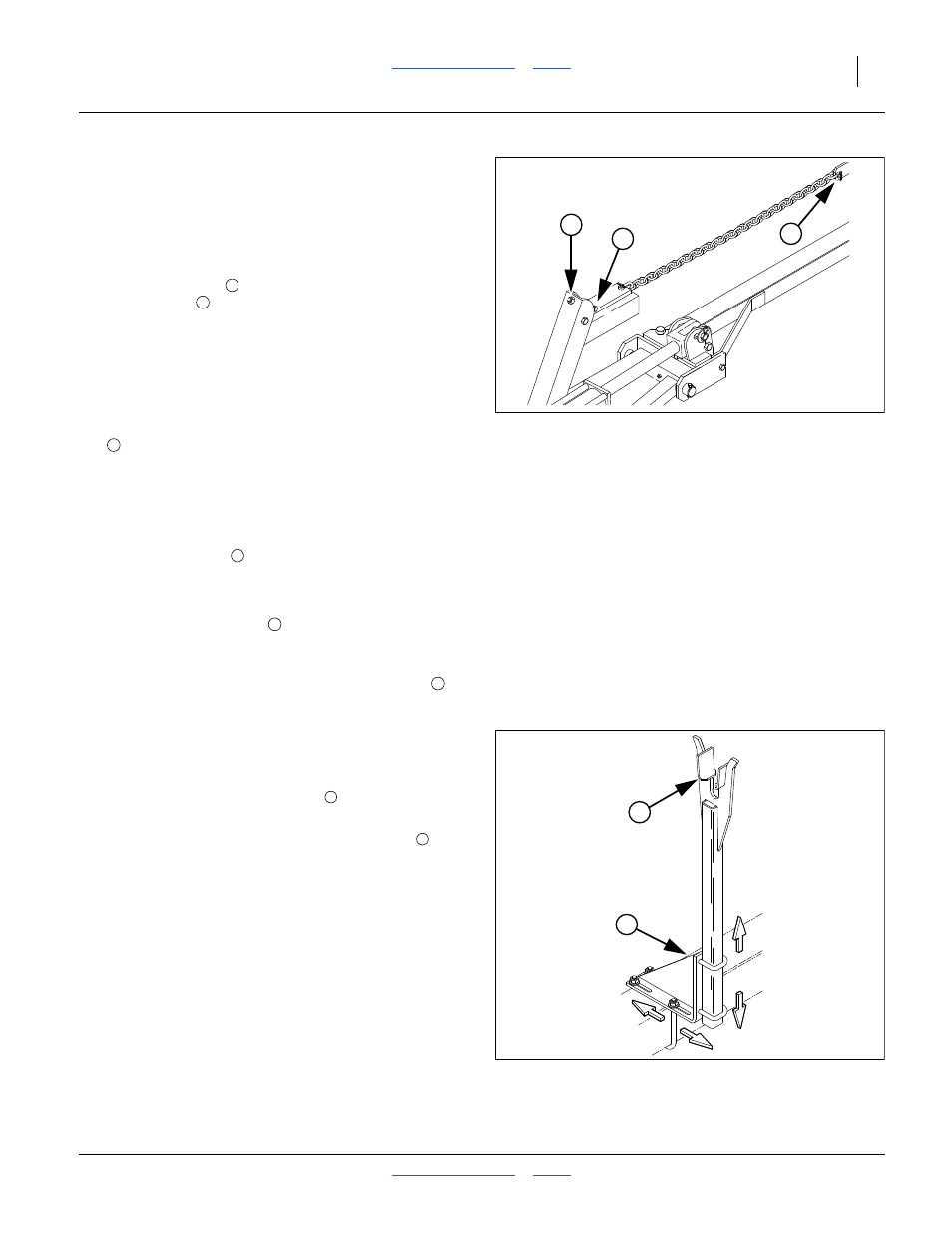

Refer to Figure 88
Marker Lifting Slack
1.
Unfold marker.
2. Loosen jam nuts on both sides of channel at
adjuster bolt .
3. Thread bolt in (up) until head is flush with inside
jam nut and both are flush with inside of channel.
4. Slowly fold marker while observing disk. If marker
disk drags across ground more than 12in (30cm)
before lifting, the chain is too long.
5. Shorten chain one or two links by moving clevis bolt
up chain a few links. Check adjustment by
repeating folding process.
6. If chain is too short when marker is unfolded, it will
prevent end of marker from dropping into field
depressions, causing skips in your marker line.
Correct this condition by lengthening chain one or
two links at clevis
.
Folding Slack
1.
Fold marker.
2. Extend adjustment bolt to take slack out of chain
while marker is folded. Extend bolt until there is no
chain slack.
3. Lock bolt in this position by tightening jam nuts
on either side of upright channel.
Marker Transport Carrier
Refer to Figure 89
When marker is folded, the second section should be
centered in transport carrier saddle
and be parallel
with top of drill box.
To adjust height of saddle, loosen
1 ⁄
2
x2in U-bolts that
hold carrier tube to mounting bracket. Slide carrier tube
up or down as needed.
Figure 88
Marker Chain
15669
1
2
3
1
2
3
3
2
1
Figure 89
Marker Transport Carrier
15632
3
2
2
3
