: Monitor Operation
Refer to Figure 35
The optional SCS 450 console monitors NH
3
flow,
monitors field speed, and operates the (rate) control
valve to deliver anhydrous ammonia at your desired rate.
Once setup for the applicator and preferences, and
configured for the rates/limits, the monitor is typically
used in the “RATE 1” or “RATE 2” FLOW CONTROL
modes.
POWER: must be ON
FLOW CONTROL: as desired
BOOMS: 1 or 1, 2 and 3 ON, all others don’t-care
(suggest OFF)
MASTER: OFF except when in field and in ground
POWER Switch: Ammonia Release Hazard:
The MASTER switch only controls the On/Off valve
if the
POWER switch is ON (and power is supplied to the console).
If you turn the POWER switch off with the MASTER and
BOOM 1(2 and/or 3) switch on, the On/Off valve(s)
remain OPEN, the Control Valve
retains its setting, and
ammonia may continue to flow from the nurse tank to the tines.
See SCS 450 manual for monitor operation details.
NH
3
: Field Application
NH
3
: Starting Tank Flow
13. Spot the applicator at the start of the first pass.
14. If the tractor has adequate power, lower the tines into
the ground and pull forward to fully seat them.
Refer to Figure 35
15. Check console MASTER switch OFF.
16. Put on your chemical gloves and goggles.
Refer to Figure 36
17. Check all applicator and nurse tank valves closed (all
in-line valves and all bleed valves).
18. From up-wind, open the tank withdrawal valve .
Check for leaks and open valves.
Expect NO ammonia odor at this time.
19. Open the applicator emergency shut-off valve .
Check for leaks and open valves.
Expect NO ammonia odor at this time.

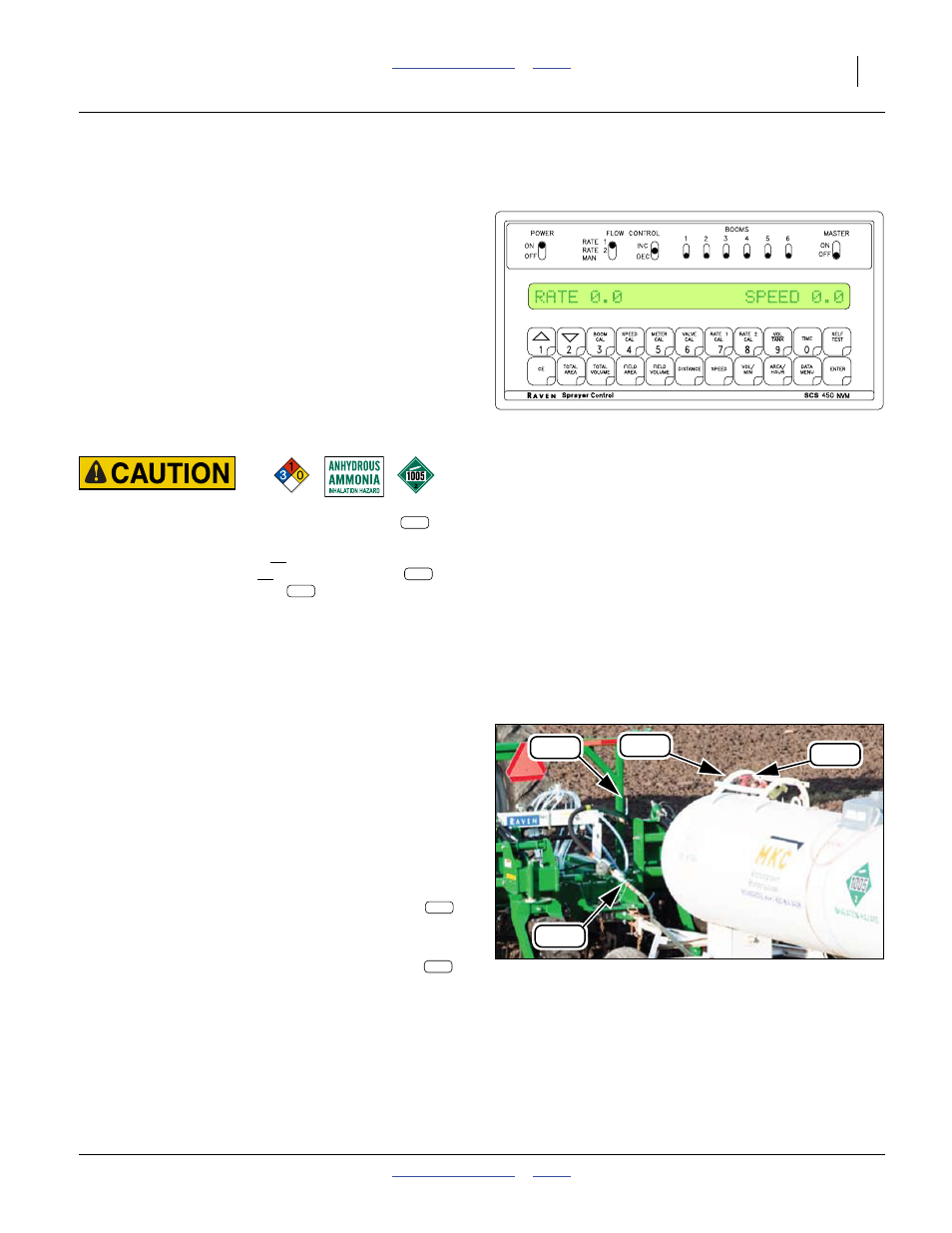

Figure 35
Typical Line-Up Screen
31588
A31
A31
A30
Figure 36
Open Valves
31566
A18
A11b
A11a
A15
A15
A18
