Install Side Dress Coulter
This applies only to traditionally mounted rear coulters.
Refer to Figure 94
36. On the top of the front tool bar of the wing extension,
use a grease or paint pencil to make a mark exactly
30in to the left of the existing left end coulter.
37. Select one new or saved:
149-584D COULTER CLAMP 6H X 4W
two:
806-016C U-BOLT 5/8-11 X 6 1/32 X 5 3/4
and four sets:
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
38. Loosely assemble a clamp to the front of the front
tool bar on the wing extension .
39. Select one new or saved:
204-691K NP COULTER ASSY RH
40. Slide the coulter’s shank up into the clamp .
Align coulter shank with mark.
41. Set the height to match the other front coulters.
Secure nuts to Grade 5 specification.
See “Vantage I Coulter Adjustments” on page 82
for factory settings.
Install Applicator Attachment
If the applicator tubing weldment is already installed on
the coulter, continue at “Connect Coulter Tubing” on
page 169.
42. Select one new:
204-688H VANTAGE I 20" LH FERT. ARM
which may be marked as:
204-691K NP COULTER ASSY RH
and two sets new:
802-082C HHCS 1/2-13X1 3/4 GR5
804-113C WASHER FLAT 1/2 USS HARD PLT
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
43. Mount the arm on the coulter swing arm .
See “Vantage I Coulter Adjustments” on page 82
for height setting.

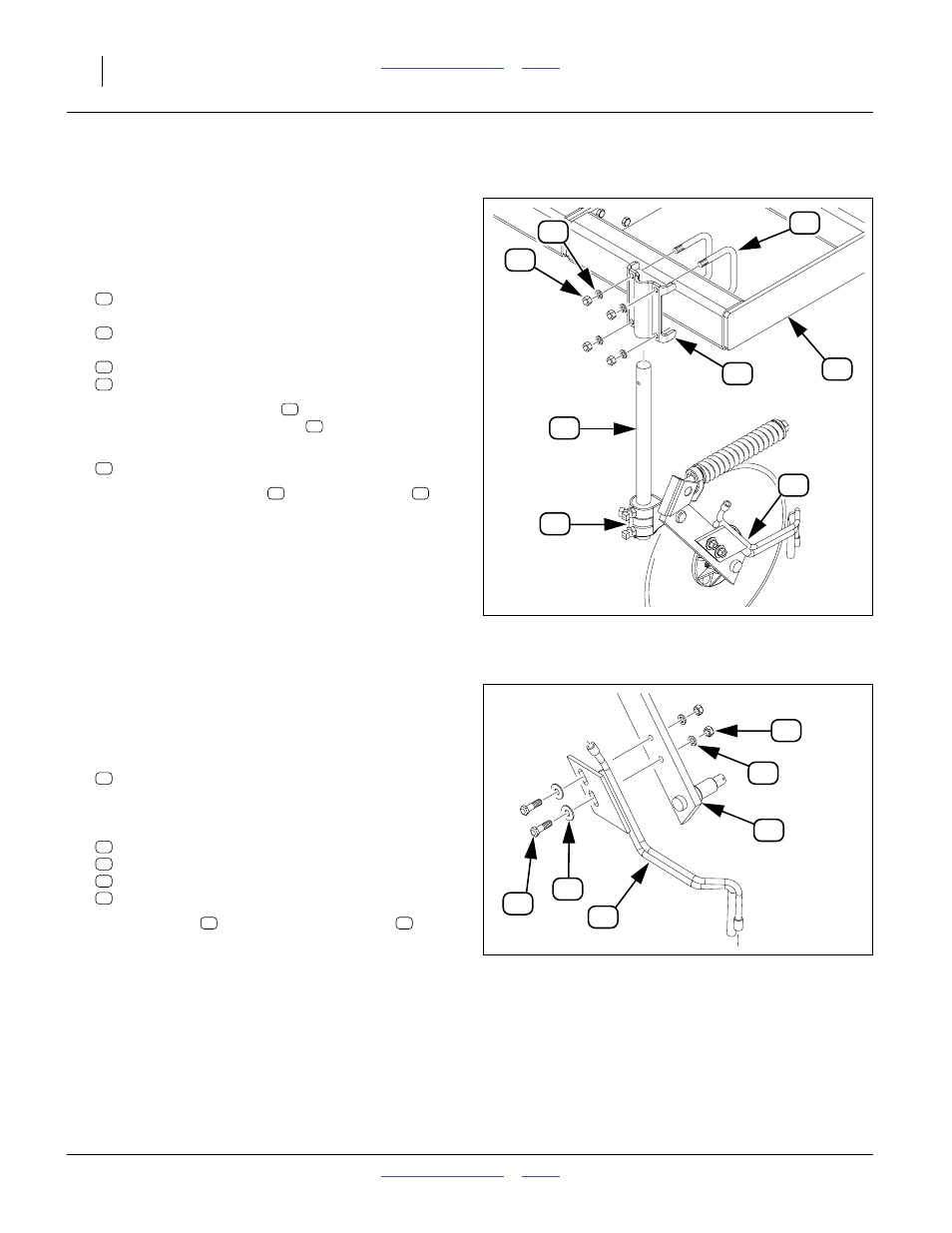

Figure 94
Side Dress Coulter Mount
32024
51
24
30
29
26
12
55
58
24
58
55
51
24
30
29
26 24
Figure 95
Install Applicator Attachment
31925
11
50
54
12
20
18
12
18
20
54
50
12 11
