Console Installation
Refer to Figure 85
The fertilizer applicator’s optional Raven SCS-450 flow
controller system includes a console
that needs to be
mounted in the cab of the tractor to be used with the
fertilizer applicator.
The monitor includes cables for power
, speed
sensor
and sensor harness
. Installation
instructions are found in the included 016-0159-831
Raven SCS-450 Installation, Operation and Service
manual manual.
Power color code is:
+ positive: red
- negative: black
The included bracket
requires customer-supplied
fasteners.
The SCS 450 requires some initial data about your
sprayer and tractor prior to first use. See “SCS 450
Setup Data” on page 46.
This data is retained as long as the SCS 450 remains
connected to battery power. If power is removed for
electrical work, long term tractor parking or welding, the
data is lost and must be re-entered.
Consult the Raven manual for display interpretation and
keyboard procedures.
Transport and Field Safety Risk:
Mount the module so it is easy to monitor during application,
but does not interfere with safe operation of the tractor in the
field or on public roads.

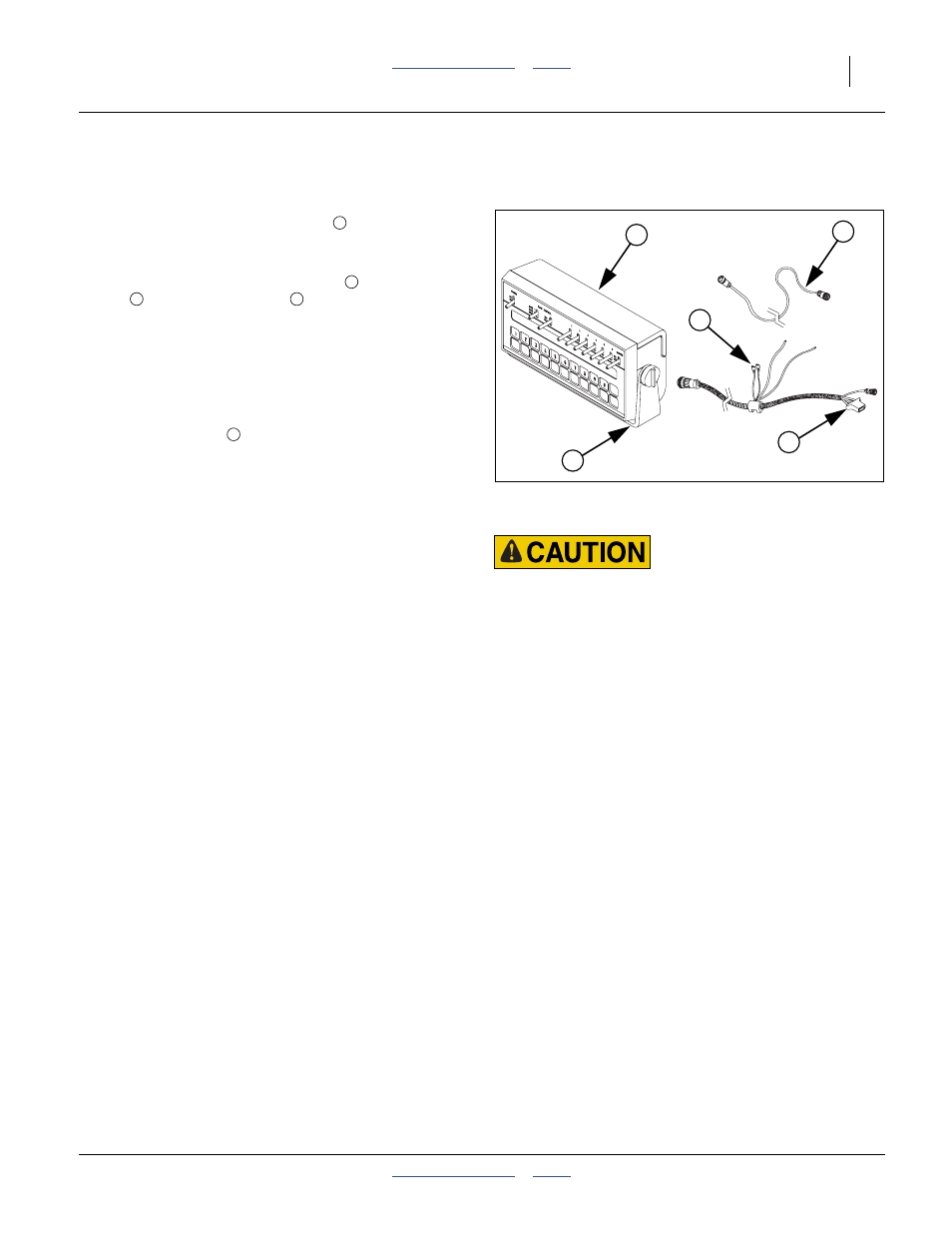

Figure 85
SCS-450 Tractor Components
27271
1
3
4
2
5
1
2
3
4
5
