8/14/2006 118-949M
59 Maintenance and Lubrication

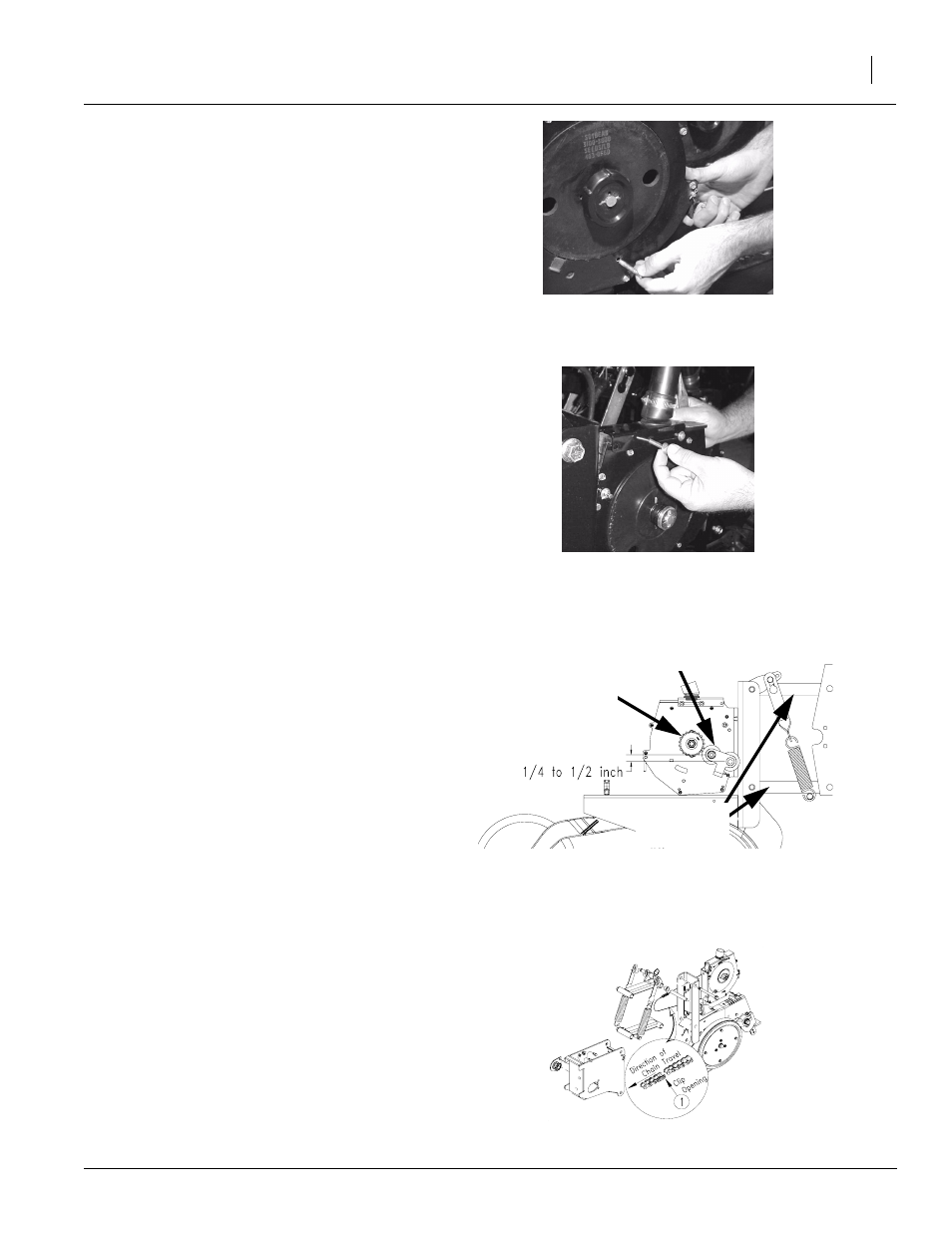

Refer to Figure 68
13. Close and pin meter clean out.
Refer to Figure 69
14. Open and pin sliding seed tube.
Refer to Figure 70
Chain Tension. The seed meter drive has a
spring-loaded idler which requires no adjusting.
However, chain stretch may make it necessary to
shorten the chain.
For best chain tension the recommended vertical
distance between chain idlers should be not less
than 1/4 inch and not more than 1/2 inch. This
measurement should be taken with opener arms
horizontal.
Refer to Figure 71
NOTE: The front idler should be below the rear
idler. Be sure chain is installed with the chain
connector link retainer towards the centerline
of the opener and the clip opening (split end)
faces the opposite way of the chain travel. See
figure A.
Figure 70
Seed Meter Chain Idlers
18421
Arms
horizontal
rear idler
front idler
Figure 68
Close and pin clean out
19192
Figure 69
Open and pin sliding seed tube
18300
Figure 71
19598
