Page 17
Great Plains Manufacturing, Inc.
Installation Instructions
13
2012-12-11
133-322M
Front Drive, Left Section

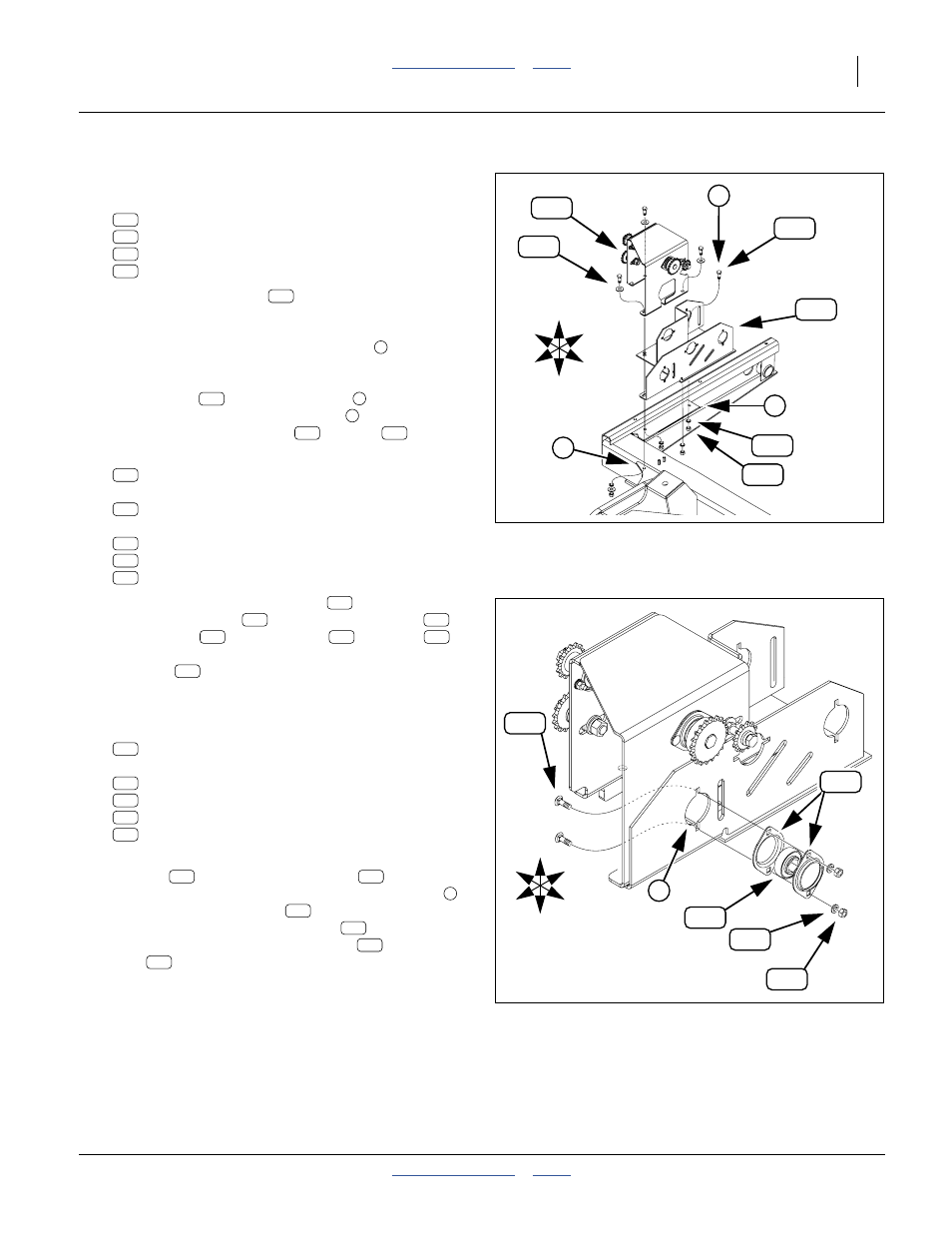

Refer to Figure 17
55. Select one each new:
195-269H 40’-3S FERT DRIVE WELDMENT RH
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
56. Position the weldment
at the front right corner
of the mainframe. Align the right edge of the
weldment against the frame side rail, and position
the front right base hole over the hole
in the
frame web.
Insert a bolt
through rear hole
of the
weldment base and frame gusset
. Loosely
secure with a lock washer
and nut
57. Select one each new:
133-324K 2600 SMLSDS RH MOUNT&DRIVE ASY
four each new:
804-113C WASHER FLAT 1/2 USS HARD PLT
and three sets new of:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
58. Position the Small Seeds drive
on top of the
fertilizer weldment
and secure with bolts
,
flat washers
, lock washers
and nuts
The front left bolt in the slotted hole takes two flat
washers
, one under bolt head and one above
lock washer.
Refer to Figure 18 (drive shown without drill frame)
59. Select one new:
822-119C BRG 7/8HEXX2.05OD SPH
and two sets new:
822-032C FLANGETTE 52 MST
802-282C RHSNB 5/16-18X1 GR5
804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT
60. At the installed Small Seeds drive, sandwich the
bearing
between the flangettes
, and mount
the assembly at the forward open flangette hole
of the fertilizer weldment
. Mount from the left
(outside the drive), with the bolts
inserted from
the right. Secure with lock washers
and
nuts
.
U
D
F
B
L
R
117
125
2
1
3
112
143
Figure 17:
Small Seeds Drive
Left Section w/o Fertilizer
27437
117
125
117
1
125
2
3
112
143
125
U
D
F
B
L
R
Figure 18:
Small Seeds Input Bearing
27442
153
4
132
152
139
128
112
117
125
143
143
153
152
128
139
132
153
152
4
117
128
139
132
