Remove Corner Hardware
Note: Older drills may have washers instead of flanged
bolts and flanged nuts. If so, save these washers as
well. They are re-used.
Left Section Corner Hardware
Refer to Figure 4
10. Remove and save two pairs of:
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
802-203C HFSS 1/2-13X1 1/2 GR5
and one each:
119-190D HANDLE
248-251D MANUAL PAK MOUNTING PLATE
Note: Do not further disassemble the manual pak .
Note: On some drills, this pak assembly may be mounted
elsewhere, and does not need to be removed for
installation of Small Seeds.
Center Section Corner Hardware
Refer to Figure 5
11. Remove and save two pairs of:
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
802-203C HFSS 1/2-13X1 1/2 GR5
four pairs (8 total):
804-016C WASHER FLAT 1/2 SAE PLT
and two:
150-138D 12’ EWNT LIGHT BRACKET
Note: Do not further disassemble the lights . Their
cables may be left connected if there is convenient
location to position them during the remainder of
the installation.
Right Section Corner Hardware
Refer to Figure 6
12. Remove and save two pairs of:
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
802-203C HFSS 1/2-13X1 1/2 GR5
and one:
119-190D HANDLE
17
17
16
16
14
11
U
D
F
B
L
R

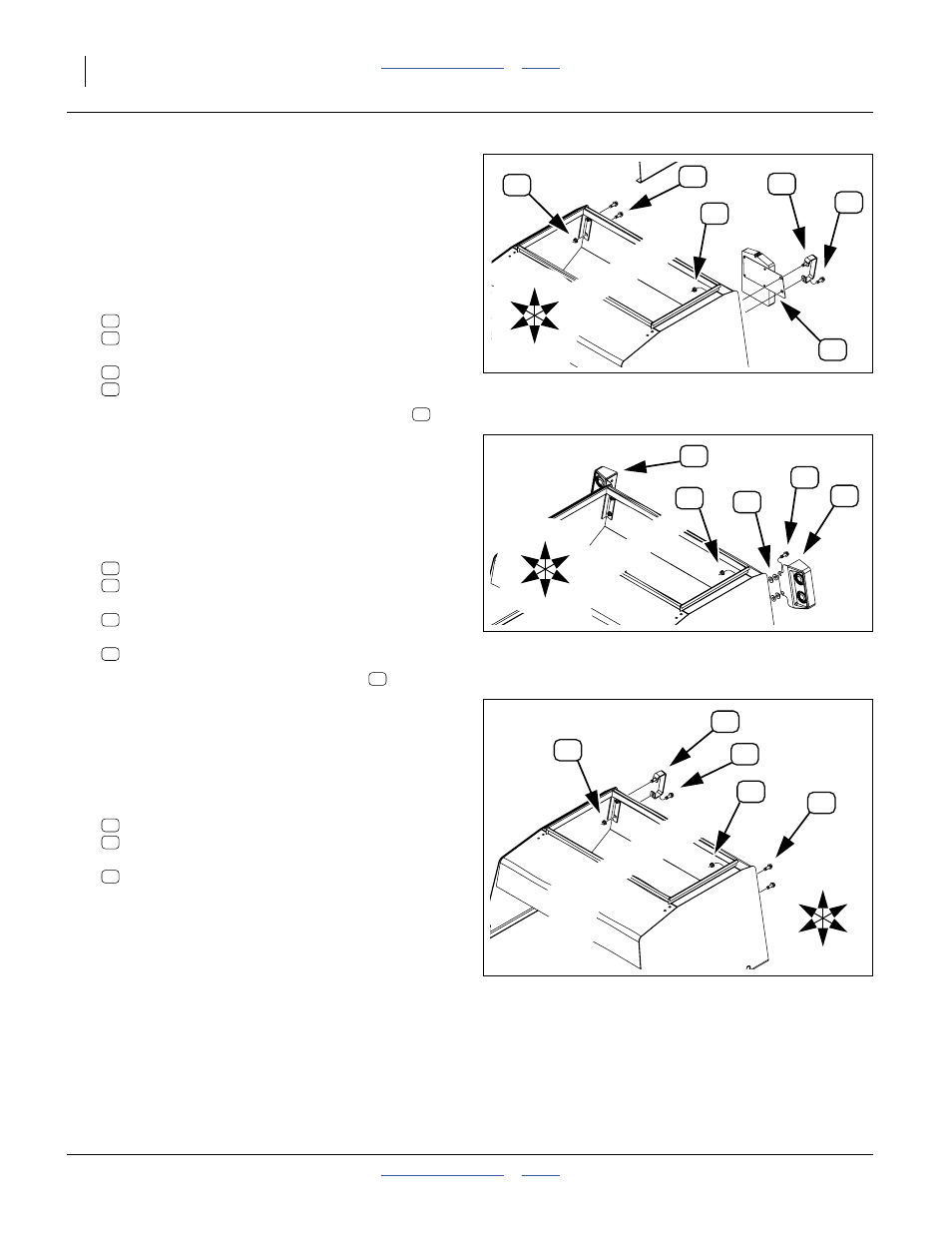

Figure 4:
