48 YP625TD and YP925TD Table of Contents Index Great Plains Manufacturing, Inc.
401-755M Table of Contents Index 02/23/2011
Marker Adjustments (Option)
See also:
• “Initial Marker Setup (Option)” on page 120 for
marker speed and marker extension
• “Marker Operation (Option)” on page 33; and,
• “Marker Maintenance (Option)” on page 85 for
marker shear bolt and marker hydraulic bleeding
Marker Disk Adjustment
Sharp Object Hazard:
Use caution when making adjustments in this area.
Marker disks may be sharp.

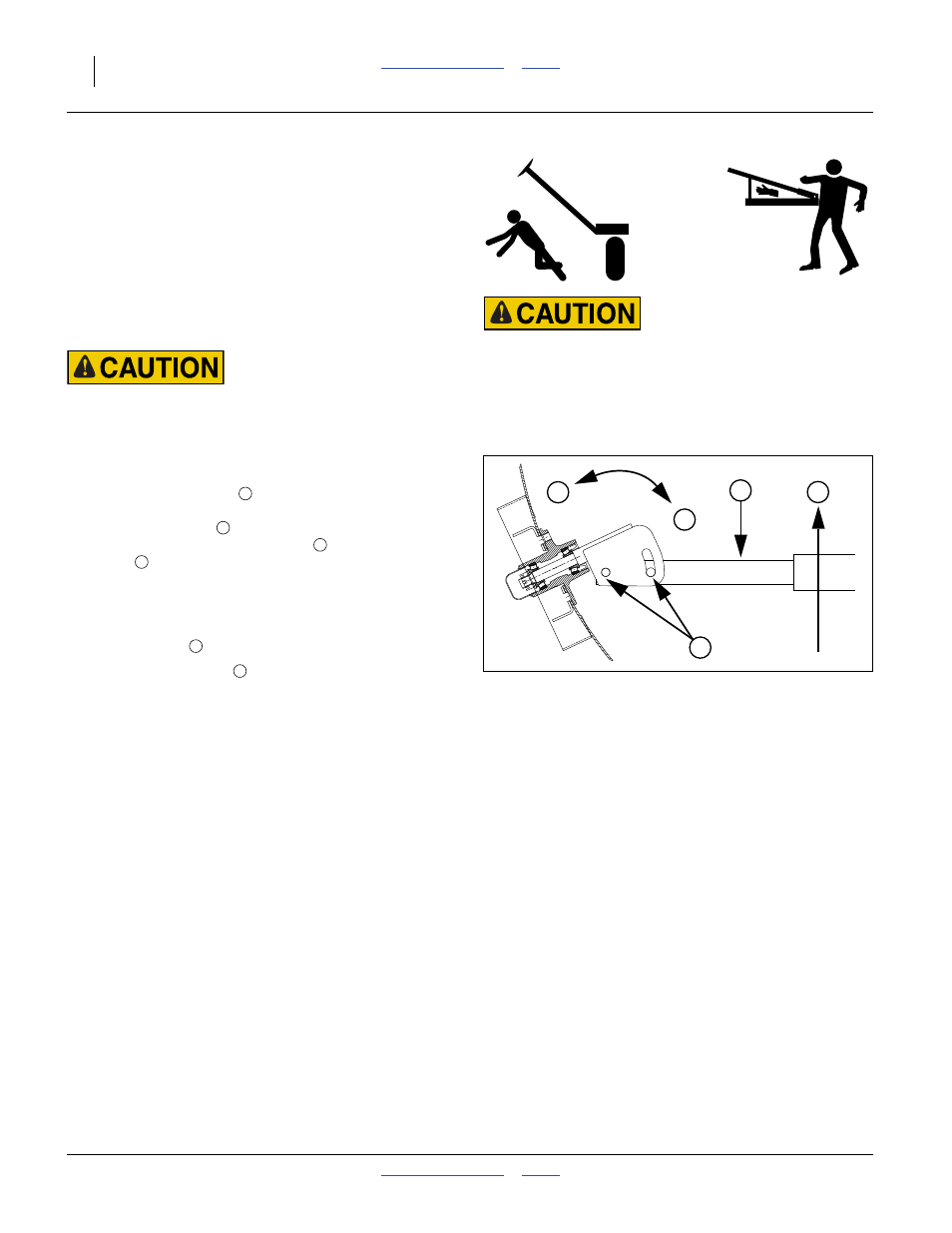

Refer to Figure 38
1.
To change angle of cut, and the width of the mark,
loosen
1 ⁄
2
-inch bolts holding the disk assembly.
For a wider mark , increase the angle of the
marker with respect to the tube . For a narrower
mark , reduce the angle.
Note: Do not set a marker angle wider than needed to
make a useful mark. Excess angle increases wear
on all marker components.
2. Tighten bolts .
Note: Direction of travel tends to drive the disk angle to
Wide. If bolts are not tight enough, or loosen over
time, disk slips into the Wide mark configuration.
Sharp Overhead Object and Pinch/Crush Hazards:
Never allow anyone near the planter when folding or
unfolding the markers. Markers may fall quickly and
unexpectedly if the hydraulics fail. Anyone beneath may be
injured if hit by an unfolding marker, or caught in a folding
Figure 38
Marker Disk Angle
11757
2
1
N
W T
2
W
1
N
2
T
