Appendix B - Initial Setup

This Appendix covers setup tasks performed only once,
or at infrequent intervals. Routine setup tasks are
covered in “Preparation and Setup” on page 14.
Perform Appendix B tasks first. Some of these items may
already have been done by your Great Plains dealer:

a.

Seed monitor console installation (below)

b.

Frame-mounted row options
(see manual supplied with accessory)

c.

Marker setup (Option, page 120)

d.

Scrapers (Option, page 122)

Seed Monitor Console Installation

Refer to Figure 97
The planter’s standard PM400 seed monitor system
includes a console

that needs to be mounted in the

cab of the tractor to be used with the planter.

Transport and Field Safety Risk:
Mount the module so it is easy to monitor during planting, but
does not interfere with safe operation of the tractor in the field
or on public roads.

The monitor includes cables for power

, speed

sensor

and sensor harness

. Installation

instructions are found in the included DICKEY-john

®

11001-1372 manual.

Power required is 12Vdc. Power color code is:
+ positive: red
- negative: black

The included bracket

requires customer-provisioned

fasteners.

Post-Delivery Checklist

1.

Read and understand “Important Safety
Information
” on page 1.

2.

Check that all working parts are moving freely, bolts
are tight, and cotter pins are spread.

3.

Check that all grease fittings are in place and
lubricated. See “Lubrication” on page 89.

4.

Check that all safety decals and reflectors are
correctly located and legible. Replace if damaged.
See “Safety Decals” on page 6.

5.

Inflate tires to pressure recommended and tighten
wheel bolts as specified. See “Tire Inflation Chart
on page 106.

ll

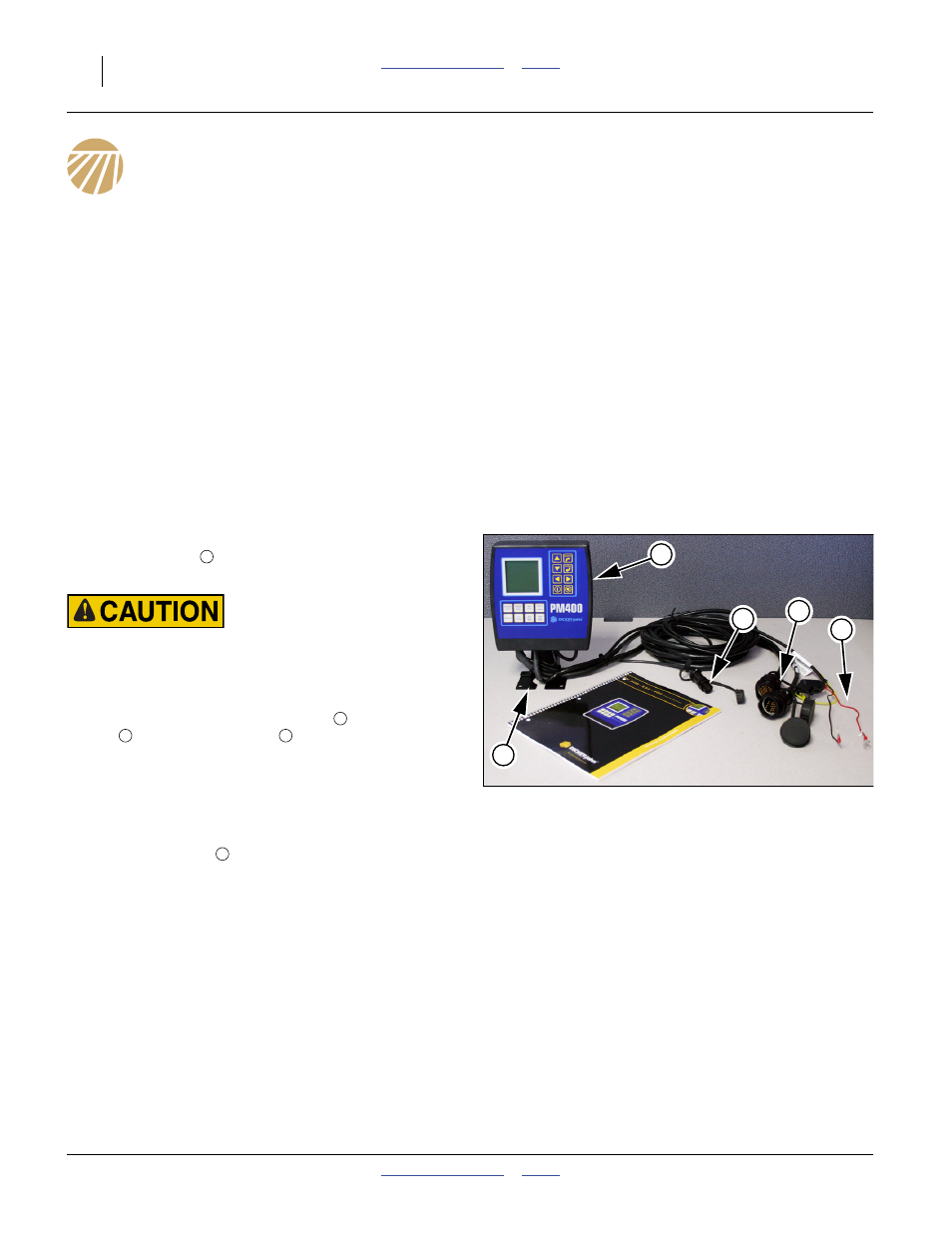

Figure 97

PM400 Tractor Components

32005

1

3

4

2

5

1

2

3

4

5
