Seed Monitor Console Quick-Start
The PM400 factory defaults need to be changed to
metric mode, the row configuration of your YP625PD/TD
and YP925TD planter, and the speed sensing used on
these planters.
The pages 117 through 119 describe setting:
• metric data mode,
• planter row count,
• planter (swath-averaged) row spacing, and;
• initial speed calibration.
The monitor must be connected to +12Vdc power to
enter these settings (the monitor does not need to be
connected to the implement harness).
See the DICKEY-john ® 11001-1372 manual for setting
limits and alarms.
Power-Up The Console
Refer to Figure 97 on page 116
1.
Connect the monitor power leads to a +12Vdc
source. Optionally connect the monitor sensor
harness
to the planter harness, and the monitor
speed sensor lead to the planter speed sensor
lead. If the harnesses are not connected, expect an
error screen at step 2.
Refer to Figure 98
2.
Press the power On/Off key .
Wait for the power-up screen to complete.
If the next screen displayed is the Operate screen,
continue at step 4.
Refer to Figure 99
3.
If an error screen appears, with an alert tone, press
either the Alarm Cancel
or the ESCAPE keys
to silence the alert and display the Operate screen.
Set Metric Mode
4. Press the DISPLAY & SERVICE key.
5. If the icon pair at the lower left is , metric
mode is already set. Skip to step 10.
Refer to Figure 100
6.
Press the Down Arrow key twice to highlight the
Units icon.
7. Press the ENTER key to modify the Units.
8. Press either the Up or Down Arrow ( or ) to
change the large “E” to an “M” as shown in
Figure 100 .
9. Press the ENTER key to save this change.

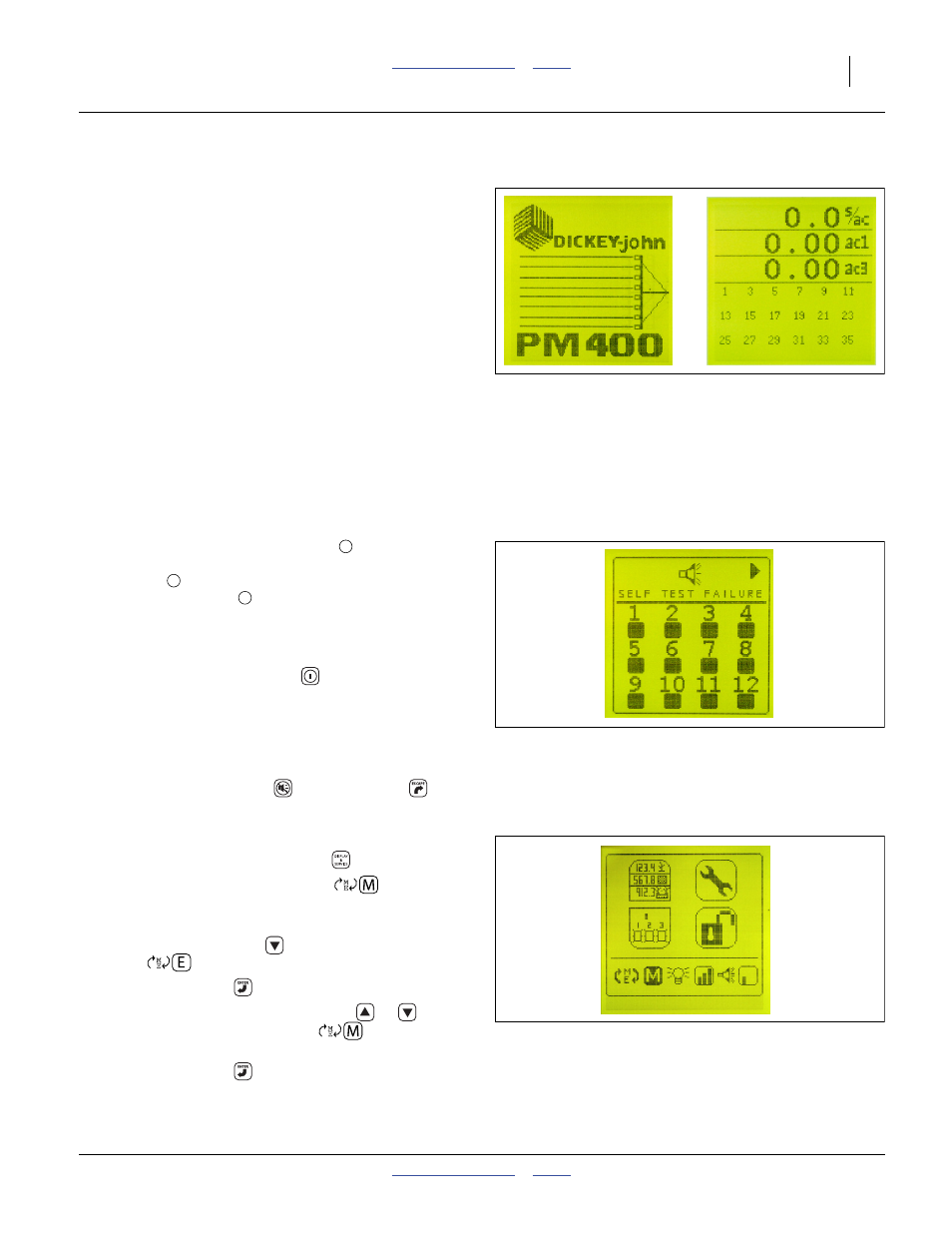

Figure 98
Power-Up, Operate Screens
31928
31930
Figure 99
Error Screen (No Harness)
31929
2
4
3
Figure 100
Display: Metric Mode Set
31933
