Set Planter Row Count
The PM400 supports three row configurations
pre-defined by you.

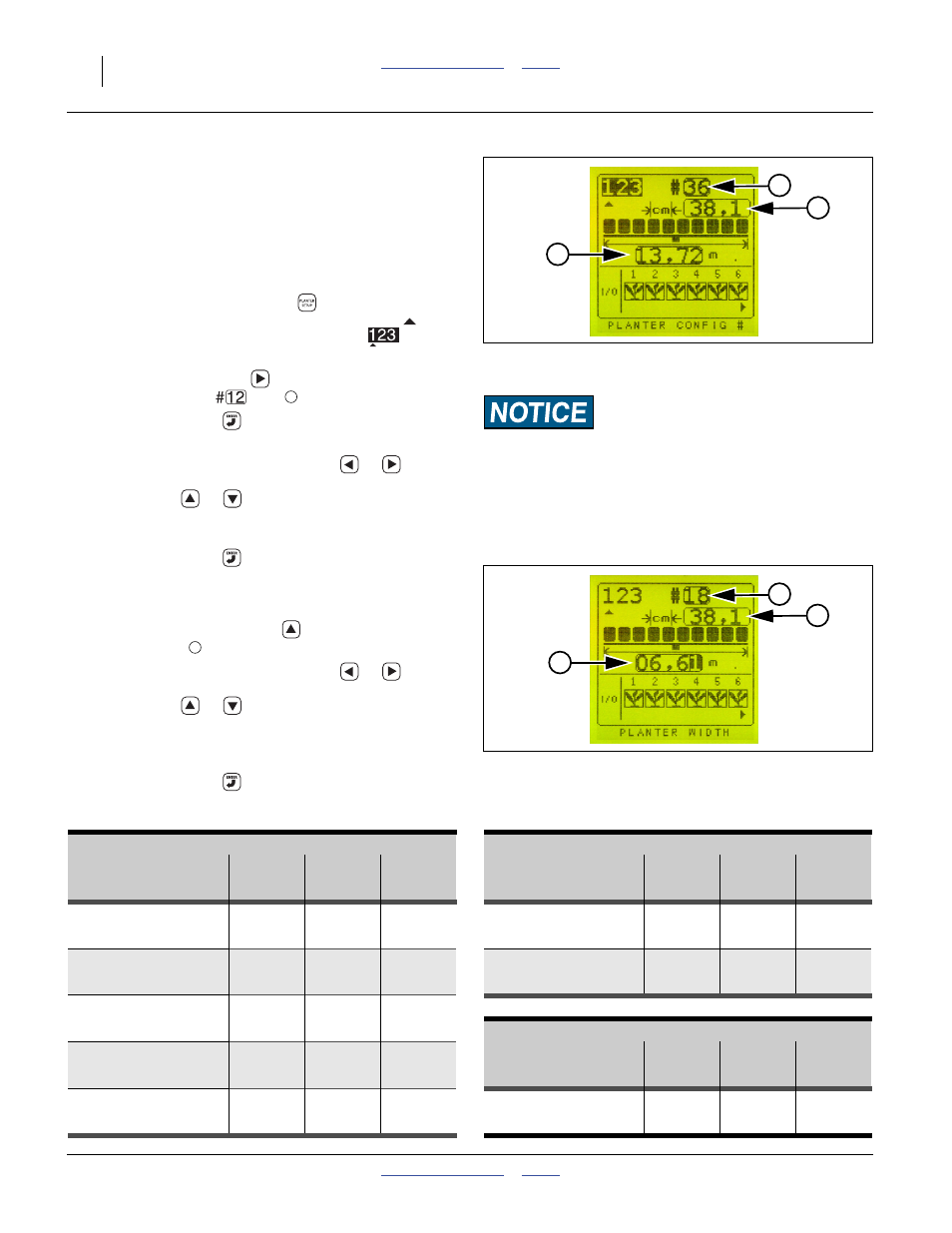

Refer to Figure 101
At first power-up, the PM400 usually has an incorrect row
count for your planter. The row spacing usually defaults
to 15 inches (38.1 cm), which is also incorrect.
10. Press the PLANTER SETUP key.
Note that the Planter Configuration Indicator is
under the “1” in the Configuration block .
This change is for Configuration 1.
11. Press the Right Arrow key to highlight the
Number of Rows field .
12. Press the ENTER key to modify the # of Rows.
Refer to Figure 102 and the table below
13. Use the Left and Right Arrow keys (
or ) to
select the digits to modify. Use the Up or Down
Arrow keys (
or ) to increment or decrement.
Change the row count to the table value for your
planter model and operating configuration.
14. Press the ENTER key to save the correct row
count.
Set Planter Row Spacing
15. Press the Down Arrow key to select the Row
Spacing field .
16. Use the Left and Right Arrow keys ( or ) to
select the digits to modify. Use the Up or Down
Arrow keys (
or ) to increment or decrement.
Change the row spacing to the value from the table
on page 118 for your planter model and operating
configuration.
17. Press the ENTER key to save the corrected row
spacing.
Population Error Risk:
For twin- and triple-row, use the actual opener count and the
swath-averaged row spacing provided below. Do not use the
nominal [row-group] spacing (except for single-row
operation). The monitor always assumes that the data is for
single-row spacing, which is incorrect for twin-row and
Figure 101
Planter Default Setup
31934
a
b
c
a
Planter YP625PD18TP110, YP625TD18TP110 Planter Model: YP625TD12TR110
Models: # of Row # of Row
Spacing Used Rows Spacing Swath Spacing Used Rows Spacing Swath
110cm Triple
18 36.7 cm 6.60 m
110cm Twin
12 55.0 cm 6.60 m
All Rows All Rows
110cm Single
6 110.0 cm 6.60 m
110cm Single
6 110.0 cm 6.60 m
Center Rows Left Rows
110cm Twin
12 55.0 cm 6.60 m
Left Pairs Planter Model: YP925TD0965
110cm Twin
12 55.0 cm 6.60 m
# of Row
Right Pairs Spacing Used Rows Spacing Swath
55cm Single
12 55.0 cm 6.60 m
65cm Single
9 65.0 cm 5.85 m
Outside Rows All Rows
Figure 102
18-Row Triple-Row
31936
a
b
c
b
