Section 1: Assembly

12/15/2004

Series I 1000TT- 4000TT Turbo-Till 586-043M

21

40’ Outside Wing Assembly

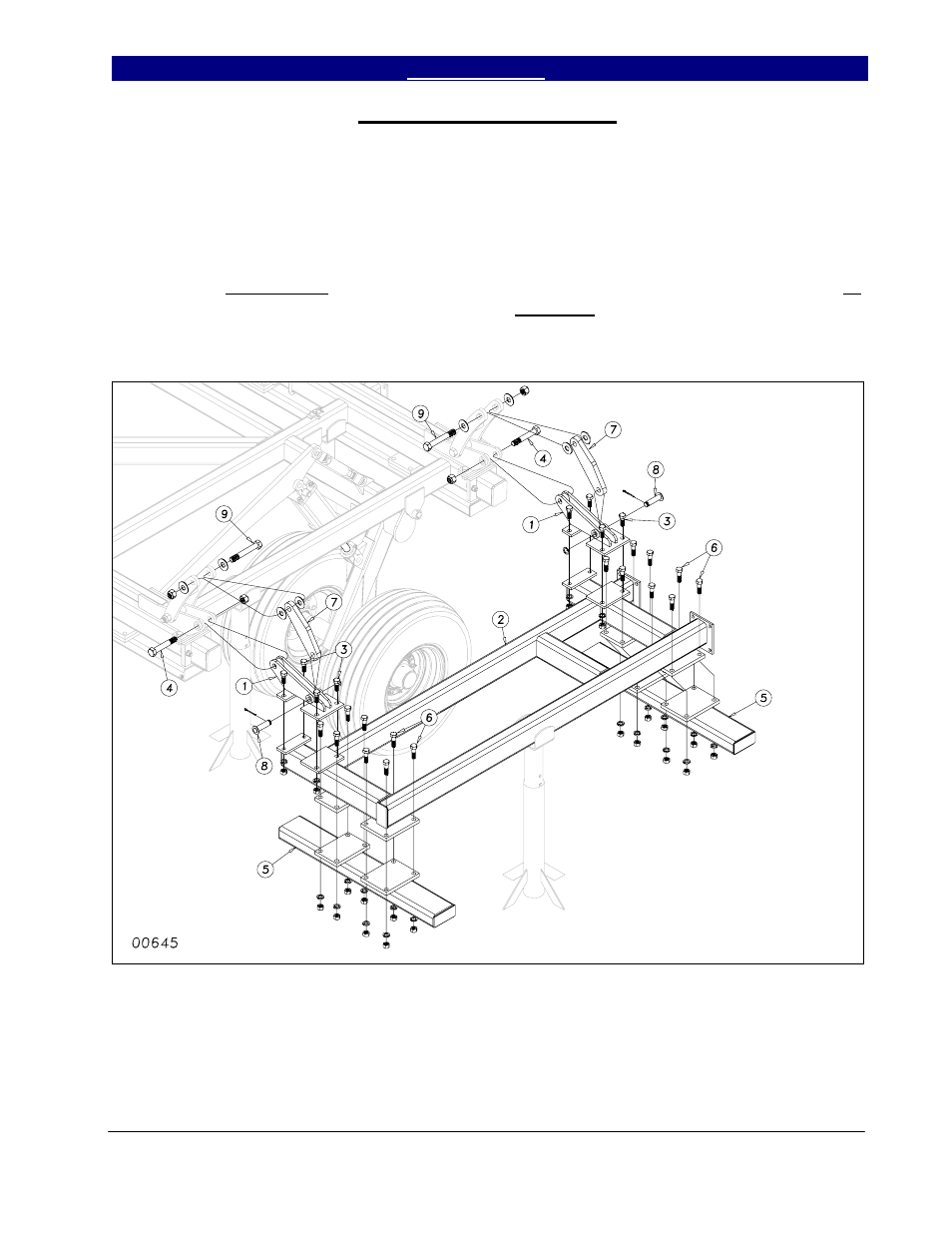

Bolt the outside wing fold bracket (1),

Figure 8, to the outside wing (2) using 3/4 x 2
hex bolts (3) using hex nuts and lock washers.
Attach the outside wing assembly to the
inside wing using two 1 x 6 special hex bolts
(4) using nylon lock nuts. Draw the nuts
down tight but do not torque. Bolt the front
and rear gang hanger bars (5) to the outside
wing with ¾ x 2½ hex bolts (6) using hex

nuts and lock washers. Pin the rocker links (7)
to the outside wing fold brackets (1) using 1 x
3 3/8 usable clevis pins (8), machine washers
& 3/16 x 2 cotter. Finally, bolt the rocker link
(7) to the inside wing assembly with a 1 x 7
Gr. 8 hex bolt (9), use four flat washers as
shown and secure with a 1” nylon lock nut, do
not torque
.


Figure 8
