Page 21

Great Plains Mfg., Inc.
Section 1: Assembly
12/15/2004
Series I 1000TT- 4000TT Turbo-Till 586-043M
19

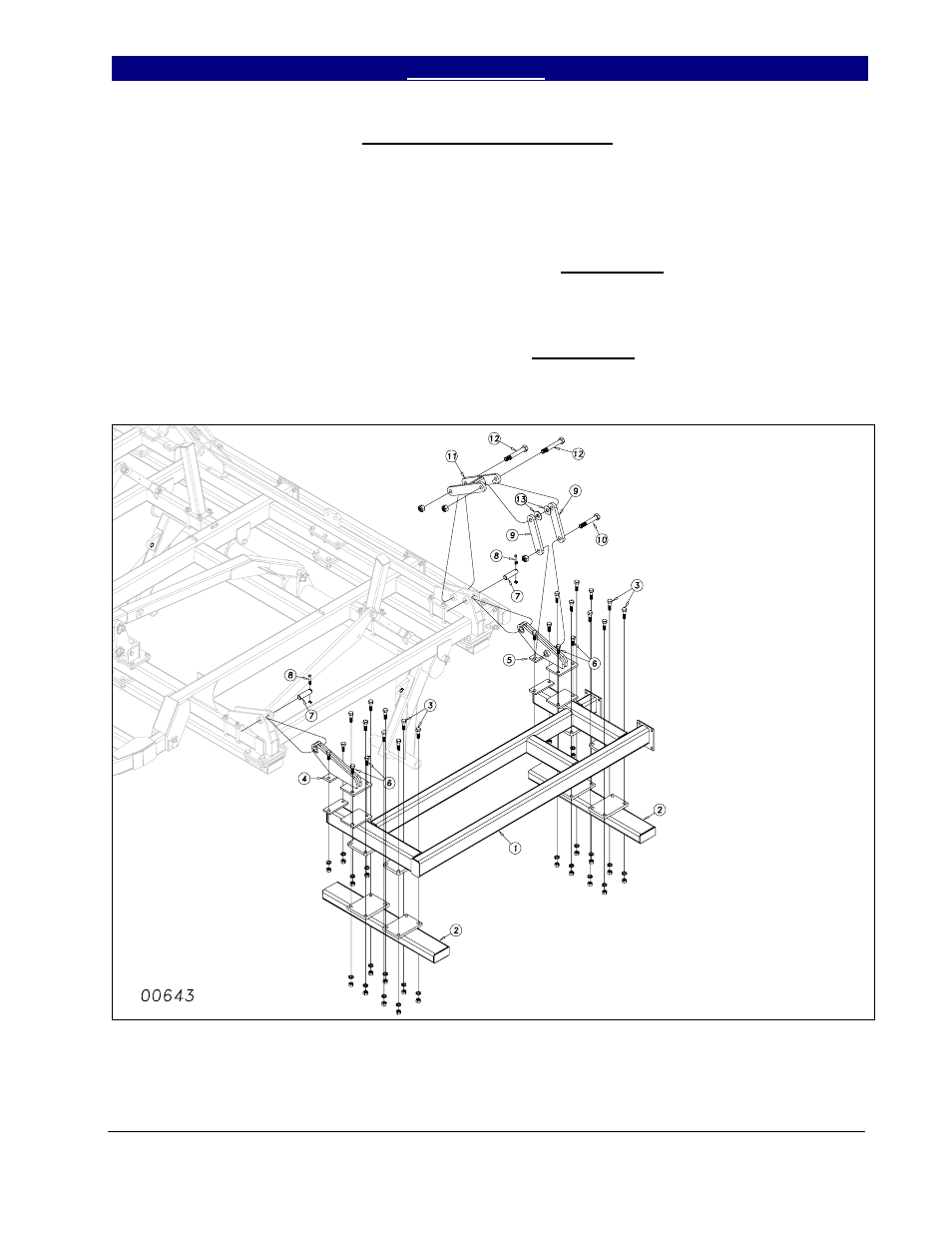

1700TTX* Wing Assembly
Place the 1700TTX* wing frames (1)
Figure 6, on stands next to the center frame.
Bolt the front and rear gang bars (2) to the wing
frame using ¾ x 2½ hex bolts (3), nuts and lock
washers. Bolt the Outside hinges, front and
rear, (4) & (5), to the wing frame with ¾ x 2
hex bolts (6) using lock washers and hex nuts.
Attach the wing assembly to the center
frame with two 1¼ x 4½ hardened pins (7),
secure with 3/8 x 2¼ Gr. 8 hex bolts (8) and 3/8
lock nuts. Bolt the two 9” fold links (9) to the
rear outside hinge (5), with 1 x 6 Gr. 8 1¾
thread hex bolts (10), secure with 1” nylon lock
nut but do not torque. Bolt the fold H-Bracket
(11) to the center fold bracket with 1 x 7¾ Gr.
8 special thread bolts (12), insert two flat
washers (13) and secure with 1” nylon lock nut
but do not torque links must rotate freely.
Figure 6
10/06/2005
* Model 1700TTX is 5 meter foreign export model, not sold in USA.
