Refer to Figure 45
16. Enter drill width (swath), in feet (ENGLISH mode) or
meters (METRIC mode), using ⇑ / ⇓ arrow buttons.
Press FUNCTION button to advance to next window.
Swath values for various row spacings are found in
the charts beginning on page 127. Your value may
not be, for example, precisely 40.0 ft.
The controller uses this value to determine the cali-
brated motor rate-vs-ground speed needed to seed
at your desired rate.
Refer to Figure 46
17. Enter number of rows here using ⇑ / ⇓ arrow buttons.
Press FUNCTION button to advance to next window.
The controller uses this value in determining the
sample run-time (which is based on 1 row).
Refer to Figure 47
18. Enter your planned planting speed using ⇑ / ⇓ arrow
buttons. Calibration mode does not accept a speed
higher than 10 mph or 16 kph. Press FUNCTION
button to advance to next window.
Although the calibration sample is collected with the
drill stationary, the controller operates the hydraulic
drive at the same rpm that would be used in the field
for this speed.

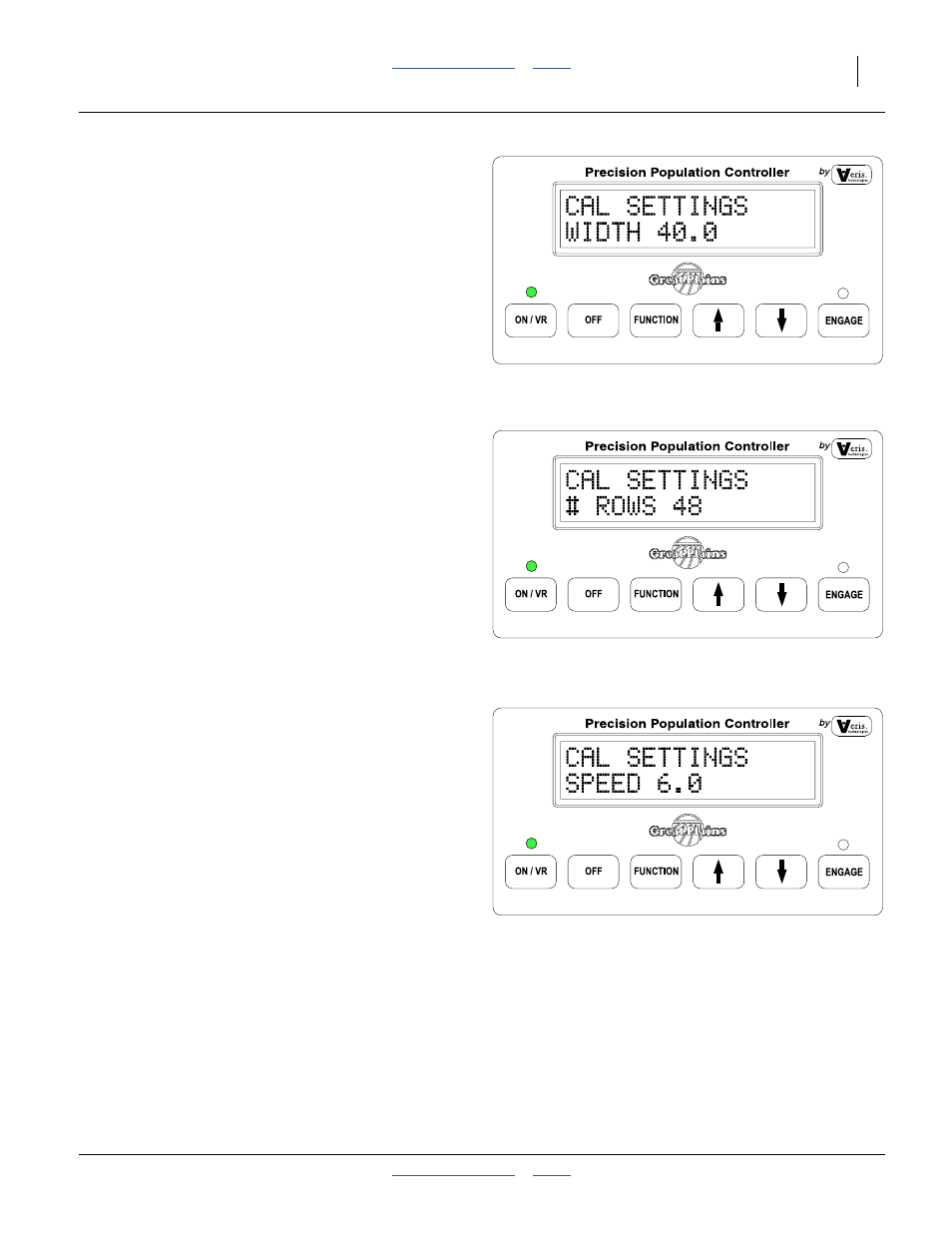

Figure 45
Cal. Mode Drill Width
28253
Figure 46
Cal. Mode Row Count
28245
Figure 47
Cal. Mode Speed
28254
