Great Plains Manufacturing, Inc. Air Drill Pre-Delivery 37
10/10/2008 196-444Q
Install Press Wheels
To meet highway clearance requirements, the press
wheel arms and wheels on rear wing rows are not fac-
tory-installed.
Start with the left end of the left wing.
124. Select one each:
Arm and press wheel assembly (exact part
number vary, depending on drill row option)
198-137D PRESS WHEEL PIVOT TUBE
and two:
817-084C PARALLEL ARM PIVOT BUSHING
Insert the bushings in each side of the arm pivot.
Insert the pivot tube in the bushings.
125. Select one each:
802-421C HFS 1/2-13X3 3/4 GR5 SPTHD
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
Align the press wheel assembly with the pivot
hole in the opener frame. Secure with bolt and
lock nut .
126. Repeat step 124 and step 125 for each rear wing
row.
Install Options
If any of the following were ordered with the drill, they are
factory-installed. If they were ordered as separate field-
install kits, install them now:
• Frame-Mounted Coulters
• Coulter Tines
• Seed Firmers
Hold-Down Kits
Install these per the instructions included with the kits:
122-017M HOLD DOWN INSTALLATION MANUAL
Hitch Air Cart to Drill
127.See “Hitching ADC2350B to Leading Drill” in the
Air Cart Operator manual.

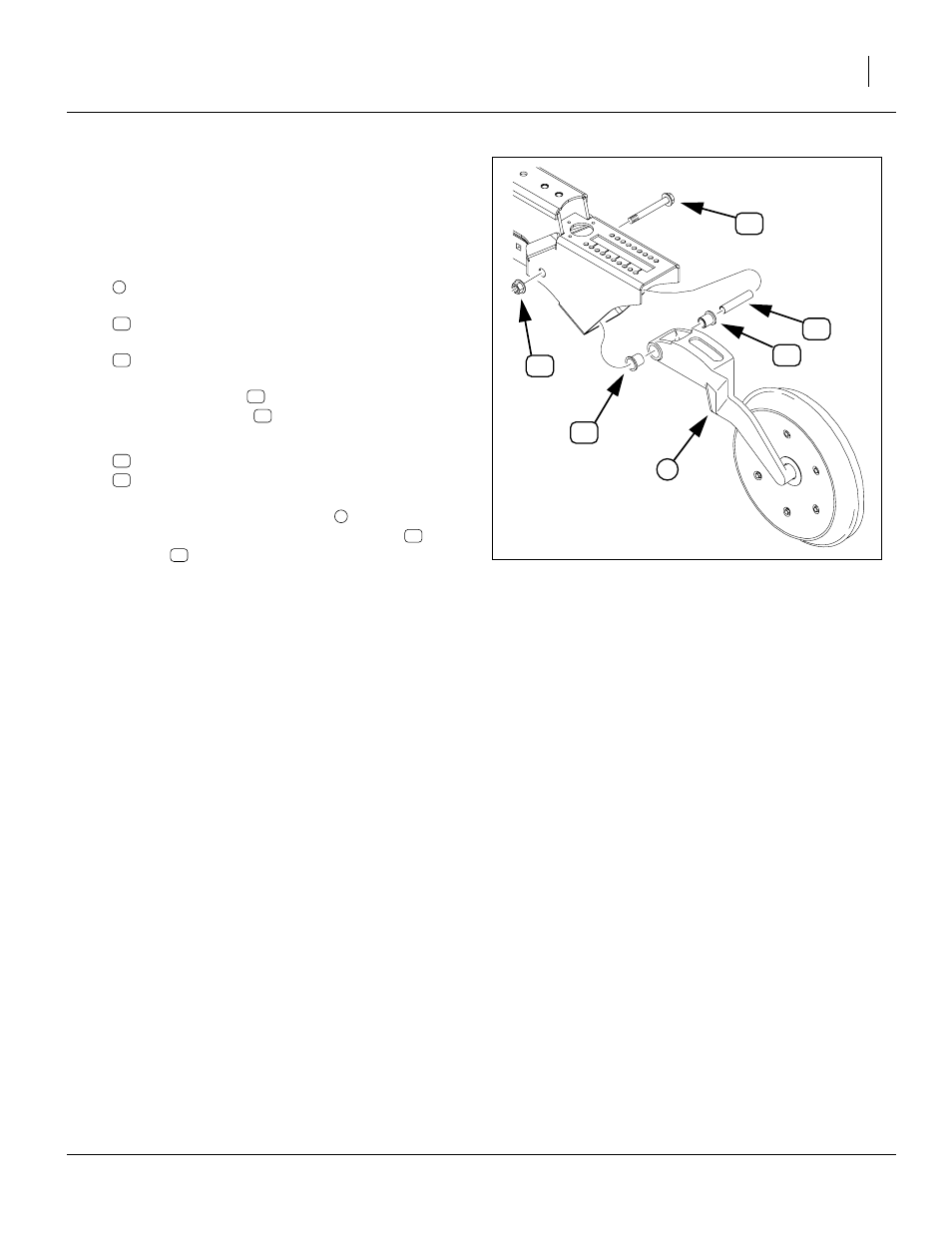

Figure 49
Typical Press Wheel Assembly
28205
26
37
61
61
44
1
1
26
61
61
26
37
44
1
37
44
