Page 21

Great Plains Manufacturing, Inc.

Air Drill Pre-Delivery

10/10/2008

196-444Q

Install Hydraulic Hoses

Refer to Figure 15

57. If the hose bracket:

166-701D

PULL BEHIND CART HYD HOSE BRKT

is not pre-installed on the bulkhead

, select it.

Whether pre-installed or not, notice that it has three
slightly different holes:

for sump return hose
for fan/auger pressure hose
for seed monitor

Refer to Figure 16 and Figure 15

58. If the hose bracket:

166-701D

PULL BEHIND CART HYD HOSE BRKT

is not already installed on the bulkhead

select it, and two sets:

802-007C HHCS 5/16-18X3/4 GR5
804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT

Secure the bracket

to the bulkhead

with the 4-

hole break facing up and to front.

59. Select one:

806-192C U-BOLT 5/16-18X1 1/2X2 1/2 RND

two sets:

804-009C WASHER LOCK SPRING 5/16 PLT
803-008C NUT HEX 5/16-18 PLT

and four (4):

804-010C WASHER FLAT 5/16 USS PLT

60. Route the sump return hose

(the larger of the two

hoses) through the larger (left end) hole

of the

hose bracket

. Secure with U-bolt

, flat washers

, lock washers

and nuts

61. Select two:

800-044C SNAP RING EXT 1 1/2 SHAFT

62. Route the fan/auger pressure hose

to the bracket

hole adjacent to the sump return inlet. Secure with a
snap ring

on either side of the bracket.

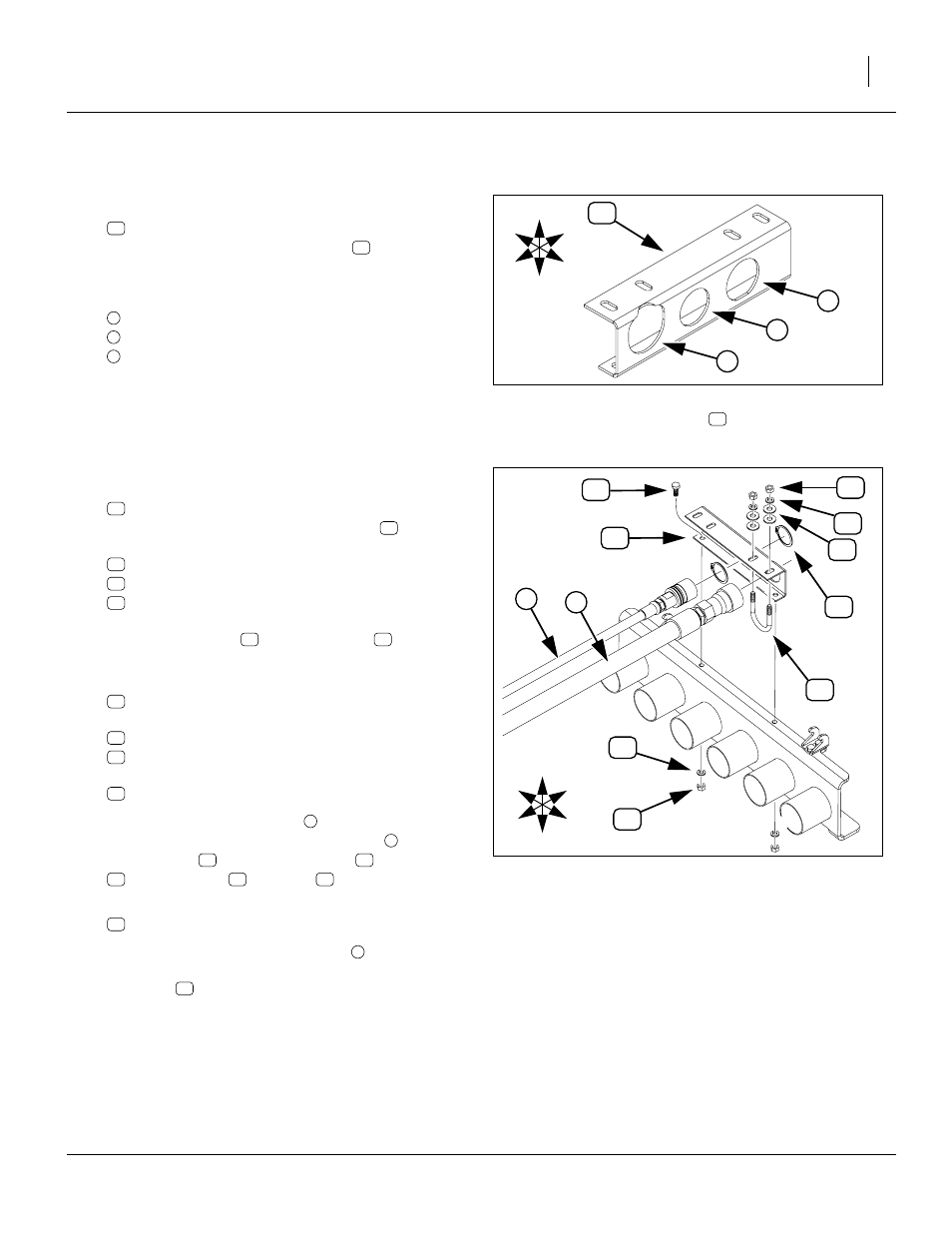

Figure 15

Hose Bracket

Ports

28192

Figure 16

Rear Hitch Hose Bracket

28190
