22 3N-4010HDA and ADC2350B Great Plains Manufacturing, Inc.
196-444Q 10/10/2008
Refer to Figure 20 and Figure 17/18 on page 20/21
64. Select one each:
196-923D CENTER AIR TOWER MOUNT PLATE
196-925D CENTER TOWER MOUNT BOLT PLATE
and four (4) sets:
802-041C HHCS 1/2-13X3 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Secure the mount plate to the center frame side
tube at the reinforced slotted hole . Center the
mount plate in the slot.
65. Repeat step 63 and step 64 for the right side of the
drill.

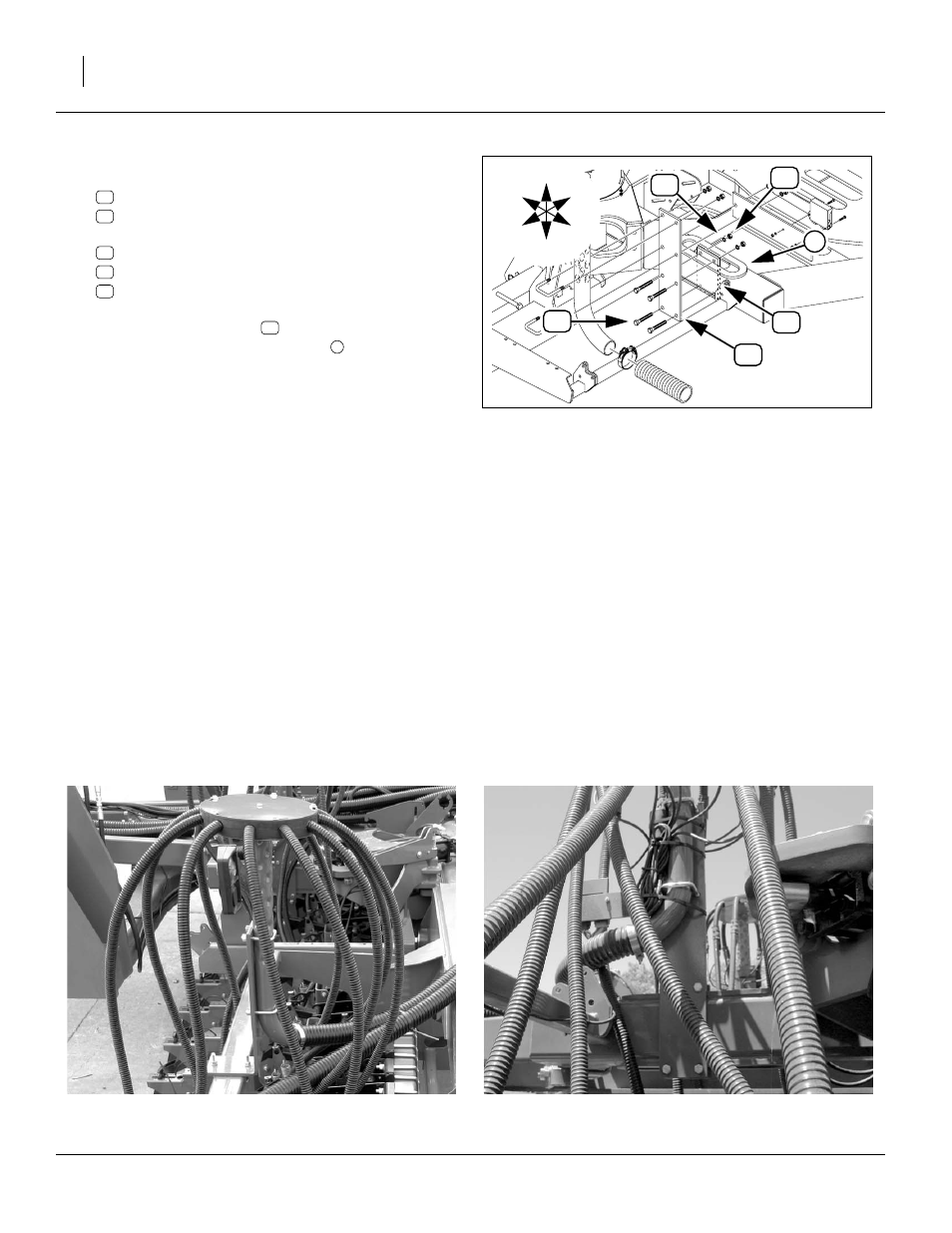

Figure 20
Tower Mounts, Left Center
28182
24 32
50
39
U
D
L
R
B
F
23
s
23
24
32
50
39
23
s
Figure 21
Tower Mounts, Left Mid-Wing and Center-Right
28183
