20 3N-4010HDA and ADC2350B Great Plains Manufacturing, Inc.
196-444Q 10/10/2008
Install Towers
Dimensions
Refer to Figure 17, Figure 18 and Figure 19 on page 21
All lateral measurements are from outside end of tubes
to centerline of mount location. Tower placement on right
wing is a mirror image of left wing.
Lateral Tower Location (Figure 17)
Tower Inlet Angle (Figure 17)
Tower Height (Figure 18)

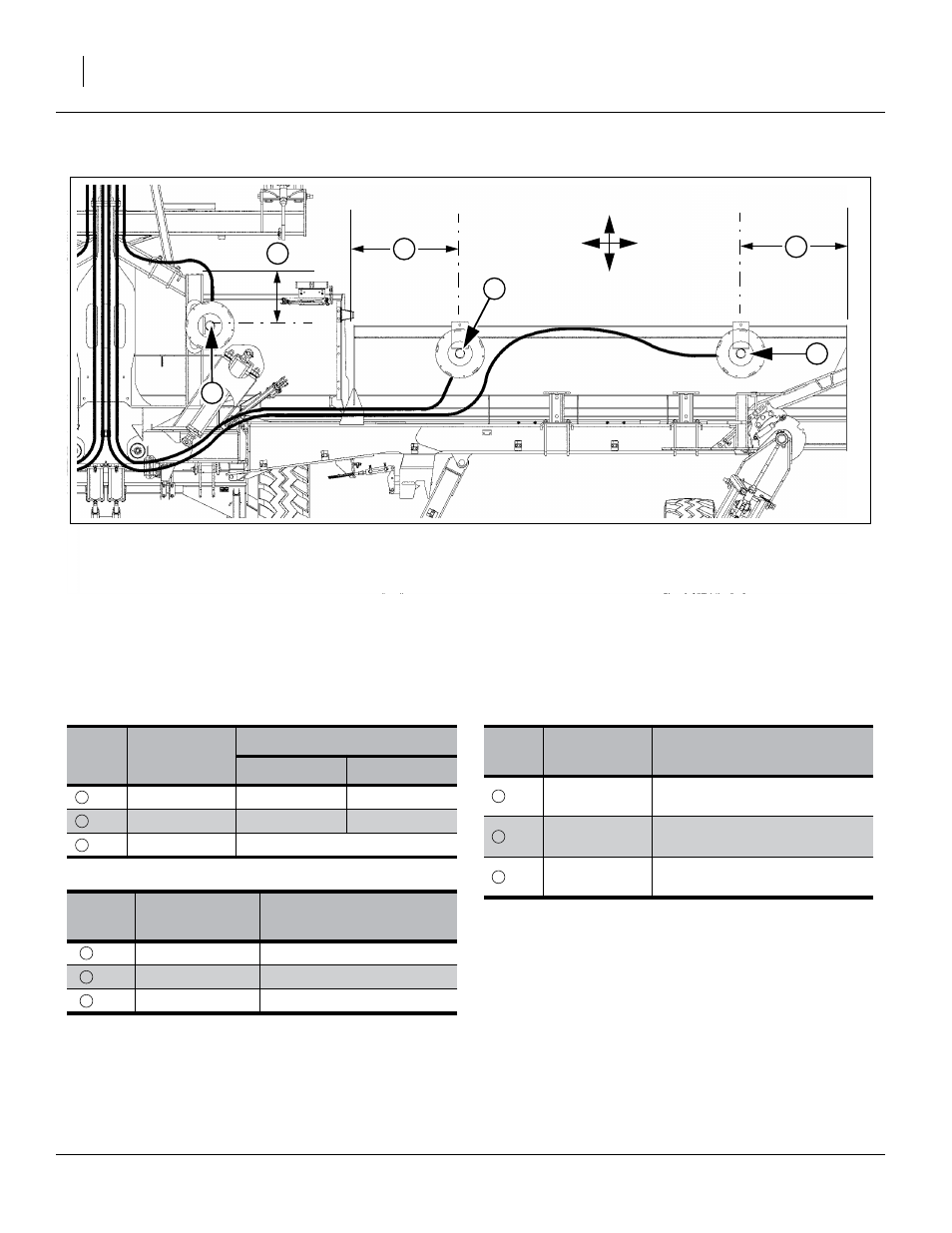

Figure 17
Tower Placement, Left Wing
27235
3
2 1
b
c
a
B
F
L R
Tower
No.
Location
Name
for Row Spacing
7.5in (19cm) 10in (25cm)
1, 6 Wing, Outside 50in (127cm) 40in (100cm)
2, 5 Wing, Inside 40in (100cm) 40in (100cm)
3, 4 Center Center in Slot
Tower
No.
Location
Name
Inlet Angle
1, 6 Wing, Outside to drill center
2, 5 Wing, Inside front, 45 ° toward center
3, 4 Center to rear
1
2
3
a
b
c
Tower
No.
Location
Name
Height and Reference
1, 6 Wing, Outside
33in (83.8cm)
to top of 4x2in tube
2, 5 Wing, Inside
35in (88.9cm)
to top of 4x2in tube
3, 4 Center
33in (83.8cm)
above tube slot reinforcing ring
x
y
z
