The Musica MU5066 keypads also feature an expansion slot for a Musica Digital FM Tuner Card
(sold separately) for FM Tuner listening in the local room in which the keypad is installed.

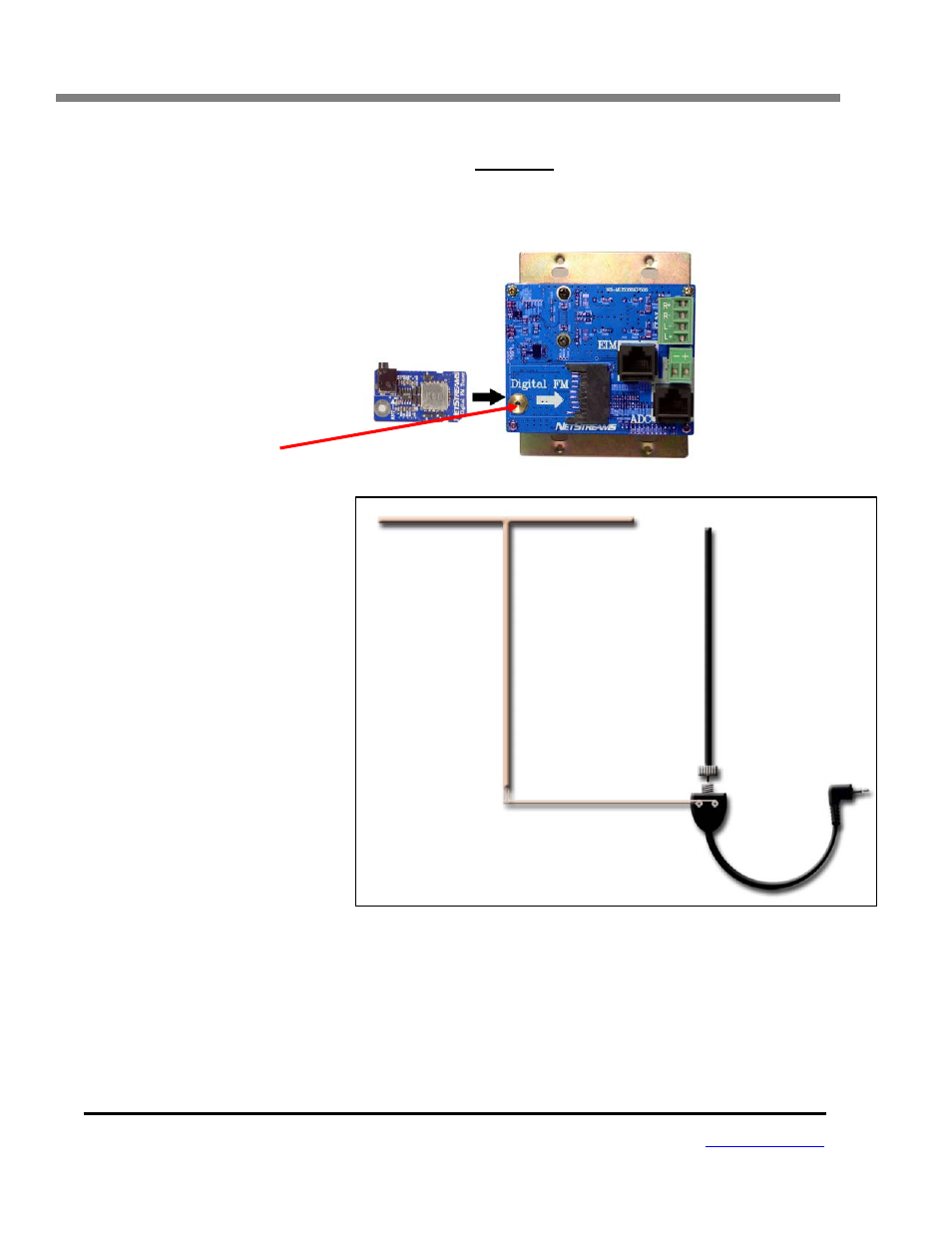

5.1 Inserting the MU5066DFMT Digital FM Tuner Card into the socket on the keypad:
5.2 Installing the FM
Antenna:
The Musica MU5066DFMT
includes a dipole FM
Antenna for mounting in-
between studs in the wall,
as well as a RG6
connection for connecting
to an aftermarket FM
antenna. For best
reception, NetStreams
recommends the use of
a Coax connection from
an FM antenna mounted
in the attic or roof.
The 3.5mm jack on the FM
antenna connects to the
3.5mm jack on the PCB
board of the keypad itself.
Then use either the dipole
antenna (included) OR the
RG6 connection from an
antenna in the attic or
structured cable box.
The Digital FM Tuner
(DFMT) slides into the slot
on the back of any
MU5066 Keypad with the
NetStreams Logo on the
tuner card
facing up.
Use the thumb screw to
secure the tuner card
once in place.
