MUSICA KEYPAD AMPLIFIER PARTS GUIDE

All specifications subject to change without notification. All rights reserved. Copyright©2007 NetStreams

Main +1 512.977.9393 / fax +1 512.977.9398 / 3600 W. Parmer Lane Suite 100, Austin, TX 78727 /

www.netstreams.com


NS-0505-7121

10

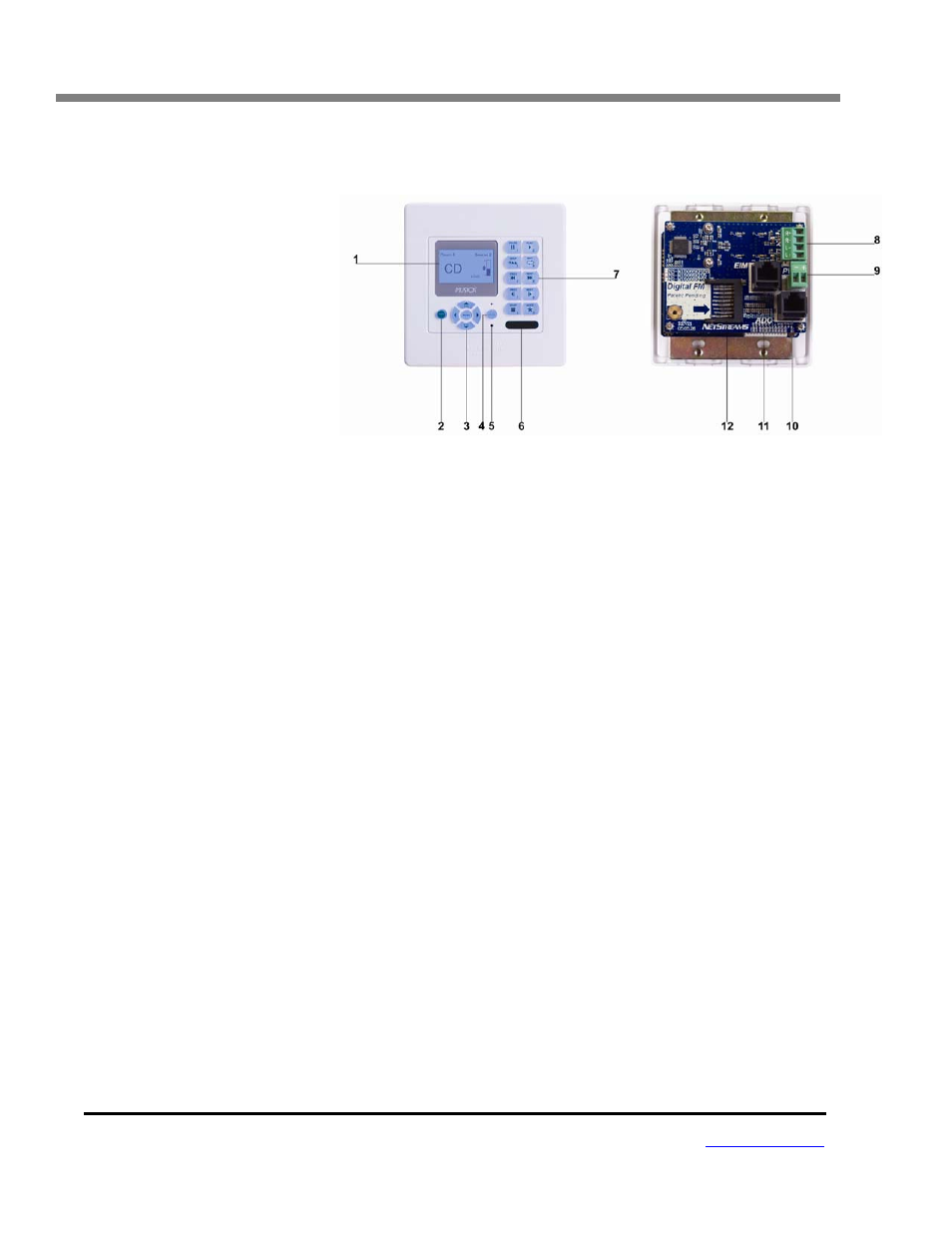

MU5066KP Keypad with Digital Amplifier

1.

LCD

Wide-screen graphic LCD user interface.

2.

PWR

Room system power
ON/OFF button; whole
system ON/OFF.

3.

Menu

Menu offers total freedom in
selecting sound, naming
source, adjusting backlight
brightness, and allows you
to program audio sources
from remotes. Automatically
returns to basic screen if
there is no input for 30
seconds. See menu list on page 13.

4.

SRCE

Browse the audio sources [S1/S2/S3/S4/EXT* / FM**] to listen.
*if optional Audio Port is connected. ** With optional DFMT FM tuner card.

5.

IR Confirmation LED

This LED will flash to confirm the reception of an IR signal from a remote control through the remote sensor.

6.

Remote Sensor

The REMOTE SENSOR is used to receive commands from an IR remote control. The IR receiver also
handles routing IR commands back to head end sources, and to the Audio Port if connected.

7.

Source Control / 10-Key Direct Tuner Access

These buttons provide you with a convenience of controlling 4 audio sources connected to the ADC. They
consist of 10 buttons and allow you to register up to 20 commands per audio source.

KEYPAD CONNECTIONS

8.

Speaker Output

4 pin 5mm Phoenix type connection.

9.

Power In

(+27V DC) 2 pin 5mm Phoenix type connection.

10.

ADC Input

8-pin RJ45 Data Jack EIA/TIA 568A.

11.

Audio Port (EIM) Input

8-pin RJ45 Data Jack EIA/TIA 568A.

12.

Digital FM Tuner Card Slot

Insert NetStreams Digital FM Tuner Card (DFMT) for local FM Tuner listening (sold separately).
