The Musica MU5066KP Display Screens

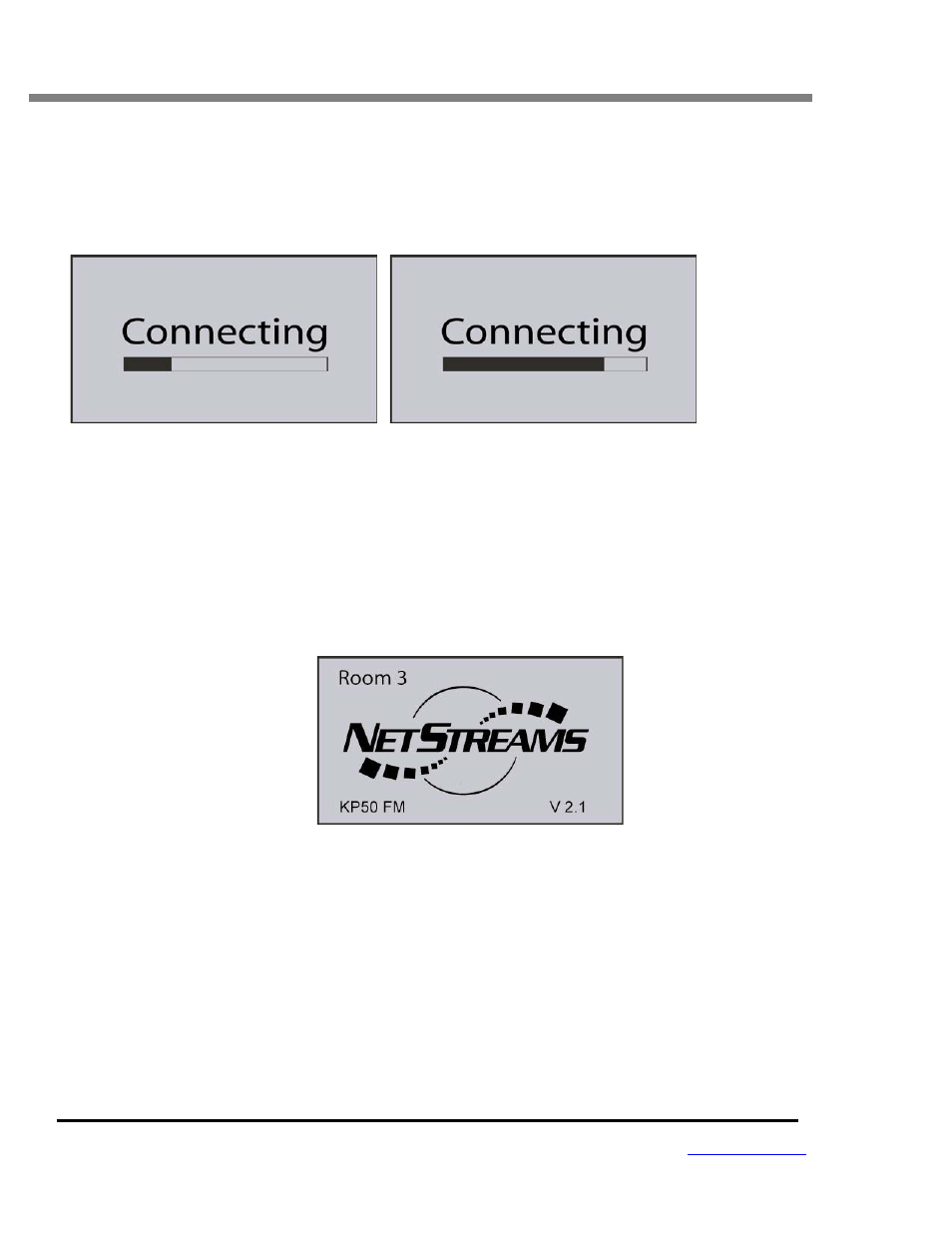

1. The Connection Screen
The first time the MU5066 Keypads are connected to the ADC are powered up, a connection screen with a progress
bar will briefly appear as the keypads attempt to communicate with the ADC. This screen will not appear anytime
afterwards unless there is trouble with the connection. For more information, see the troubleshooting section of this
manual.
The connection screen then quickly is replaced by the initial screen. Subsequent use of the keypad will show the
initial screen.
2. The Initial Screen
This is the screen that appears after the power is turned on by the POWER key or button. It shows the following
information:
• Room Number
• Model Type
• NetStreams logo
• Firmware version
3. The Basic Screen
The Initial state of the Basic Screen shows the following information:
• Name of the audio source selected
• Status of Volume and Mute
• Room name
