XAP Net — Connecting and Configuring
11
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760
XAP Net — Connecting and Configuring
10
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760
XAP Net Locator
G-Ware features a new utility called the XAP Net Locator. This utility enables G-Ware to
detect all XAP Net units on the same subnetwork and display their IP addresses. You can
select and then connect to any XAP Net unit that appears in the window.
To connect to XAP Net using the XAP Net Locator
1. Click the
XAP Net Locator
button
on the G-Ware toolbar to open the utility.
2. Click
Refresh
to update the list of detected units.
3. Select the desired unit. The Create Site
button and Use IP Address check box
are now active.
4. Select
Use IP Address
if your network
does not support name recognition
and you need to use the IP Address to
connect.
5. Click
Create Site
. The unit network settings are imported into G-Ware and the Site
Properties window opens.
6. Click
OK
to close the Site Properties window.
7. Click the
Connect
button on the G-Ware toolbar to connect to the XAP Net. Icons repre-
senting the XAP Net and units connected to the XAP Net appear in the Site pane.
8. You will be prompted to enter a user name and password. The default user name is
clearone
and the password is
xapnet
. The password and user name are not case sensitive.
If the connection is successful, icons representing the XAP Net and other connected
XAP/PSR units appear in the Site pane. If the connection is not successful, refer to the
Troubleshooting section on page 20.

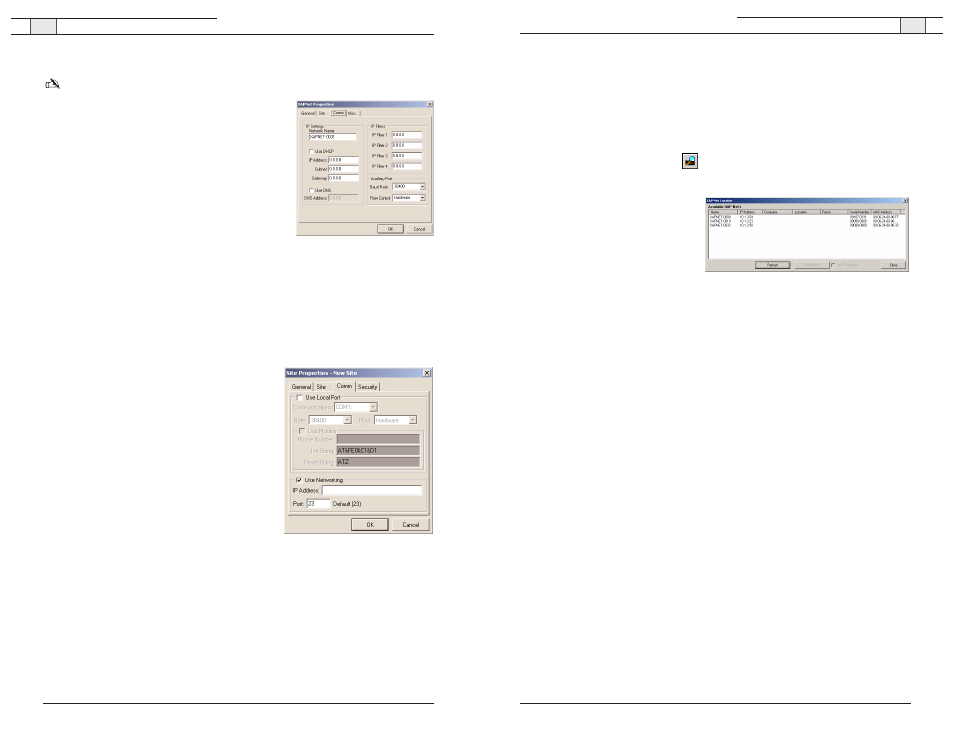

Figure 19. XAP Net Locator utility
To configure settings for network connection
Note: Contact the network administrator for network settings.
1. Open the Unit Properties window by right-clicking on
the XAP Net icon in the Site pane and selecting
Unit
Properties
from the shortcut menu.
2. Click the
Comm
tab.
3. In the IP Settings section, you will see the default
network name. If you want to use a different unique
network name, enter it in the
Network Name
field.
4. Enter the static
IP address
for the XAP Net. Your
network administrator can provide the IP address.
5. Click
OK
to close the window.
Connecting through the network with G-Ware
1. Using a Cat. 5 network cable (included), connect the XAP Net to your LAN.
2. Click the
New Site
button on the G-Ware toolbar to open the Site Properties window.
3. Click the
Comm
tab.
4. Select
Use Networking
. In the
IP Address
box, type the IP address or the unique network
name for the XAP Net.
5. Click
OK
to close the Site Properties window.
6. Click the
Connect
button on the G-Ware toolbar to
connect to the XAP Net.
7. You will be prompted to enter a user name and
password. The default user name is
clearone
and
the password is
xapnet
. The password and user
name are not case sensitive.
If the connection is successful icons representing
the XAP Net and other connected XAP/PSR units
will appear in the Site pane. If the connection is not
successful, refer to the Troubleshooting section on
page 20.
Figure 17. Unit Properties
Figure 18. Site Properties
