Quartet User’s Guide
3-2
All specifications subject to change without notification. All rights reserved. Copyright © 2007 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
Terminating a CAT5 Cable

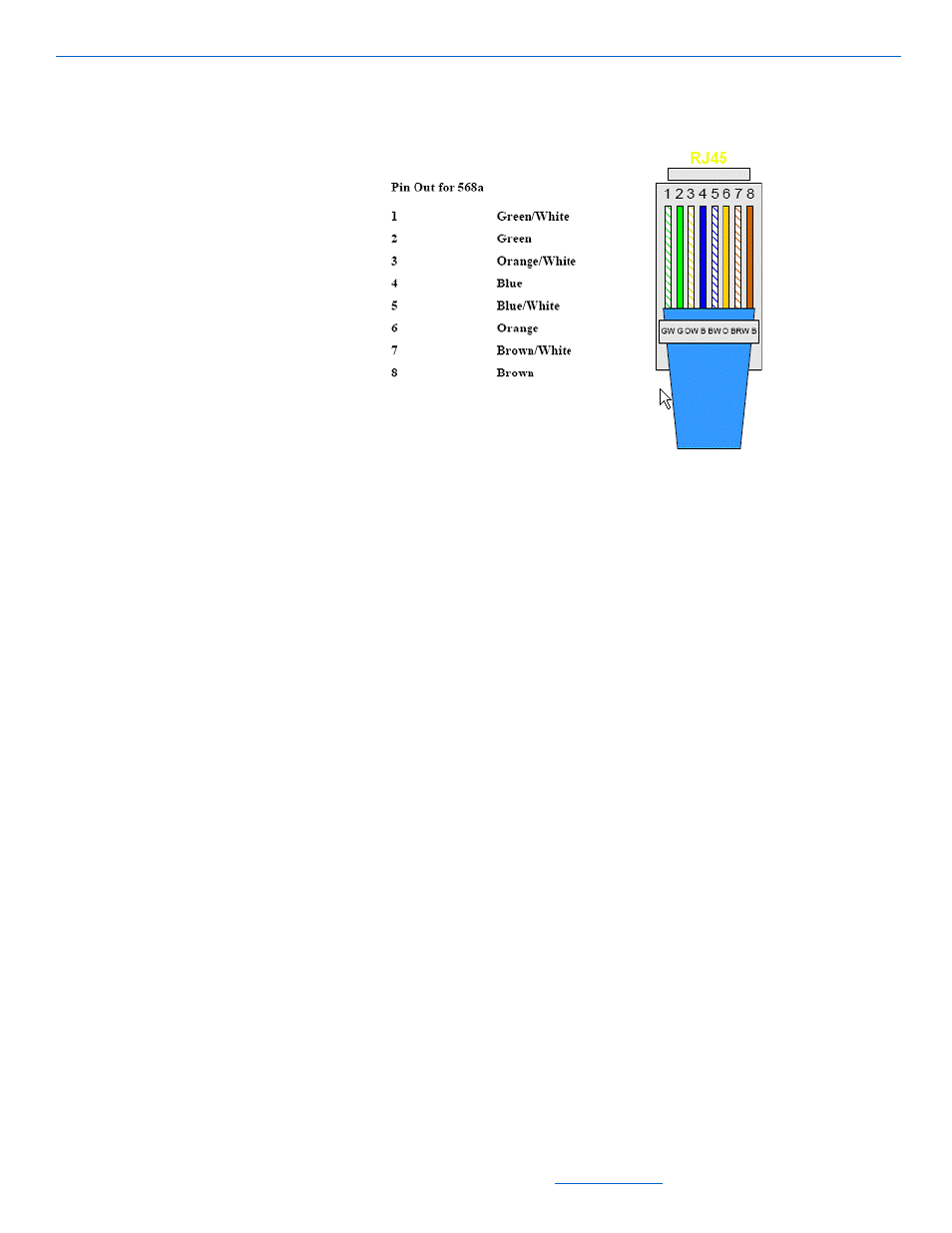

See Figure 3-2 for a diagram on how to terminate a CAT5 cable
Figure 3-2
Terminating a CAT5 cable
Installation
To get started with your new system, you must first connect the cables as follows:
1.
Connect the CAT5 cables from the back of the keypad (use connector labeled MRP
connector) then connect the other end to the back of the unit labeled R1, R2, R3,
and R4.
2.
Connect the RCA cables from the audio sources to the RCA connectors on the back
of the unit labeled S1, S2, S3, and S4.
3.
Plug the IR emitters into the connectors on the back of the unit IR1, IR2, IR3, and
IR4 and position the emitter over the IR receiver on the appropriate source.
4.
Use 14 AWG to wire 4 pairs of speakers to the 4 included phoenix connectors and
plug the connectors into the MRP under R1, R2, R3, and R4.
5.
Connect the power cable to the back of the unit.
