Quartet User’s Guide
2-4
All specifications subject to change without notification. All rights reserved. Copyright © 2007 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
4.
Four Source Connectors - provides the inputs from the 4 home-wide sources (rear
panel)
5.
Common IR Emitter/Output Connector- for IR source input. Used to mirror IR
output from all source ports, and provides partial IR control of a second MRP. (rear
panel)
6.
FM Antenna Connector (rear panel)
7.
Quartet Keypad Connectors - for the four keypads (rear panel)
8.
Four-pin Phoenix Connectors for Speakers - phoenix type connectors for four pairs
of speakers (left and right). (rear panel)
9.
AC Power Connector (rear panel)
10.
MRP Power switch - powers the MRP ON (-)/OFF(0). (rear panel)
MRP Specifications
Power
50 WPC x 8 channels @ 6 Ohms
Amp
Signal to noise ratio > 96dB
Distortion 0.04% (6 Ohms, 1KHz, 1W)
# Sources
Up to nine (9) Global
Source inputs
4 stereo pairs, (up to 4 local inputs) + 1 FM tuner
Connector
Stereo RCA jack
# Zones
Four (4) simultaneous
Dimensions:
13"x 3.5" x 8.7" (W x H x D)
(330.2mm x 88.90mm x 220.98mm)
Weight
7 lbs. 5 oz. (3.32 Kg)
Certifications RoHS,
UL
Remote Control
One Quartet Remote (MU4601RC) is included with each MRP Audio Distribution
Center. The ergonomically designed, simple to use Quartet remote control duplicates
functions of the wall-mounted keypad. The remote control also features a mute button,
and discrete power ON/OFF buttons. Additional remotes may also be purchased.

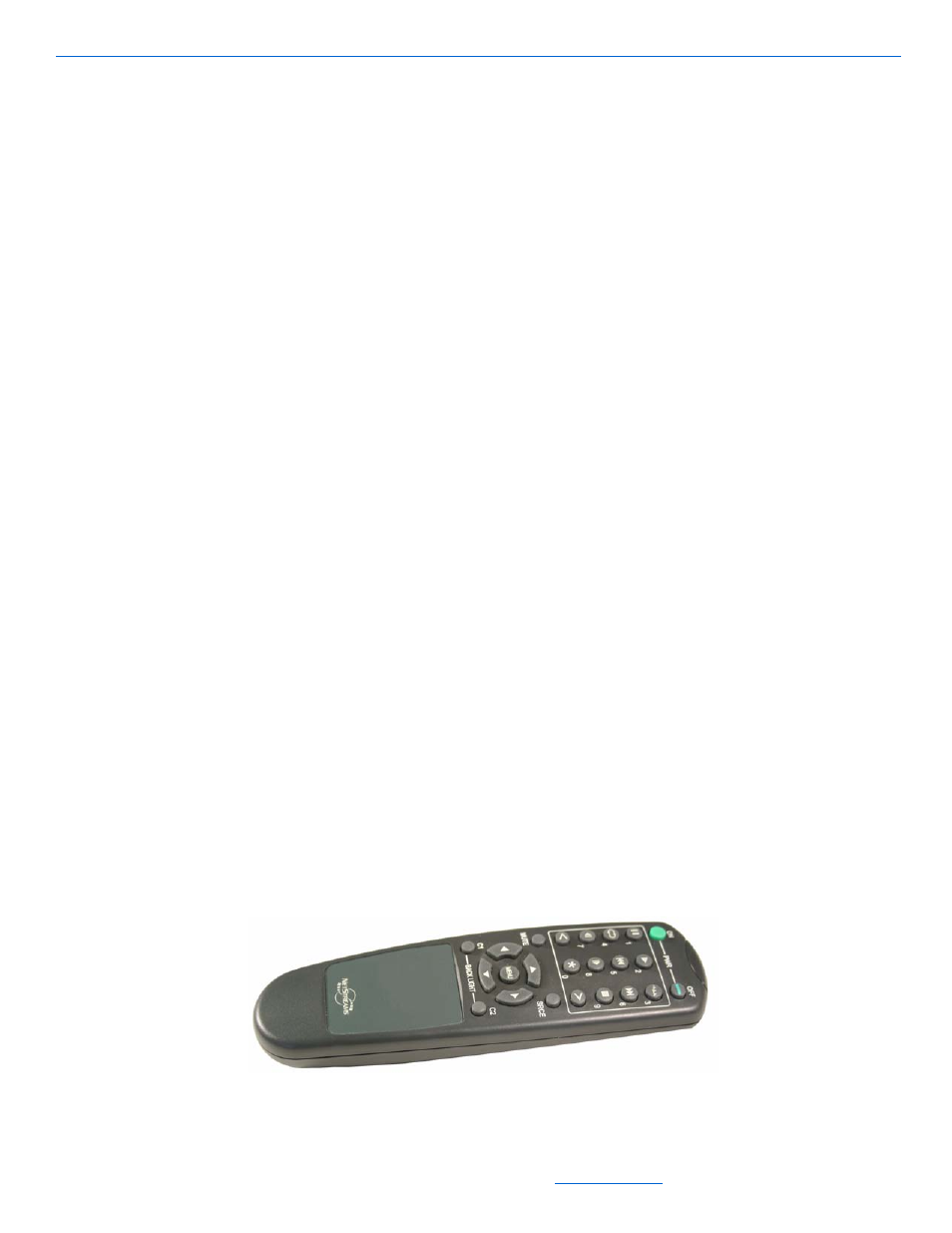

Figure 2-3 shows the Quartet remote control.
Figure 2-3
Quartet Remote MU4601RC
